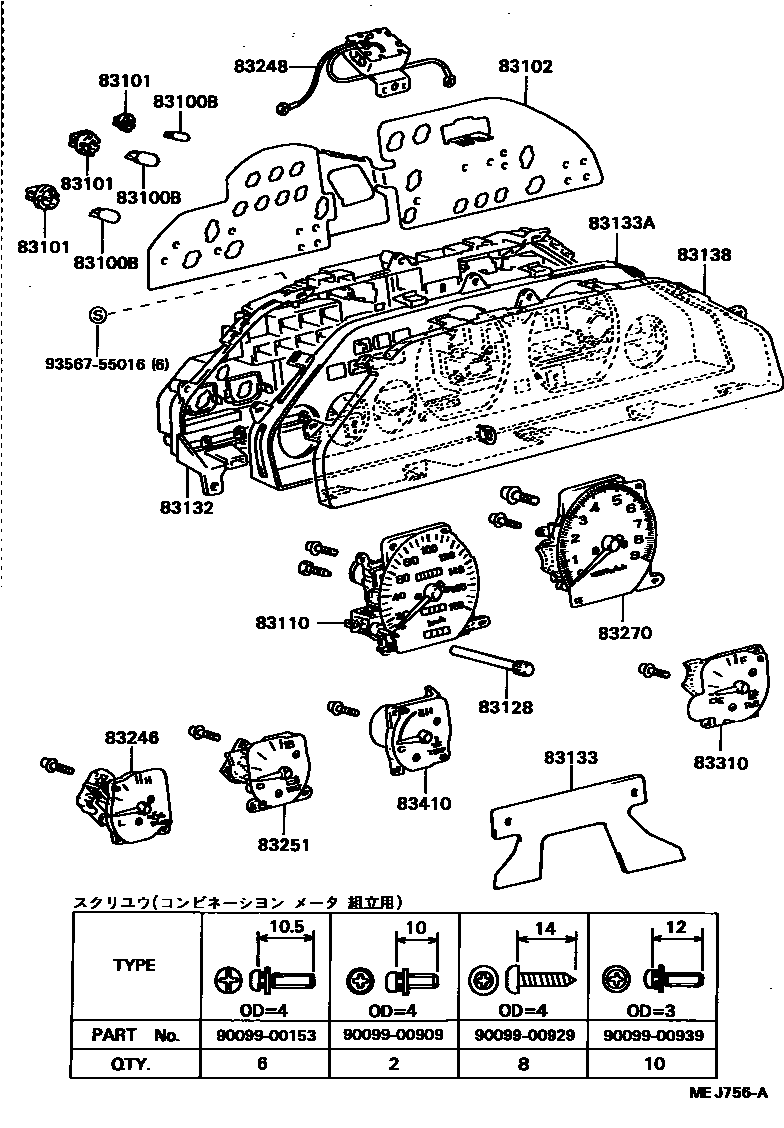

METER

0001 1 0002 1 0003 1 0004 1

83100BBULB, COMBINATION METER, NO.1

main83109-24020×4iST16#198708-198908

main83109-24040×4iST16#..F,G,X198708-198908

main90981-11018×12iST16#..S,X;ST162..5F..G; ST162..4FC..G198708-198805

main90981-11038×4iST162..4FC..X; ST163..F,X;ST162..4FC..G;ST162..5F..(G,X)198805-198908

main99132-12034×12iST160,163..F,L; ST162..5F..G198708-198908

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×7iST16#..G,S,X; ST160,163..F,L198708-198908

BULB:12V 3.4W

main83101-14040×8iST162..4FC; ST162..5F..G; ST162..5F..X; ST163..X;ST162..5F..(S,X)198805-198908

main83101-20090×4iST16#..F,G,X198708-198908

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1D380iST160,163..F,L198708-198908

main83247-1D400iST16#..S,X198708-198805

main83247-1D420iST162..5F..G198708-198908

main83247-1D440iST162..4FC..G198708-198805

main83247-1D460iST162..5F..(G,X)198805-198908

main83247-1D480iST162..4FC..(G,X)198805-198908

main83247-1D640iST163..X;ST162..5F..(S,X)198805-198908

main83247-1D730iST16#..5F..(F,G,X)198708-198908

main83247-1D750iST162..4FC..G;ST163..4FC..(F,X); ST162..4FC..X198805-198908

83110SPEEDOMETER ASSY

main83110-20820iST160,163..F,L198708-198908

main83110-20830iST16#..G,S,X198708-198908

83128KNOB, TRIP COUNTER

main83128-14650iST16#..G,S,X198708-198908

83132CASE, COMBINATION METER

main83132-1D680iST160,163..F,L198708-198908

main83132-1D700iST16#..S,X;ST162..5F..G198708-198805

main83132-1D720iST162..4FC..(S,X)198805-198908

main83132-1D810iST16#..F,G,X198708-198908

83133PLATE, COMBINATION METER, NO.1

main83133-1B510iST16#198708-198908

83133APLATE, COMBINATION METER, NO.2

main83133-1B090iST162..4FC..G198708-198908

main83133-1B390iST16#..5F..(F,G,X)198708-198908

main83133-1B430iST16#..4FC..(F,G,X)198708-198908

main83133-1B830iST160,163..F,L198708-198908

main83133-1B850iST16#..S,X198708-198805

main83133-1B870iST162..5F..X198805-198908

main83133-1B890iST16#..S,X198805-198908

83138GLASS, SPEEDOMETER

main83138-1B090iST16#198708-198908

main83138-1B110iST16#..F,G,X198708-198908

83246GAUGE, OIL PRESSURE RECEIVER

main83246-14630iST16#..S,X; ST162..G198708-198908

83248CHIME, SPEED WARNING

main86640-20100iST16#198708-198908

main86640-20110iST16#..F,G,X198708-198908

83251METER, VOLTAGE

main83251-14610iST16#..G,S,X198708-198908

83270TACHOMETER ASSY, ENGINE

main83242-14890iST163;ST162..5F..(S,X)198805-198908

main83242-14910iST162..5F..G198708-198908

main83242-14930iST162..4FC..G198708-198908

main83242-1D190iST162..5F..G198708-198908

main83242-1D210iST162..4FC..G198708-198908

main83242-1D350iST162..4FC..(S,X)198805-198908

main83242-1D370iST162..5F..X198805-198908

main83242-1D390iST162..4FC..X198805-198908

83310GAGE ASSY, FUEL RECEIVER

main83243-14870iST16#198708-198908

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-1B270iST16#198708-198908

9009900153

main90099-00153

9009900909

main90099-00909

9009900929

main90099-00929

9009900939

main90099-00939

9356755016

main93567-55016

20 parts on this diagram · 4 diagrams in section
