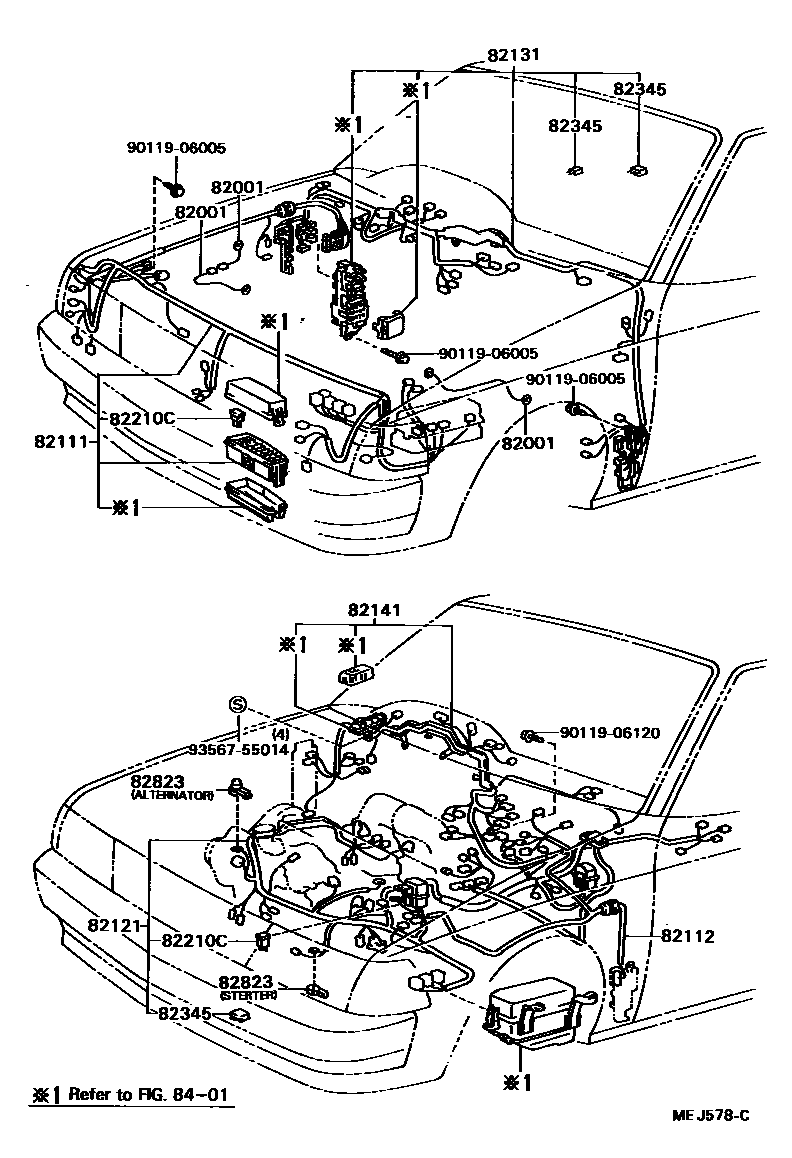

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

82001CABLE, BOND, NO.1

main90980-07205iST160198708-198805

ENGINE HANGER-CABLE

main90980-07206iST16#198708-198908

PS RESERVE TANK BLACKET-CABLE

main90980-07239iST162..G198708-198805

ENGINE HANGER-CABLE

main90980-07264iST16#198708-198908

START TOWER-TRANSMISSION

main90980-07280iST162,163..F,L,S,X198708-198908

ENGINE HANGER-CABLE

main90980-07307iST162..G198805-198908

ENGINE HANGER-CABLE

82111WIRE, ENGINE ROOM MAIN

main82111-20800iST160;ST162..G198708-198805

main82111-20810iST162..G198805-198908

main82111-20810iST162..G198708-198805

main82111-20820iST162..S,X198708-198805

sub82111-20821

main82111-20821iST162..X198805-198908

main82111-20830iST162..G198708-198908

main82111-2B730iST162..S,X198805-198908

main82111-2B740iST163;ST162..S198805-198908

82112WIRE, ENGINE ROOM, NO.2

main82112-20240iST160;ST162..G198708-198908

main82112-20240iST162..G198710-198805

main82112-20250iST162..S,X198708-198805

main82112-20251iST162..S,X198805-198908

main82112-20590iST160;ST162..G198710-198805

main82112-20600iST162..G198710-198805

main82112-20610iST162..S,X198805-198908

main82112-20620iST163198805-198908

82121WIRE, ENGINE

main82121-20580iST160..5F198708-198805

main82121-20590iST160..4FC198708-198805

main82121-20601iST162..5F..(S,X)198708-198805

main82121-20602iST162..5F..(S,X)198805-198808

main82121-20603iST162..5F..(S,X)198808-198908

main82121-2B281iST162..4FC..(S,X)198708-198805

main82121-2B292iST162..4FC..(S,X)198805-198808

main82121-2B293iST162..4FC..(S,X)198808-198908

main82121-2B300iST162..5F..G198708-198805

main82121-2B301iST162..5F..G198805-198808

main82121-2B302iST162..5F..G198808-198908

main82121-2B310iST162..4FC..G198708-198808

main82121-2B311iST162..4FC..G198808-198908

main82121-2D590iST163..5F198805-198908

main82121-2D600iST163..4FC198805-198908

main82121-2D610iST163..5F198805-198908

main82121-2D620iST163..4FC198805-198908

main82121-2D630iST162..5F..S198805-198808

main82121-2D630iST162..5F..S198805-198808

main82121-2D631iST162..5F..X198808-198908

main82121-2D631iST162..5F..S198808-198908

main82121-2D640iST162..4FC..X198805-198808

main82121-2D640iST162..4FC..X198805-198808

main82121-2D641iST162..4FC..X198808-198908

main82121-2D641iST162..4FC..S198808-198908

82131WIRE, COWL

main82131-2D030iST160..F198708-198805

sub82131-2D031

main82131-2D031iST163..F198805-198908

main82131-2D031iST163..L198808-198903

V

main82131-2D050iST162..G,S198708-198908

main82131-2D450iST162..G198708-198908

G LIMITED

main82131-2D450iST16#..X198708-198710

main82131-2D450iST162..X198808-198908

main82131-2D450iST162..X198710-198805

main82131-2D450iST162..X198805-198808

main82131-2D470iST162..S198808-198908

main82131-2D470iST162..S,X198805-198908

main82131-2D470iST162..G198708-198908

main82131-2D580iST160..L198708-198805

sub82131-2D581

main82131-2D581iST163..L198805-198908

main82131-2G840iST163..L198903-198908

V

main82131-2G840iST16#..X198710-198908

82141WIRE, INSTRUMENT PANEL

main82141-20520iST160..4FC;ST162..S,X;ST162..5F..G;ST160..5F..(F,X)198708-198710

main82141-20521iST162..S,X;ST160..4FC;ST160..5F..(F,X)198710-198908

main82141-20610iST162..X198805-198908

main82141-20610iST162..4FC..G198708-198908

main82141-20610iST162..S198805-198908

main82141-20620iST16#..F,G,X198708-198908

main82141-20840iST160..5F..L198708-198805

main82141-20890iST162..4FC..(S,X)198805-198908

82210CFUSIBLE LINK

main90982-08188iST16#198708-198908

main90982-08189iST16#198708-198908

main90982-08190iST162..S198708-198908

main90982-08223iST16#198708-198908

main90982-08246iST162,163..F,L,S,X198708-198908

main90982-08253iST160198708-198805

sub90982-08203

main90982-09002iST162..4FC..G198708-198908

82345DIODE

main82345-12020iST163..L198708-198908

NO.1

main82345-12050iST16#198708-198908

NO.2

main82345-22051iST163..4FC198708-198908

NO.3

main82345-32020iST163..L198708-198908

NO.4

82823CAP, TERMINAL, NO.1

main82823-20030iST16#..F,L,S,X198708-198908

STARTER

main82823-22050iST160198708-198805

ALTERNATOR

main82823-22060iST162,163198708-198908

ALTERNATOR

8401

9011906005

main90119-06005

9011906120

main90119-06120

9356755014

main93567-55014

13 parts on this diagram · 7 diagrams in section
