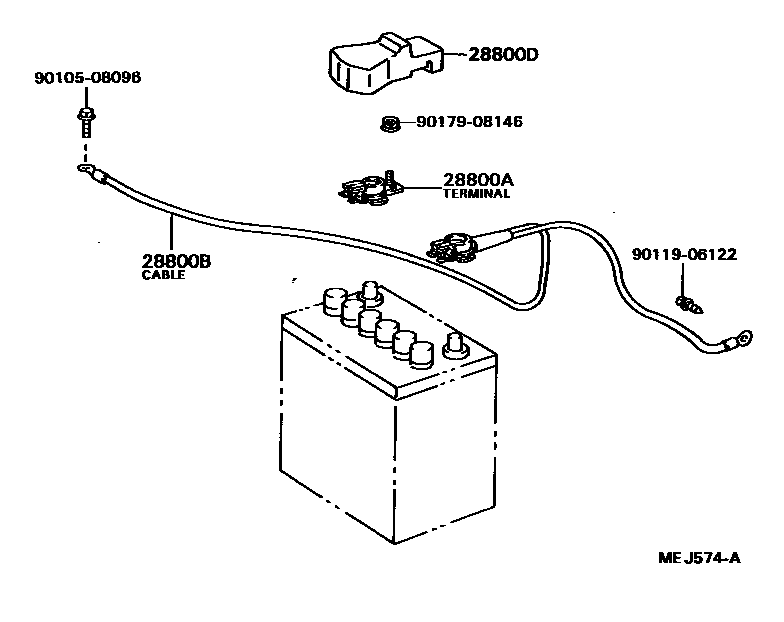

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05028i1SILU,3S#,4SFI..ST16#198708-198908

main90982-05030i3SGELU..ST162..4FC198708-198908

28800BCABLE, BATTERY TO GROUND

main82123-20080i1SILU,3S#..ST16#198708-198805

main82123-20081i3S#,4SFI..ST16#198805-198908

main82123-20090i3SGELU..ST162..4FC198708-198805

main82123-20091i3SGELU..ST162..4FC198805-198908

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12190i1SILU..ST160; 3SGELU..ST162198708-198908

9010508096

main90105-08096

9011906122

main90119-06122

9017908146

main90179-08146

6 parts on this diagram · 1 diagram in section
