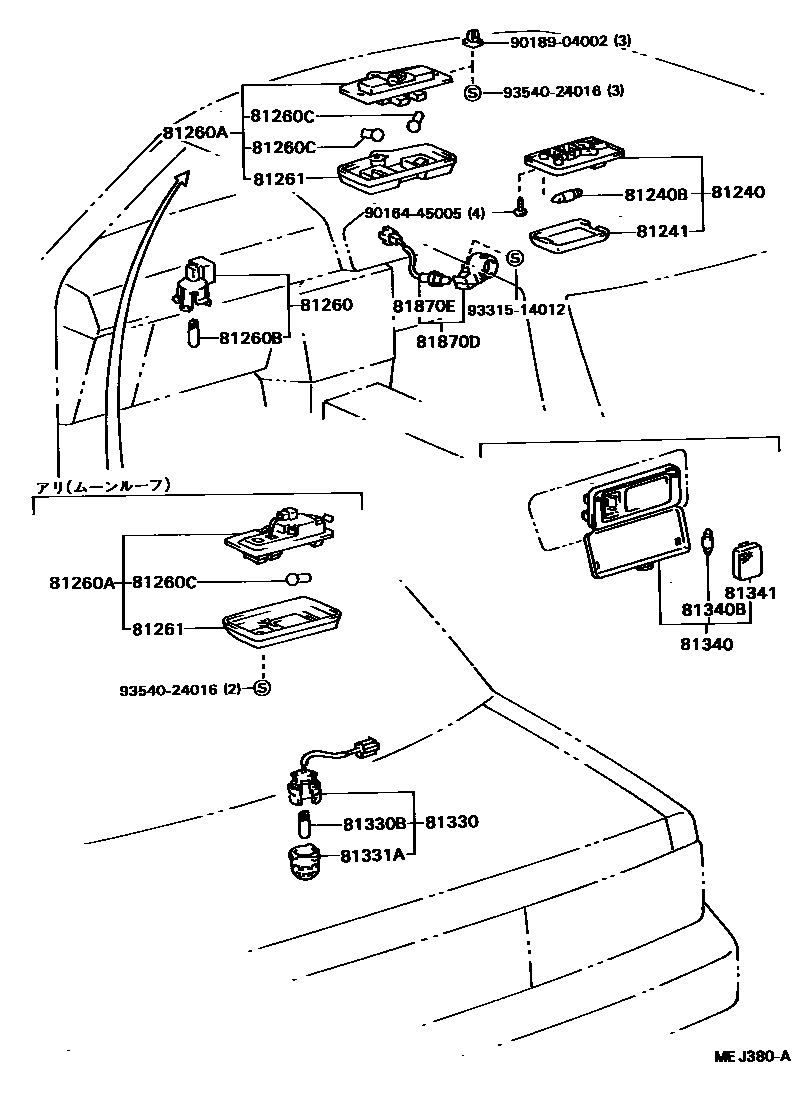

Toyota 251110 — INTERIOR LAMP
81240BBULB, ROOM LAMP, NO.1
81260ALAMP ASSY, MAP
81260BBULB(FOR GLOVE BOX)
81260CBULB(FOR MAP LAMP)
81330BBULB, LUGGAGE COMPARTMENT LAMP
81331ACOVER, LUGGAGE COMPARTMENT LAMP
81340BBULB (FOR VANITY LAMP)
81341LENS, VANITY LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
9016445005
9018904002
9331514012
9354024016
20 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota 251110
This section contains 20 genuine Toyota parts for the INTERIOR LAMP system of the Toyota 251110. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, GLOVE BOX, LAMP ASSY, MAP.
