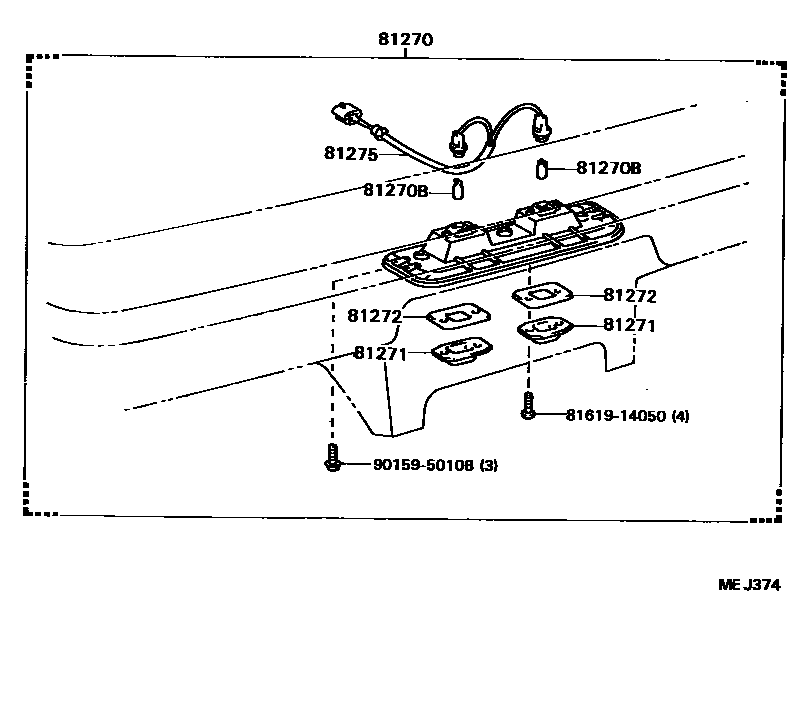

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-80035iST16#198708-198908

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iST16#198708-198908

81271LENS, LICENSE PLATE LAMP

main81271-24010×2iST16#198708-198908

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20280×2iST16#198708-198908

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-20280iST16#198708-198908

8161914050

main81619-14050

9015950108

main90159-50108

7 parts on this diagram · 1 diagram in section
