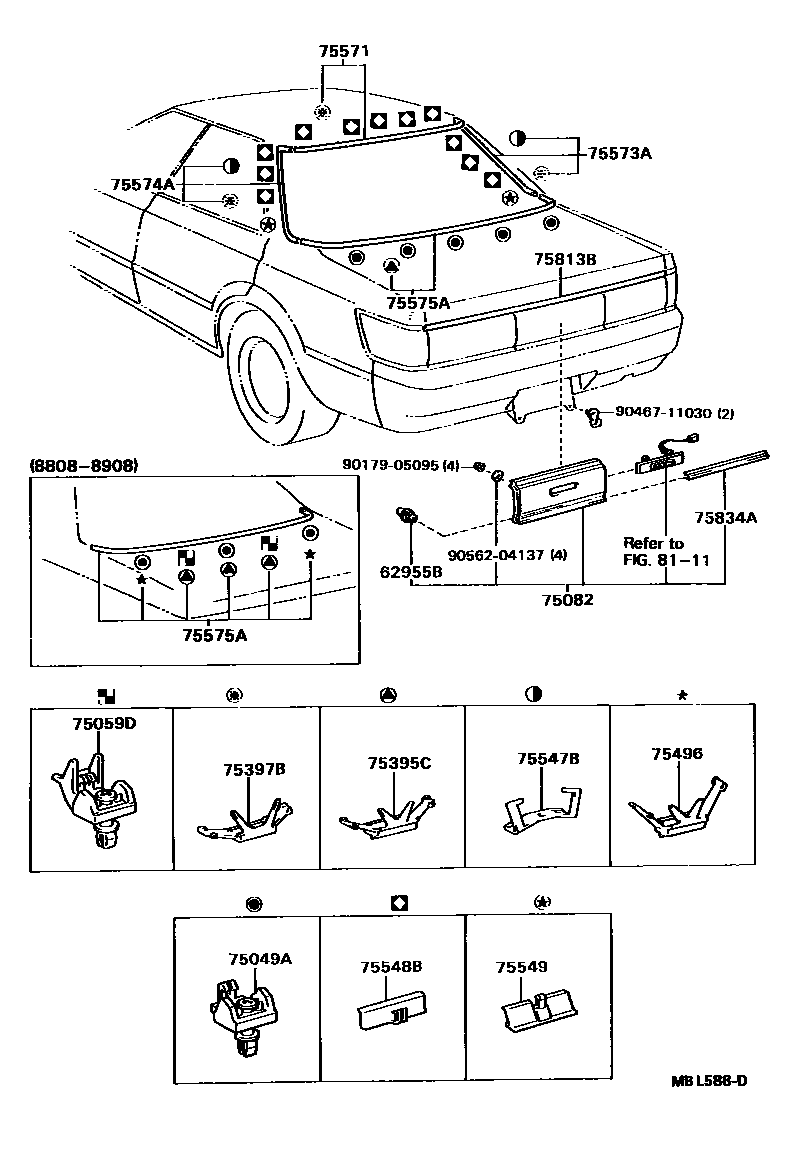

REAR MOULDING

62955BRETAINER, BACK DOOR GARNISH

main62955-20040×2iST16#198708-198908

75049ACLIP SUB-ASSY, OUTSIDE MOULDING, NO.2

main75049-20030×5iST16#198708-198808

75059DCLIP SUB-ASSY, OUTSIDE MOULDING, NO.3

main75059-20030×2iST16#198808-198908

75082PANEL SUB-ASSY, LOWER BACK FINISH, CENTER

main75082-20180iST16#..X; ST162..G198708-198908

G LIMITED

main75082-20190iST16#..F,G,L,S198708-198908

75395CCLIP, OUTSIDE MOULDING, NO.1

main75395-20070×5iST16#198708-198808

75397BCLIP, BACK WINDOW MOULDING, NO.3

main75397-20050×2iST16#198708-198908

75496CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1

main75497-20010×2iST16#198808-198908

75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-20030×11iST16#198708-198908

75548BFASTENER, BACK WINDOW OUTSIDE MOULDING

main75548-20060×11iST16#198708-198908

75549FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2

main75549-20100×2iST16#198708-198908

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-20210iST16#198708-198908

75573AMOULDING, BACK WINDOW, OUTSIDE RH

main75501-20040iST16#198708-198908

75574AMOULDING, BACK WINDOW, OUTSIDE LH

main75502-20020iST16#198708-198908

75575AMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-20170iST16#198708-198908

75813BMOULDING, LUGGAGE COMPARTMENT DOOR

main75813-20040iST16#198708-198908

75834AMOULDING, LOWER BACK FINISH PANEL

main75834-20060iST16#198708-198908

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

9017905095

main90179-05095

9046711030

main90467-11030

9056204137

main90562-04137

20 parts on this diagram · 1 diagram in section
