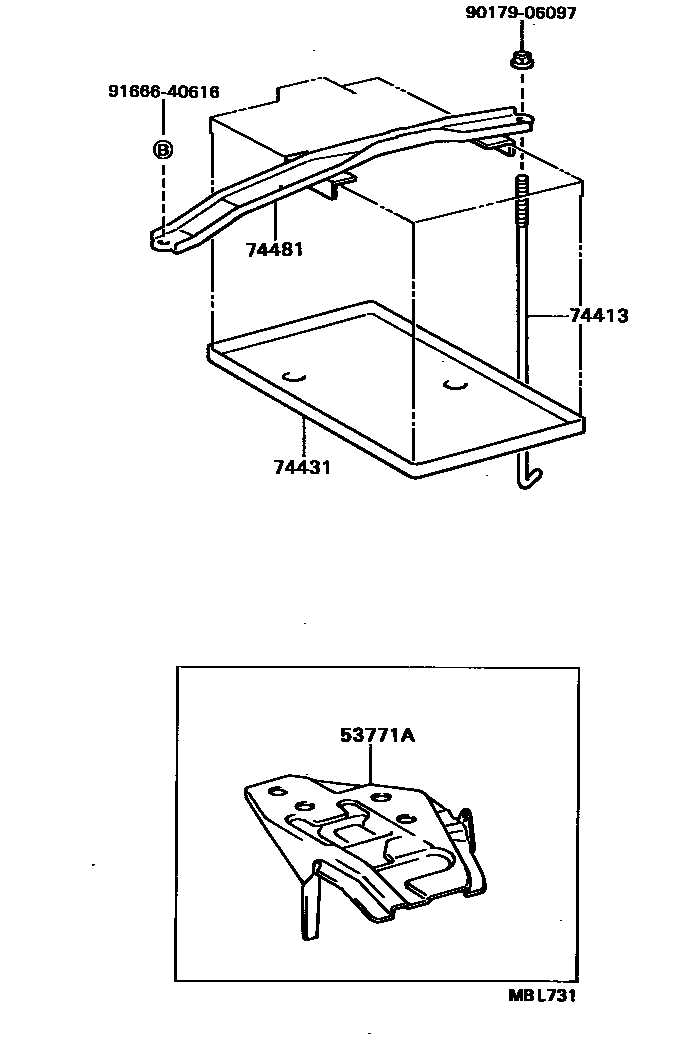

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-20030iST162..G198708-198710

74413BOLT, BATTERY CLAMP

main74451-14010iST160;ST162..G198708-198908

main74451-30060iST162,163..F,L,S,X198708-198908

74431TRAY, BATTERY

main74431-14010iST160..5F;ST162..5F..G198708-198908

201X133

main74431-14020iST160..4FC;ST162..4FC..G198708-198908

main74431-14030iST162..5F..(S,X); ST162..G198708-198805

main74431-14050iST160..5F;ST162..5F..G; ST162,163..5F..(F,L,S,X)198708-198908

188X127

74481CLAMP, BATTERY HOLD DOWN

main74404-20160iST162,163..5F..(F,L,S,X)198708-198908

main74404-20180iST162..4FC..G198708-198805

main74404-20190iST160;ST162..G198708-198908

main74404-20200iST162,163..4FC..(F,L,S,X)198708-198908

9017906097

main90179-06097

9166640616

main91666-40616

6 parts on this diagram · 1 diagram in section
