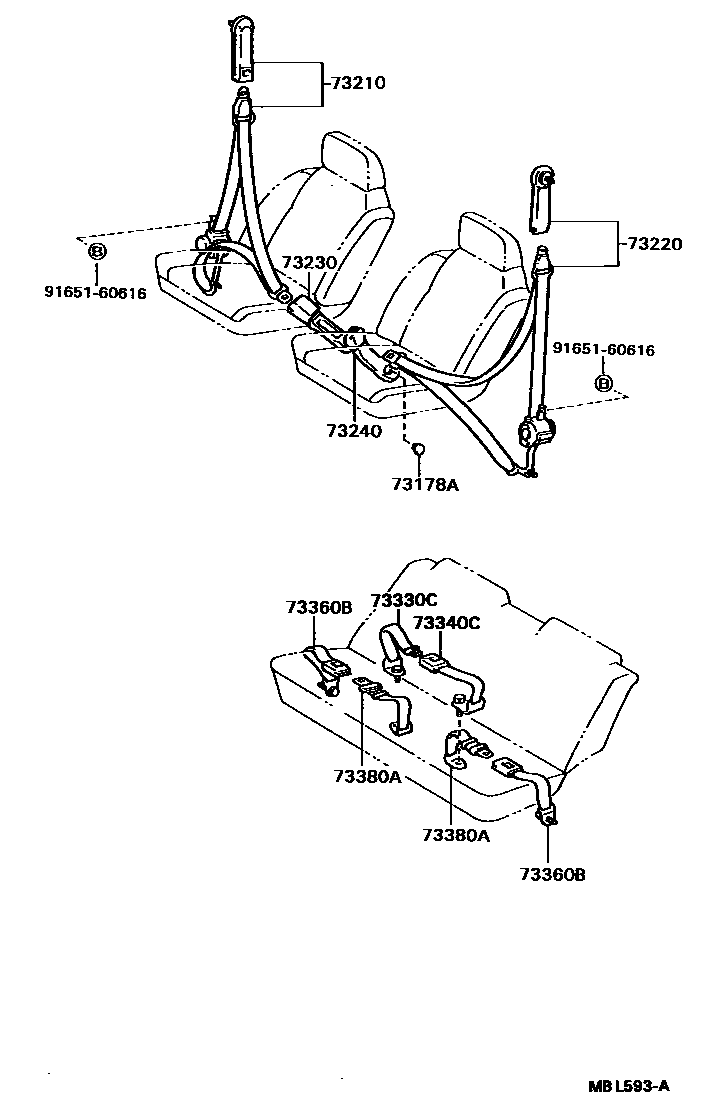

SEAT BELT & CHILD RESTRAINT SEAT

73178ACAP, SEAT BELT ANCHOR COVER

main73178-16010-11×2iST16#198708-198908

BLACK,TRIM2#

main73178-16010-34×2iST16#198708-198908

BLUE,TRIM8#

main73178-16010-56×2iST16#198708-198908

SABLE,SABLE,TRIM4#

main73178-16010-E0×2iST162..G,X; ST163..L198808-198908

DARK BEIGE,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-20311-01iST16#198708-198908

BLACK,TRIM2#

main73210-20311-04iST16#198708-198908

DEEP BLUE,TRIM8#

main73210-20311-16iST16#198708-198908

SABLE,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-20201-01iST16#198708-198908

BLACK,TRIM2#

main73220-20201-04iST16#198708-198908

DEEP BLUE,TRIM8#

main73220-20201-16iST16#198708-198908

SABLE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-20390-01iST16#198708-198908

BLACK,TRIM2#

main73230-20390-04iST16#198708-198908

DEEP BLUE,TRIM8#

main73230-20390-06iST16#198708-198908

SABLE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-20390-01iST16#198708-198908

BLACK,TRIM2#

main73230-20390-04iST16#198708-198908

DEEP BLUE,TRIM8#

main73230-20390-06iST16#198708-198908

SABLE,TRIM4#

73330CBELT ASSY, REAR SEAT LAP TYPE, CENTER RH

main73330-20220-01iST16#198708-198908

BLACK,TRIM2#

main73330-20220-04iST16#198708-198908

DEEP BLUE,TRIM8#

main73330-20220-06iST16#198708-198908

SABLE,TRIM4#

73340CBELT ASSY, REAR SEAT LAP TYPE, CENTER LH

main73340-20080-01iST16#198708-198908

BLACK,TRIM2#

main73340-20080-04iST16#198708-198908

DEEP BLUE,TRIM8#

main73340-20080-06iST16#198708-198908

SABLE,TRIM4#

73360BBELT ASSY, REAR SEAT, OUTER

main73360-20130-01×2iST16#198708-198908

BLACK,TRIM2#

main73360-20130-04×2iST16#198708-198908

DEEP BLUE,TRIM8#

main73360-20130-16×2iST16#198708-198908

SABLE,SABLE,TRIM4#

73380ABELT ASSY, REAR SEAT, INNER

main73380-20090-01×2iST16#198708-198908

BLACK,TRIM2#

main73380-20090-04×2iST16#198708-198908

DEEP BLUE,TRIM8#

main73380-20090-16×2iST16#198708-198908

SABLE,SABLE,TRIM4#

9165160616

main91651-60616

10 parts on this diagram · 1 diagram in section
