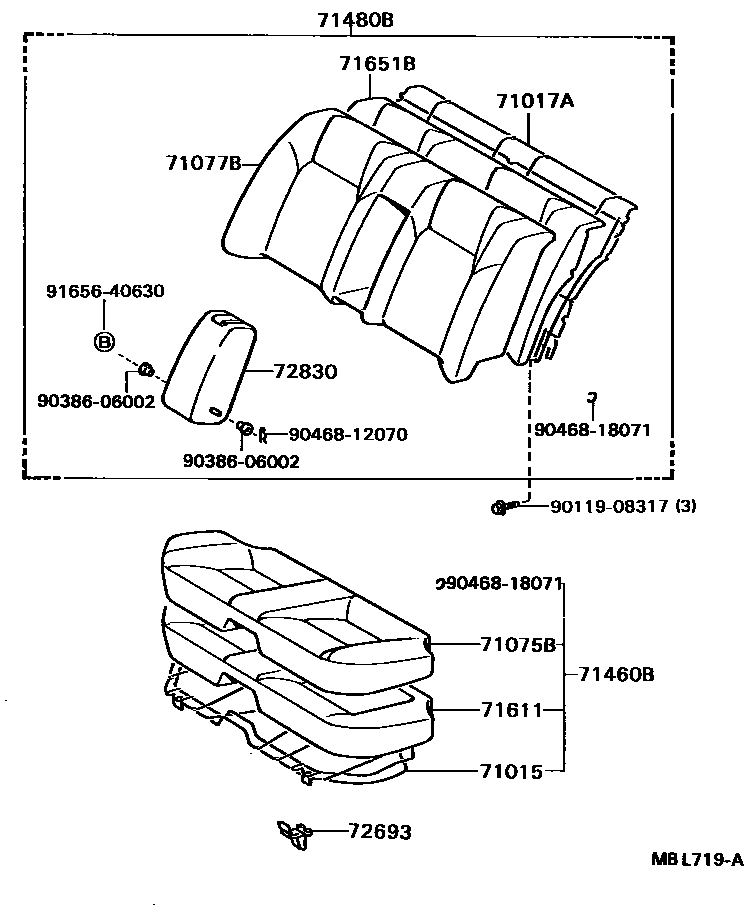

REAR SEAT & SEAT TRACK
71015FRAME SUB-ASSY, REAR SEAT CUSHION
71017AFRAME SUB-ASSY, REAR SEATBACK
G LIMITED
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
BLACK,TRIM2#
DEEP BLUE,TRIM8#
SABLE,SABLE,TRIM4#
V,GRAY,GRAY,TRIM2#
DEEP BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM2#
DEEP BLUE,TRIM8#
SABLE,TRIM4#
DEEP BLUE,TRIM8#
SABLE,TRIM4#
X-LIMITED,BROWN,TRIM4#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
BLACK,TRIM2#
DEEP BLUE,TRIM8#
SABLE,TRIM4#
V,GRAY,GRAY,TRIM2#
V,DEEP BLUE,TRIM8#
V,SABLE,TRIM4#
GRAY,TRIM2#
DEEP BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM2#
DEEP BLUE,TRIM8#
SABLE,TRIM4#
G LIMITED,GRAY,TRIM2#
G LIMITED,DEEP BLUE,TRIM8#
G LIMITED,SABLE,TRIM4#
X-LIMITED,SABLE,TRIM4#
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
BLACK,TRIM2#
DEEP BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM2#
DEEP BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM2#
V,DEEP BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM2#
DEEP BLUE,TRIM8#
SABLE,TRIM4#
X-LIMITED,SABLE,TRIM4#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
BLACK,TRIM2#
DEEP BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM2#
DEEP BLUE,TRIM8#
SABLE,TRIM4#
V,GRAY,GRAY,TRIM2#
DEEP BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM2#
DEEP BLUE,TRIM8#
SABLE,TRIM4#
G LIMITED,GRAY,TRIM2#
G LIMITED,DEEP BLUE,TRIM8#
G LIMITED,SABLE,TRIM4#
X-LIMITED,SABLE,TRIM4#
71611PAD, REAR SEAT CUSHION
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
G LIMITED
72693HOOK, REAR SEAT CUSHION LOCK
72830ARMREST ASSY, REAR SEAT, CENTER
GRAY,TRIM2#
V,DEEP BLUE,DEEP BLUE,TRIM8#
DARK BEIGE,TRIM4#
BLACK,TRIM2#
DEEP BLUE,TRIM8#
SABLE,TRIM4#
X-LIMITED,SABLE,SABLE,TRIM4#
9011908317
main90119-08317
9038606002
main90386-06002
9046812070
main90468-12070
9046818071
main90468-18071
9165640630
main91656-40630
15 parts on this diagram · 1 diagram in section
