FRONT SEAT & SEAT TRACK

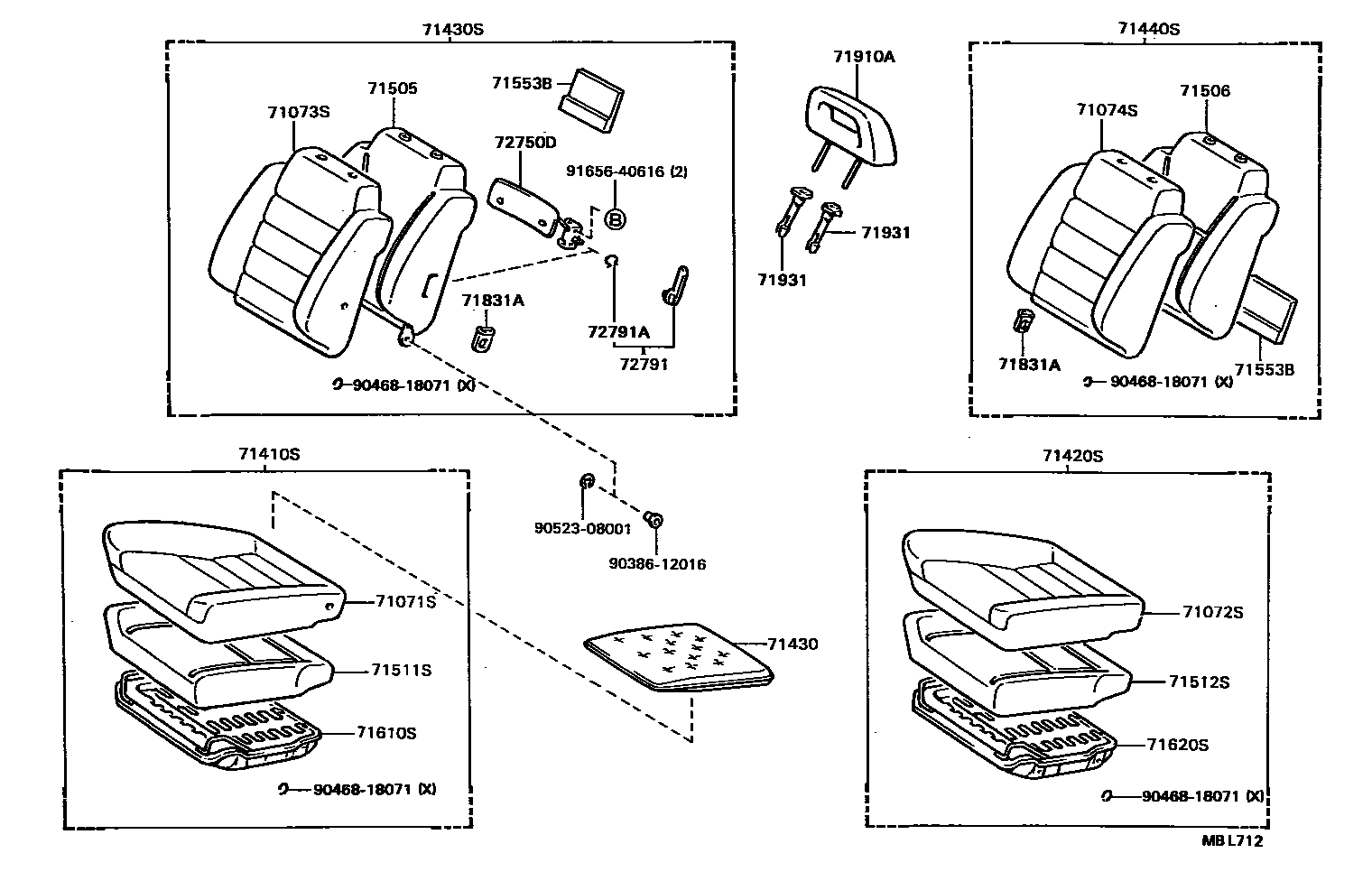

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-2B462-03i198708-198908
GRAY,TRIM2#
main71071-2B462-04i198708-198908
DEEP BLUE,TRIM8#
main71071-2B462-06i198708-198908
SABLE,TRIM4#
main71071-2B491-03i198708-198908
GRAY,TRIM2#
main71071-2B491-04i198708-198908
DEEP BLUE,TRIM8#
main71071-2B491-06i198708-198908
SABLE,TRIM4#
main71071-2B512-03i198808-198908
V,GRAY,GRAY,TRIM2#
main71071-2B512-04i198808-198908
V,DEEP BLUE,TRIM8#
main71071-2B512-06i198708-198908
SABLE,TRIM4#
main71071-2B811-03i198708-198908
G LIMITED,GRAY,TRIM2#
main71071-2B811-04i198708-198908
G LIMITED,DEEP BLUE,TRIM8#
main71071-2B811-06i198708-198908
G LIMITED,SABLE,TRIM4#
main71071-2B851-01i198708-198908
BLACK,TRIM2#
main71071-2B851-04i198708-198908
DEEP BLUE,TRIM8#
main71071-2B851-06i198708-198908
SABLE,TRIM4#
main71071-2D120-06i198808-198908
X-LIMITED,SABLE,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-2B121-01i198708-198908
BLACK,TRIM2#
main71072-2B121-04i198708-198908
DEEP BLUE,TRIM8#
main71072-2B121-06i198708-198908
SABLE,TRIM4#
main71072-2B171-03i198808-198908
V,GRAY,GRAY,TRIM2#
main71072-2B171-04i198708-198908
DEEP BLUE,TRIM8#
main71072-2B171-06i198708-198908
SABLE,TRIM4#
main71072-2B191-03i198708-198908
GRAY,TRIM2#
main71072-2B191-04i198708-198908
DEEP BLUE,TRIM8#
main71072-2B191-06i198708-198908
SABLE,TRIM4#
main71072-2B241-03i198708-198908
GRAY,TRIM2#
main71072-2B241-04i198708-198908
DEEP BLUE,TRIM8#
main71072-2B241-06i198708-198908
SABLE,TRIM4#
main71072-2D040-06i198808-198908
X-LIMITED,SABLE,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-2B362-03i198708-198908
GRAY,TRIM2#
main71073-2B362-04i198708-198908
DEEP BLUE,TRIM8#
main71073-2B362-06i198708-198908
SABLE,TRIM4#
main71073-2B421-03i198801-198908
main71073-2B421-04i198708-198908
DEEP BLUE,TRIM8#
main71073-2B421-06i198708-198908
SABLE,TRIM4#
main71073-2B462-03i198808-198908
V,GRAY,GRAY,TRIM2#
main71073-2B462-04i198708-198908
DEEP BLUE,TRIM8#
main71073-2B462-06i198708-198908
SABLE,TRIM4#
main71073-2B742-01i198708-198908
BLACK,TRIM2#
main71073-2B742-04i198708-198908
DEEP BLUE,TRIM8#
main71073-2B742-06i198708-198908
SABLE,TRIM4#
main71073-2D130-06i198808-198908
X-LIMITED,SABLE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-2B111-03i198708-198908
GRAY,TRIM2#
main71074-2B111-04i198708-198908
DEEP BLUE,TRIM8#
main71074-2B111-06i198808-198908
V,SABLE,TRIM4#
main71074-2B221-03i198708-198908
GRAY,TRIM2#
main71074-2B221-04i198708-198908
DEEP BLUE,TRIM8#
main71074-2B221-06i198708-198908
SABLE,TRIM4#
main71074-2B231-03i198708-198908
GRAY,TRIM2#
main71074-2B231-04i198708-198908
DEEP BLUE,TRIM8#
main71074-2B231-06i198708-198908
SABLE,TRIM4#
main71074-2B411-01i198708-198908
BLACK,TRIM2#
main71074-2B411-04i198708-198908
DEEP BLUE,TRIM8#
main71074-2B411-06i198708-198908
SABLE,TRIM4#
main71074-2B700-06i198808-198908
X-LIMITED,SABLE,TRIM4#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-2B202-03i198708-198908
GRAY,TRIM2#
main71410-2B202-04i198708-198908
DEEP BLUE,TRIM8#
main71410-2B202-06i198708-198908
SABLE,TRIM4#
main71410-2B501-03i198708-198908
GRAY,TRIM2#
main71410-2B501-04i198708-198908
DEEP BLUE,TRIM8#
main71410-2B501-06i198708-198908
SABLE,TRIM4#
main71410-2B581-03i198708-198908
G LIMITED,GRAY,TRIM2#
main71410-2B581-04i198708-198908
G LIMITED,DEEP BLUE,TRIM8#
main71410-2B581-06i198708-198908
G LIMITED,SABLE,TRIM4#
main71410-2B612-03i198808-198908
V,GRAY,GRAY,TRIM2#
main71410-2B612-04i198808-198908
V,DEEP BLUE,TRIM8#
main71410-2B612-06i198808-198908
V,SABLE,TRIM4#
main71410-2B752-01i198708-198908
BLACK,TRIM2#
main71410-2B752-04i198708-198908
DEEP BLUE,TRIM8#
main71410-2B752-06i198708-198908
SABLE,TRIM4#
main71410-2D230-06i198808-198908
X-LIMITED,SABLE,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-20861-03i198708-198908
GRAY,TRIM2#
main71420-20861-04i198708-198908
DEEP BLUE,TRIM8#
main71420-20861-06i198708-198908
SABLE,TRIM4#
main71420-20881-03i198708-198908
GRAY,TRIM2#
main71420-20881-04i198708-198908
DEEP BLUE,TRIM8#
main71420-20881-06i198708-198908
SABLE,TRIM4#
main71420-2B101-03i198708-198908
GRAY,TRIM2#
main71420-2B101-04i198808-198908
V,DEEP BLUE,TRIM8#
main71420-2B101-06i198708-198908
SABLE,TRIM4#
main71420-2B211-01i198708-198908
BLACK,TRIM2#
main71420-2B211-04i198708-198908
DEEP BLUE,TRIM8#
main71420-2B211-06i198708-198908
SABLE,TRIM4#
main71420-2B560-06i198808-198908
X-LIMITED,SABLE,TRIM4#
71430CUSHION ASSY, PASSENGER SEAT
main71430-2B851-01i198708-198908
BLACK&GRAY,TRIM2#
main71430-2B851-04i198708-198908
DEEP BLUE,TRIM8#
main71430-2B851-06i198708-198908
SABLE,TRIM4#
main71430-2D610-06i198809-198908
X-LIMITED,SABLE,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-2B192-03i198708-198908
GRAY,TRIM2#
main71430-2B192-04i198708-198908
DEEP BLUE,TRIM8#
main71430-2B192-06i198708-198908
SABLE,TRIM4#
main71430-2B471-03i198708-198908
GRAY,TRIM2#
main71430-2B471-04i198708-198908
DEEP BLUE,TRIM8#
main71430-2B471-06i198708-198908
SABLE,TRIM4#
main71430-2B491-03i198708-198908
G LIMITED,GRAY,TRIM2#
main71430-2B491-04i198708-198908
G LIMITED,DEEP BLUE,TRIM8#
main71430-2B491-06i198708-198908
G LIMITED,SABLE,TRIM4#
main71430-2B572-03i198808-198908
V,GRAY,GRAY,TRIM2#
main71430-2B572-04i198708-198908
DEEP BLUE,TRIM8#
main71430-2B572-06i198708-198908
SABLE,TRIM4#
main71430-2B642-01i198708-198908
BLACK,TRIM2#
main71430-2B642-04i198708-198908
DEEP BLUE,TRIM8#
main71430-2B642-06i198708-198908
SABLE,TRIM4#
main71430-2D300-06i198808-198908
X-LIMITED,SABLE,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-2B271-03i198708-198908
GRAY,TRIM2#
main71440-2B271-04i198708-198908
DEEP BLUE,TRIM8#
main71440-2B271-06i198708-198908
SABLE,TRIM4#
main71440-2B291-03i198708-198908
GRAY,TRIM2#
main71440-2B291-04i198708-198908
DEEP BLUE,TRIM8#
main71440-2B291-06i198708-198908
SABLE,TRIM4#
main71440-2B321-03i198708-198908
GRAY,TRIM2#
main71440-2B321-04i198708-198908
DEEP BLUE,TRIM8#
main71440-2B321-06i198708-198908
SABLE,TRIM4#
main71440-2B391-01i198708-198908
BLACK,TRIM2#
main71440-2B391-04i198708-198908
DEEP BLUE,TRIM8#
main71440-2B391-06i198708-198908
SABLE,TRIM4#
main71440-2B830-06i198808-198908
X-LIMITED,SABLE,TRIM4#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-20011i198708-198908
main71505-20021i198708-198908
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71506-20010i198708-198908
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-20400i198708-198908
main71511-20410i198708-198908
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-20400i198708-198908
main71511-20410i198708-198908
71553BPAD, FRONT SEATBACK, B
main71553-20110i198708-198908
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-20350i198708-198908
main71610-20380i198708-198908
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-20270i198708-198908
main71610-20300i198708-198908
71831ACOVER, FRONT SEAT HINGE
main71831-10010i198708-198908
71910AHEADREST ASSY, FRONT SEAT
main71910-20541-01×2i198801-198908
main71910-20541-04×2i198708-198908
DEEP BLUE,TRIM8#
main71910-20541-06×2i198708-198908
SABLE,TRIM4#
main71910-20691-01×2i198708-198908
BLACK,TRIM2#
main71910-20691-04×2i198708-198908
DEEP BLUE,TRIM8#
main71910-20691-06×2i198708-198908
SABLE,TRIM4#
main71910-20890-03i198808-198908
RH,V,GRAY,GRAY,TRIM2#
main71910-20890-04i198808-198908
RH,V,DEEP BLUE,DEEP BLUE,TRIM8#
main71910-20890-06i198708-198908
main71910-2B010-01×2i198708-198908
BLACK,TRIM2#
main71910-2B010-04×2i198708-198908
DEEP BLUE,TRIM8#
main71910-2B010-06×2i198708-198908
SABLE,TRIM4#
main71910-2B260-06×2i198808-198908
X-LIMITED,SABLE,SABLE,TRIM4#
main71920-20160-03i198708-198908
main71920-20160-04i198708-198908
main71920-20160-06i198708-198908
71931SUPPORT, FRONT SEAT HEADREST
main71930-10060-01×2i198708-198908
main71930-10060-16×2i198708-198908
main71930-10060-44×2i198708-198901
main71930-14080-01×2i198708-198908
main71930-14080-06×2i198808-198908
main71930-14080-14×2i198708-198908
main71931-10010-01×2i198708-198908
main71931-10010-16×2i198708-198908
main71931-10010-44×2i198708-198901
main71931-14010-01×2i198708-198908
main71931-14010-06×2i198708-198908
main71931-14010-14×2i198708-198908
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-20050i198808-198908
main72750-20070i198808-198908
X-LIMITED
72791LEVER, LUMBAR SUPPORT
main72791-20030-01i198708-198908
BLACK,TRIM2#
main72791-20030-04i198708-198908
DEEP BLUE,TRIM8#
main72791-20030-16i198808-198908
SABLE,SABLE,TRIM4#
72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
main90520-01274i198808-198908
9038612016
main90386-12016
9046818071
main90468-18071
9052308001
main90523-08001
9165640616
main91656-40616

26 parts on this diagram · 3 diagrams in section
