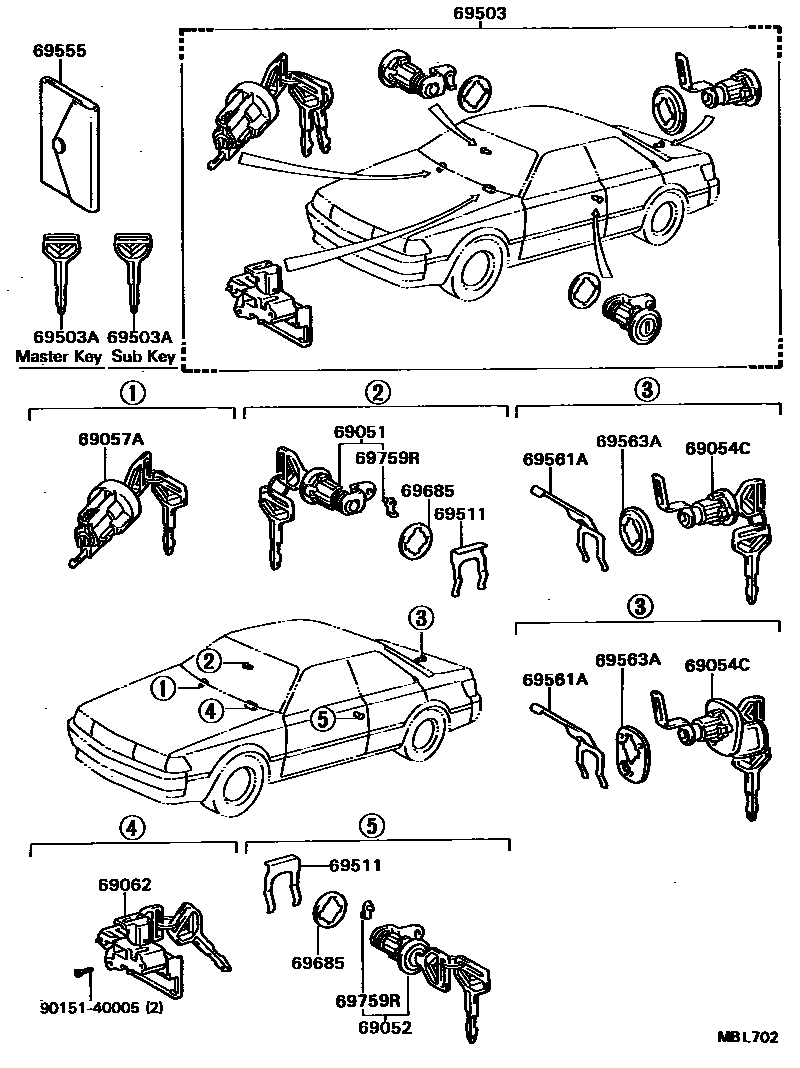

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-20110iST16#198708-198908

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-20120iST16#198708-198908

69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-20160iST16#..F,G,L,S198708-198908

sub69055-20210

main69055-20280iST162..G198708-198908

G LIMITED

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20110iST16#..G,L,S198708-198908

sub69057-20120

main69057-20120iST16#..F,X198708-198908

sub69057-32121

main69057-20120iST16#..L,S198708-198908

sub69057-32121

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-20060iST16#198708-198908

69503CYLINDER SET, LOCK

main69005-20190iST162..G,S198708-198908

main69005-20190iST160,163..F198708-198908

main69005-20200iST16#..G,L,S198708-198908

main69005-20560iST162..G198708-198908

G LIMITED

69503AKEY, BLANK

main90999-00085iST16#198708-198908

main90999-00094iST16#198708-198908

main90999-00106iST16#198708-198908

sub90999-00212

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iST16#198708-198908

69555COVER, KEY

main69555-20010iST16#198708-198908

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-20060iST16#198708-198908

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-12050iST16#..F,G,L,S198801-198908

main69563-20020iST16#..X198708-198908

G LIMITED

main69563-32010iST16#..F,G,L,S198708-198801

69685PAD, LOCK CYLINDER

main69513-32010iST16#198708-198908

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040iST16#198708-198908

main69759-30050iST16#198708-198908

9015140005

main90151-40005

14 parts on this diagram · 1 diagram in section
