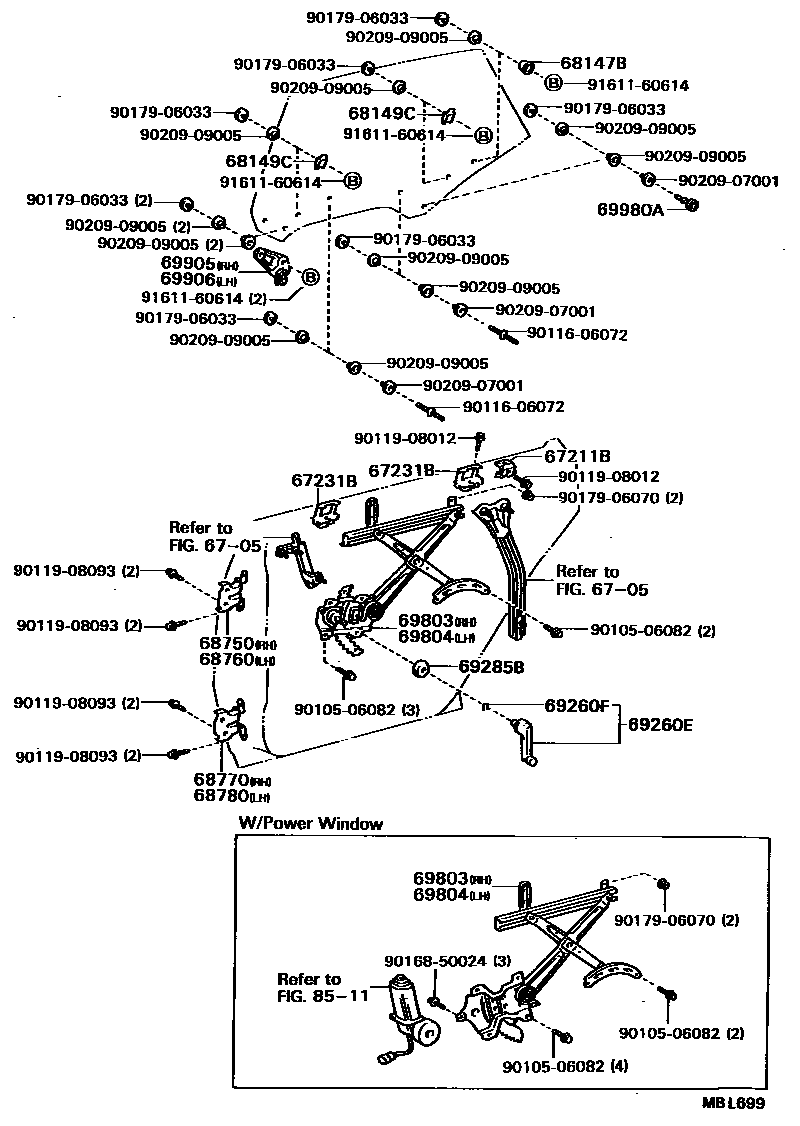

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

67211BSTOP, REAR DOOR WINDOW, UPPER

main67211-20020×4iST16#198708-198908

67231BSUPPORT, REAR DOOR TRIM

main67231-20030×4iST16#198708-198908

68147BSTOP, REAR DOOR GLASS, UPPER

main68147-20020×2iST16#198708-198908

68149CSTABILIZER, REAR DOOR GLASS MALE

main68149-20010×4iST16#198708-198908

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20050iST16#198708-198908

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20040iST16#198708-198908

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-20040iST16#198708-198908

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-20040iST16#198708-198908

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-22030-01×2iST16#..G,L,S198708-198908

NEW BLACK,NEW BLACK,TRIM2#

main69260-22030-04×2iST16#..G,L,S198708-198908

DEEP BLUE,DEEP BLUE,TRIM8#

main69260-22030-15×2iST16#..G,L,S198708-198908

DARK BEIGE,DARK BEIGE,TRIM4#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iST16#..G,L,S198708-198908

69285BHANDLE, PULL

main69285-22010-08×2iST16#..G,L,S198708-198908

NATURAL WHITE,TRIM2#,4#,8#

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-20140iST16#..F,X198708-198908

main69830-20140iST16#..G,L,S198708-198908

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-20140iST16#..F,X198708-198908

main69840-20140iST16#..G,L,S198708-198908

69905BRACKET SUB-ASSY, REAR DOOR GLASS, RH

main69905-20070iST16#198708-198908

69906BRACKET SUB-ASSY, REAR DOOR GLASS, LH

main69906-20020iST16#198708-198908

69980AROLLER ASSY, REAR DOOR GLASS GUIDE

main69980-20010×2iST16#198708-198908

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010506082

main90105-06082

9011606072

main90116-06072

9011908012

main90119-08012

9011908093

main90119-08093

9016850024

main90168-50024

9017906033

main90179-06033

9017906070

main90179-06070

9020907001

main90209-07001

9020909005

main90209-09005

9161160614

main91611-60614

28 parts on this diagram · 1 diagram in section
