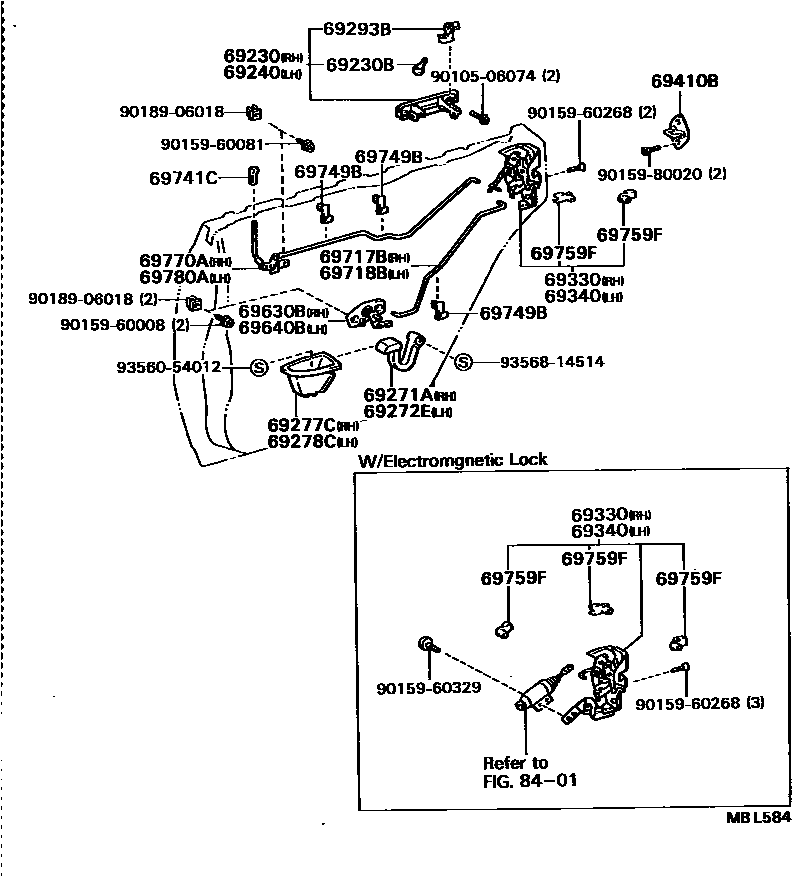

REAR DOOR LOCK & HANDLE

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-20130iST16#198708-198908

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021×2iST16#198708-198908

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-20130iST16#198708-198908

69271AHANDLE, REAR DOOR INSIDE, RH

main69271-20090-01iST16#198708-198908

NEW BLACK,TRIM2#

main69271-20090-04iST16#198708-198908

DEEP BLUE,TRIM8#

main69271-20090-16iST16#198708-198908

BROWN,TRIM4#

69272EHANDLE, REAR DOOR INSIDE, LH

main69272-20060-01iST16#198708-198908

NEW BLACK,TRIM2#

main69272-20060-04iST16#198708-198908

DEEP BLUE,TRIM8#

main69272-20060-16iST16#198708-198908

BROWN,TRIM4#

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-20040-01iST16#198708-198908

BLACK,TRIM2#

main69277-20040-04iST16#198708-198908

DEEP BLUE,TRIM8#

main69277-20040-06iST16#198708-198908

BROWN,TRIM4#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-20040-01iST16#198708-198908

BLACK,TRIM2#

main69278-20040-04iST16#198708-198908

DEEP BLUE,TRIM8#

main69278-20040-06iST16#198708-198908

BROWN,TRIM4#

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-16010iST16#198708-198908

main69293-16020iST16#198708-198908

69330LOCK ASSY, REAR DOOR, RH

main69330-20190iST162..G,S198708-198808

main69330-20220iST16#..G,L,S198708-198908

69340LOCK ASSY, REAR DOOR, LH

main69340-20210iST16#..F,X198708-198908

main69340-20220iST16#..G,L,S198708-198908

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-12050×2iST16#198708-198908

69630BCONTROL ASSY, REAR DOOR LOCK REMOTE, RH

main69610-20080iST16#198708-198908

69640BCONTROL ASSY, REAR DOOR LOCK REMOTE, LH

main69620-20050iST16#198708-198908

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-20080iST16#198708-198908

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-20080iST16#198708-198908

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-20040-01×2iST16#198708-198908

NEW BLACK,TRIM2#

main69741-20040-04×2iST16#198708-198908

DEEP BLUE,TRIM8#

main69741-20040-16×2iST16#198708-198908

BROWN,TRIM4#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-20020×4iST16#198708-198908

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20100iST162..G,S198708-198808

SOLENOID LINK,RH

main69759-20110iST162..G,S198708-198808

SOLENOID LINK,LH

main69759-20180×2iST16#198708-198908

LOCKING LINK

main69759-20190iST16#198708-198908

OPEN LINK,LH

main69759-20200iST16#198708-198908

OPEN LINK,RH

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-20050iST16#198708-198908

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-20050iST16#198708-198908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506074

main90105-06074

9015960008

main90159-60008

9015960081

main90159-60081

9015960268

main90159-60268

9015960329

main90159-60329

9015980020

main90159-80020

9018906018

main90189-06018

9356054012

main93560-54012

9356814514

main93568-14514

30 parts on this diagram · 1 diagram in section
