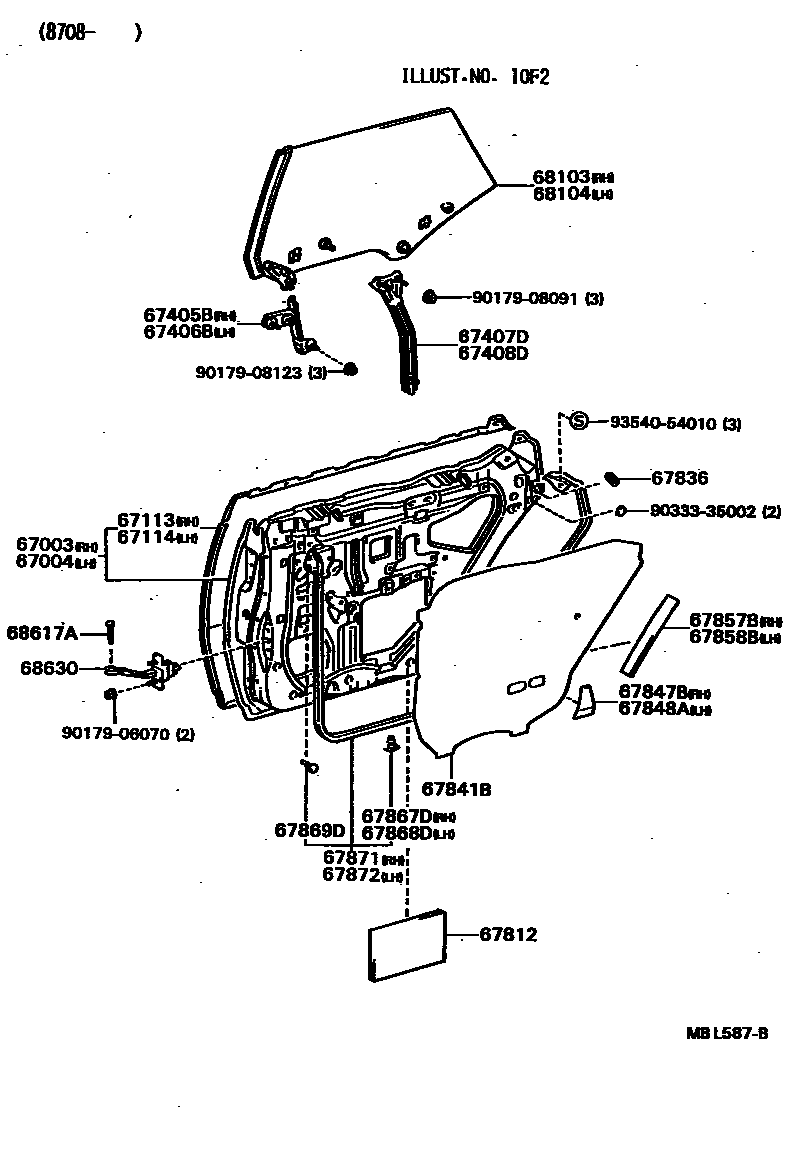

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-20420iST16#198708-198908

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-20420iST16#198708-198908

67113PANEL, REAR DOOR, OUTER RH

main67113-20090iST16#198708-198908

67114PANEL, REAR DOOR, OUTER LH

main67114-20090iST16#198708-198908

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-20050iST16#198708-198908

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-20050iST16#198708-198908

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-20120iST16#198708-198908

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-20110iST16#198708-198908

67812PAD, REAR DOOR SILENCER

main67812-12010×2iST16#198708-198908

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-20060×2iST16#198708-198908

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-20180iST16#198708-198908

main67842-20080iST16#198708-198908

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-20040iST16#198708-198908

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-20040iST16#198708-198908

67857BPROTECTOR, REAR DOOR PANEL, RH

main58741-20040iST162..S; ST162..X198808-198908

67858BPROTECTOR, REAR DOOR PANEL, LH

main58742-20040iST162..S; ST162..X198808-198908

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-20010×16iST16#198708-198908

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-20010×16iST16#198708-198908

67869DCLIP, DOOR WEATHERSTRIP

main67869-30020iST16#198708-198908

67871WEATHERSTRIP, REAR DOOR, RH

main67871-20190iST16#198708-198908

67872WEATHERSTRIP, REAR DOOR, LH

main67872-20190iST16#198708-198908

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-20070iST16#198708-198903

main68103-20080iST162..G; ST162..X; ST163198808-198903

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-20070iST16#198903-198908

main68104-20080iST162..G; ST162..X; ST163198808-198903

68617APIN, REAR DOOR CHECK

main68617-90A00×2iST16#198708-198908

68630CHECK ASSY, REAR DOOR

main68630-20040×2iST16#198708-198908

9017906070

main90179-06070

9017908091

main90179-08091

9017908123

main90179-08123

9033335002

main90333-35002

9354054010

main93540-54010

29 parts on this diagram · 2 diagrams in section
