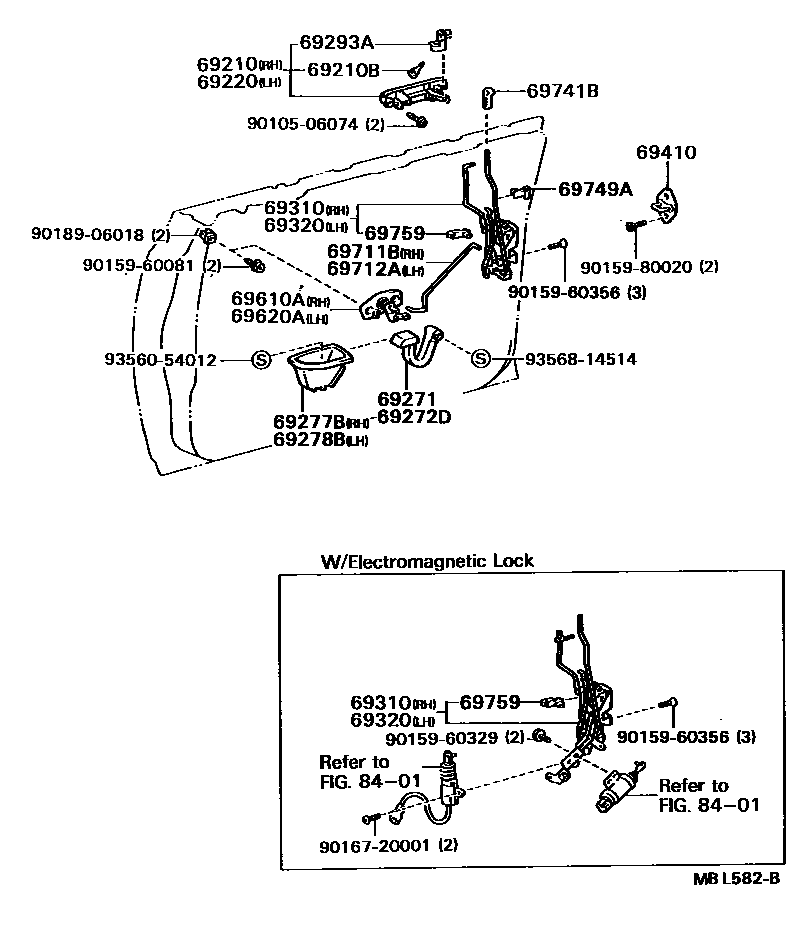

FRONT DOOR LOCK & HANDLE

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-20120iST16#198708-198908

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021×2iST16#198708-198908

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-20120iST16#198708-198908

69271HANDLE, FRONT DOOR INSIDE, RH

main69271-20090-01iST16#198708-198908

NEW BLACK,TRIM2#

main69271-20090-04iST16#198708-198908

DEEP BLUE,TRIM8#

main69271-20090-16iST16#198708-198908

BROWN,TRIM4#

69272DHANDLE, FRONT DOOR INSIDE, LH

main69272-20060-01iST16#198708-198908

NEW BLACK,TRIM2#

main69272-20060-04iST16#198708-198908

DEEP BLUE,TRIM8#

main69272-20060-16iST16#198708-198908

BROWN,TRIM4#

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-20040-01iST16#..G,L,S198708-198908

BLACK,TRIM2#

main69277-20040-04iST16#..G,L,S198708-198908

DEEP BLUE,TRIM8#

main69277-20040-06iST16#..G,L,S198708-198908

BROWN,TRIM4#

main69277-20050-01iST16#..F,X; ST162..G; ST162..S198708-198908

main69277-20050-04iST16#..F,X; ST162..G; ST162..S198708-198908

main69277-20050-06iST16#..F,X; ST162..G; ST162..S198708-198908

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-20040-01iST16#..G,L,S198708-198908

BLACK,TRIM2#

main69278-20040-04iST16#..G,L,S198708-198908

DEEP BLUE,TRIM8#

main69278-20040-06iST16#..G,L,S198708-198908

BROWN,TRIM4#

main69278-20050-01iST16#..F,X; ST162..G; ST162..S198708-198908

main69278-20050-04iST16#..F,X; ST162..G; ST162..S198708-198908

main69278-20050-06iST16#..F,X; ST162..G; ST162..S198708-198908

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-16010iST16#198708-198908

main69293-16020iST16#198708-198908

69310LOCK ASSY, FRONT DOOR, RH

main69310-20260iST16#..F,X198708-198908

main69310-20290iST16#..G,L,S198708-198908

69320LOCK ASSY, FRONT DOOR, LH

main69320-20260iST162..G,S198708-198808

main69320-20290iST16#..G,L,S198708-198908

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-12050×2iST16#198708-198908

69610ACONTROL ASSY, FRONT DOOR LOCK REMOTE, RH

main69610-20080iST16#198708-198908

69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH

main69620-20050iST16#198708-198908

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-20090iST16#198708-198908

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-20090iST16#198708-198908

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-20040-01×2iST16#198708-198908

NEW BLACK,TRIM2#

main69741-20040-04×2iST16#198708-198908

DEEP BLUE,TRIM8#

main69741-20040-16×2iST16#198708-198908

BROWN,TRIM4#

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20020×2iST16#198708-198908

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20190iST16#198708-198908

main69759-20200iST16#198708-198908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506074

main90105-06074

9015960081

main90159-60081

9015960329

main90159-60329

9015960356

main90159-60356

9015980020

main90159-80020

9016720001

main90167-20001

9018906018

main90189-06018

9356054012

main93560-54012

9356814514

main93568-14514

28 parts on this diagram · 1 diagram in section
