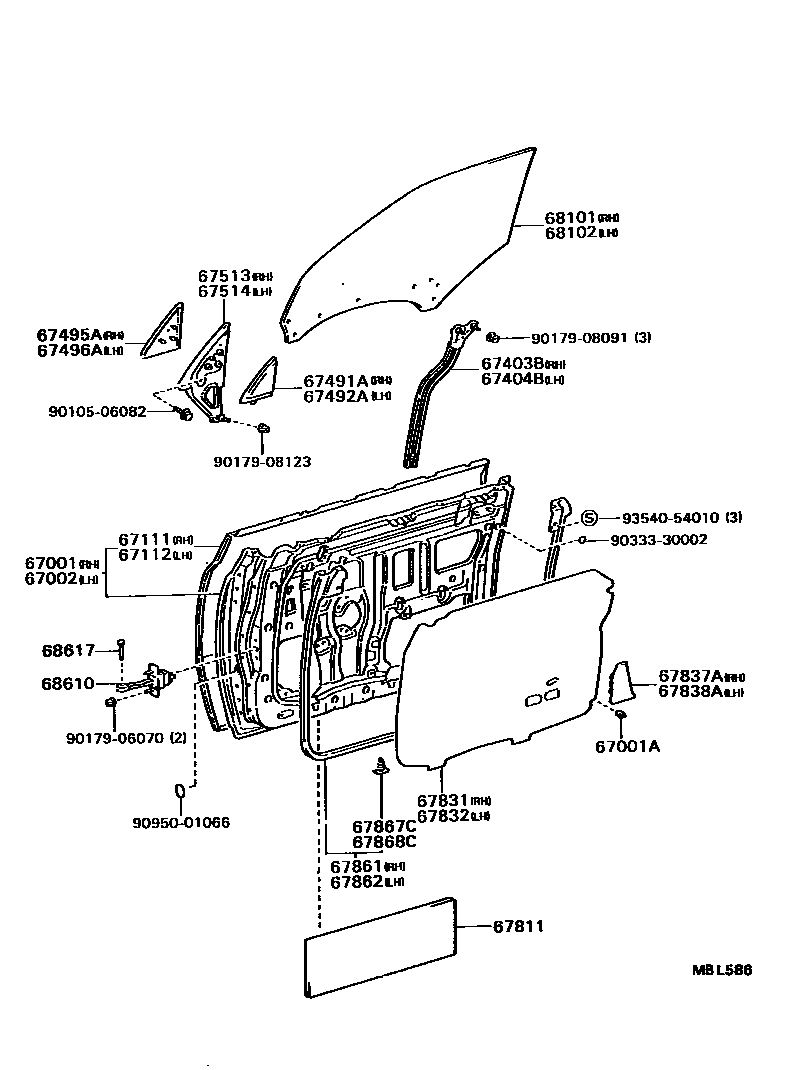

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-20630iST16#198708-198908

67001ACUSHION, FRONT DOOR PANEL

main90541-09006×2iST16#198708-198908

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-20600iST16#198708-198908

67111PANEL, FRONT DOOR, OUTER RH

main67111-20150iST16#198708-198908

67112PANEL, FRONT DOOR, OUTER LH

main67112-20170iST16#198708-198908

67403BGUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH

main67403-20030iST16#198708-198908

67404BGUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH

main67404-20030iST16#198708-198908

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-20110iST16#198708-198908

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-20130iST16#198708-198908

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-20060iST16#198708-198908

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-20030iST16#198708-198908

67513BRACKET, FRONT DOOR MIRROR, RH

main67513-20040iST16#198708-198908

67514BRACKET, FRONT DOOR MIRROR, LH

main67514-20040iST16#198708-198908

67811PAD, FRONT DOOR SILENCER

main67812-12010×2iST16#198708-198908

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-20260iST16#..G,L,S198708-198908

main67831-20270iST16#..L,S198808-198908

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-20100iST16#..X; ST162..G198708-198908

main67832-20110iST16#198708-198908

67837ASEAL, FRONT DOOR VENT, RH

main67837-20060iST16#198708-198908

67838ASEAL, FRONT DOOR VENT, LH

main67838-20050iST16#198708-198908

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-20240iST16#198708-198908

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-20240iST16#198708-198908

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-30040×18iST16#198708-198908

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-30040×18iST16#198708-198908

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-20360iST16#198708-198908

main68111-20390iST162..X; ST163;ST162..G198808-198908

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-20280iST16#198708-198908

main68112-20310iST162..X; ST163;ST162..G198808-198908

68610CHECK ASSY, FRONT DOOR

main68610-20040×2iST16#198708-198908

68617PIN, FRONT DOOR CHECK

main68617-90K00×2iST16#198708-198908

9010506082

main90105-06082

9017906070

main90179-06070

9017908091

main90179-08091

9017908123

main90179-08123

9033330002

main90333-30002

9095001066

main90950-01066

9354054010

main93540-54010

33 parts on this diagram · 2 diagrams in section
