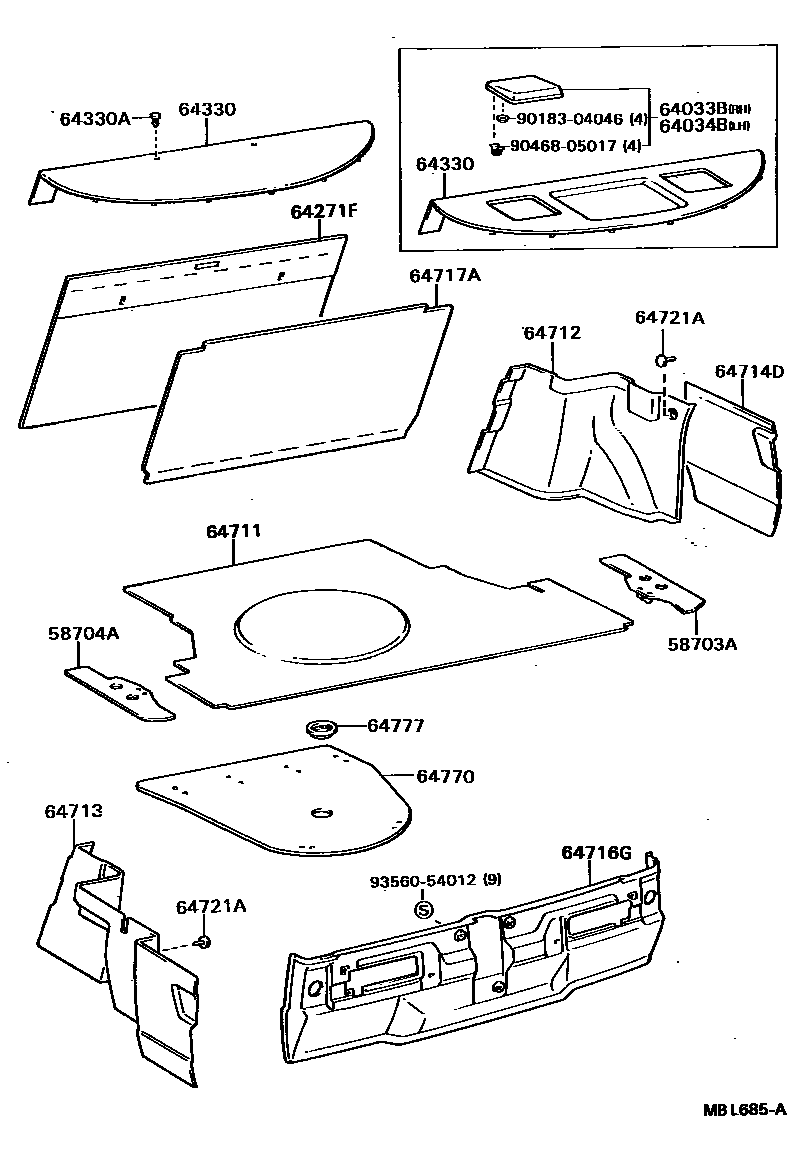

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20040iST16#198708-198908

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20070iST16#198708-198908

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-20100-01iST16#..F,X; ST162..G; ST162..S198708-198908

BLACK,TRIM2#

main64033-20100-04iST16#..F,X; ST162..G; ST162..S198708-198908

DEEP BLUE,TRIM8#

main64033-20100-16iST16#..F,X; ST162..G; ST162..S198708-198908

SABLE,TRIM4#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-20100-01iST16#..F,X; ST162..G; ST162..S198708-198908

BLACK,TRIM2#

main64033-20100-04iST16#..F,X; ST162..G; ST162..S198708-198908

DEEP BLUE,TRIM8#

main64033-20100-16iST16#..F,X; ST162..G; ST162..S198708-198908

SABLE,TRIM4#

64271FTRIM, ROOM PARTITION

main64271-20140iST16#198708-198908

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20490-01iST16#..F,X; ST162..G; ST162..S198708-198908

main64330-20490-04iST16#..F,X; ST162..G; ST162..S198708-198908

main64330-20490-16iST16#..F,X; ST162..G; ST162..S198708-198908

main64330-20780-01iST16#..G,L,S198708-198908

BLACK,TRIM2#

main64330-20780-04iST16#..G,L,S198708-198908

DEEP BLUE,TRIM8#

main64330-20780-16iST16#..G,L,S198708-198908

SABLE,TRIM4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08037-11×2iST16#..G,L,S198708-198908

BLACK,TRIM2#

main90467-08037-34×2iST16#..G,L,S198708-198908

DEEP BLUE,TRIM8#

main90467-08037-46×2iST16#..G,L,S198708-198908

SABLE,SABLE,TRIM4#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-20290iST16#..F,G,L,S198708-198908

main64711-20300iST16#..X; ST162..G198708-198908

G LIMITED

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-20100iST16#..F,G,L,S198708-198908

main64712-20130iST16#..X; ST162..G198708-198908

G LIMITED

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-20100iST16#..F,G,L,S198708-198908

main64713-20130iST16#..X; ST162..G198708-198908

G LIMITED

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-20190iST16#..F,G,L,S198708-198908

main64714-20220iST16#..X; ST162..G198708-198908

G LIMITED

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-20140iST16#..F,G,L,S198708-198908

main64716-20180iST16#..X; ST162..G198708-198908

G LIMITED

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-20120iST16#..F,G,L,S198708-198908

main64717-20160iST16#..X; ST162..G198708-198908

G LIMITED

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-03×3iST16#198708-198807

GRAY,TRIM2#,4#,8#

64770COVER ASSY, SPARE WHEEL

main64770-20100iST16#198708-198908

64777CLAMP, SPARE WHEEL COVER

main64777-32030iST16#198708-198908

9018304046

main90183-04046

9046805017

main90468-05017

9356054012

main93560-54012

19 parts on this diagram · 1 diagram in section
