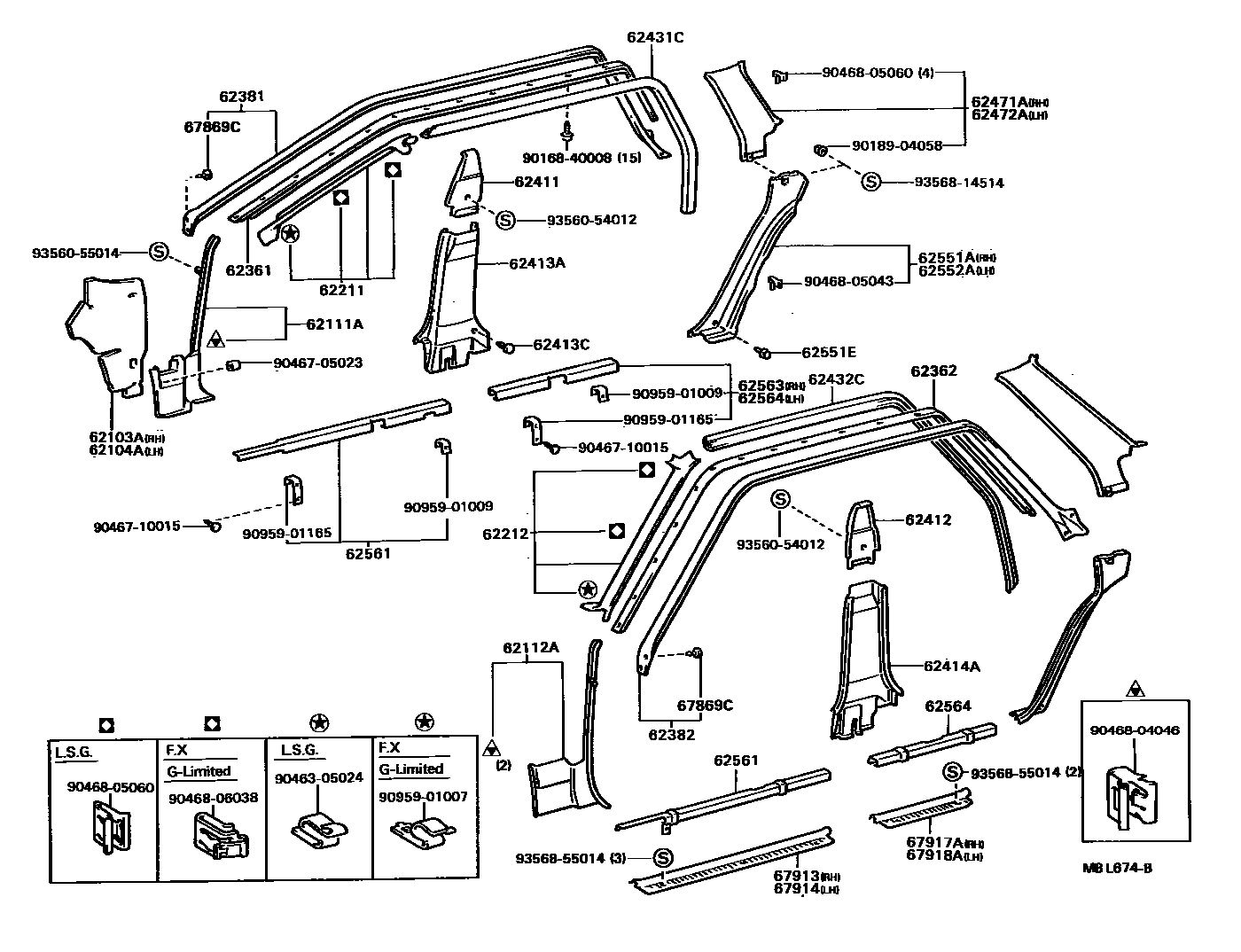

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-20080iST16#198708-198908

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-20080iST16#198708-198908

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-20150-01iST16#198708-198908

BLACK,TRIM2#

sub62101-20150

main62101-20150-04iST16#198708-198908

DEEP BLUE,TRIM8#

sub62101-20150

main62101-20150-16iST16#198708-198908

SABLE,TRIM4#

sub62101-20150

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-20111-01iST16#198708-198908

BLACK,TRIM2#

main62102-20111-04iST16#198708-198908

DEEP BLUE,TRIM8#

main62102-20111-06iST16#198708-198908

SABLE,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62210-20020-01iST162..G198708-198908

BLACK,TRIM2#

main62210-20020-01iST162..G198708-198908

G LIMITED,BLACK,TRIM2#

main62210-20020-04iST162..G198708-198908

G LIMITED,DEEP BLUE,TRIM8#

main62210-20020-04iST16#..F,X198708-198908

DEEP BLUE,TRIM8#

main62210-20020-16iST162..G198708-198908

SABLE,TRIM4#

main62210-20020-16iST16#..F,X198708-198908

G LIMITED,SABLE,TRIM4#

main62211-20140-01iST16#..G,L,S198708-198908

BLACK,TRIM2#

main62211-20140-04iST16#..G,L,S198708-198908

DEEP BLUE,TRIM8#

main62211-20140-16iST16#..G,L,S198708-198908

SABLE,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-20140-01iST16#..G,L,S198708-198908

BLACK,TRIM2#

main62212-20140-04iST16#..G,L,S198708-198908

DEEP BLUE,TRIM8#

main62212-20140-16iST16#..G,L,S198708-198908

SABLE,TRIM4#

main62220-20020-01iST16#..F,X198708-198908

BLACK,TRIM2#

main62220-20020-01iST16#..F,X198708-198908

G LIMITED,BLACK,TRIM2#

main62220-20020-04iST16#..F,X198708-198908

DEEP BLUE,TRIM8#

main62220-20020-04iST16#..F,X198708-198908

G LIMITED,DEEP BLUE,TRIM8#

main62220-20020-16iST16#..F,X198708-198908

SABLE,TRIM4#

main62220-20020-16iST16#..F,X198708-198908

G LIMITED,SABLE,TRIM4#

62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH

main62361-20010iST16#198708-198908

62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH

main62362-20010iST16#198708-198908

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-20020iST16#198708-198908

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-20020iST16#198708-198908

62411GARNISH, CENTER PILLAR, RH

main62411-20220-01iST16#198708-198908

BLACK,TRIM2#

main62411-20220-04iST16#198708-198908

DEEP BLUE,TRIM8#

main62411-20220-16iST16#198708-198908

SABLE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62412-20220-01iST16#198708-198908

BLACK,TRIM2#

main62412-20220-04iST16#198708-198908

DEEP BLUE,TRIM8#

main62412-20220-16iST16#198708-198908

SABLE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-20090-01iST16#198708-198908

BLACK,TRIM2#

main62413-20090-04iST16#198708-198908

DEEP BLUE,TRIM8#

main62413-20090-16iST16#198708-198908

SABLE,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-06020-01iST16#198708-198908

BLACK,TRIM2#

sub90467-06020

main90467-06020-24iST16#198708-198908

DEEP BLUE,TRIM8#

sub90467-06020

main90467-06020-36iST16#198708-198908

SABLE,SABLE,TRIM4#

sub90467-06020

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-20070-01iST16#198708-198908

BLACK,TRIM2#

main62414-20070-04iST16#198708-198908

DEEP BLUE,TRIM8#

main62414-20070-16iST16#198708-198908

SABLE,TRIM4#

62431CGARNISH, ROOF SIDE RAIL, FRONT RH

main62431-20020-01iST16#198708-198908

BLACK,TRIM2#

main62431-20020-04iST16#198708-198908

DEEP BLUE,TRIM8#

main62431-20020-16iST16#198708-198908

SABLE,TRIM4#

62432CGARNISH, ROOF SIDE RAIL, FRONT LH

main62432-20020-01iST16#198708-198908

BLACK,TRIM2#

main62432-20020-04iST16#198708-198908

DEEP BLUE,TRIM8#

main62432-20020-16iST16#198708-198908

SABLE,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-20130-03iST162..G198708-198908

SHADOW GRAY,TRIM2#

main62470-20130-03iST162..G198708-198908

SHADOW GRAY,SHADOW GRAY,TRIM2#

main62470-20130-03iST162..G198708-198908

main62470-20130-03iST163..L198808-198908

main62470-20130-04iST16#..F,X198708-198908

main62470-20130-04iST16#..F,X198708-198908

main62470-20130-04iST162..S198708-198908

DEEP BLUE,TRIM8#

main62470-20130-04iST163..L198808-198908

main62470-20130-16iST16#..F,X198708-198908

main62470-20130-16iST16#..F,X198708-198908

SABLE,TRIM4#

main62470-20130-16iST16#..F,X198708-198908

main62470-20130-16iST163..L198808-198908

main62471-20190-01iST16#..G,L,S198708-198908

BLACK,TRIM2#

main62471-20190-04iST16#..G,L,S198708-198908

DEEP BLUE,TRIM8#

main62471-20190-16iST16#..G,L,S198708-198908

SABLE,TRIM4#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-20210-01iST16#..G,L,S198708-198908

BLACK,TRIM2#

main62472-20210-04iST16#..G,L,S198708-198908

DEEP BLUE,TRIM8#

main62472-20210-16iST16#..G,L,S198708-198908

SABLE,TRIM4#

main62480-20130-03iST162..S198708-198908

main62480-20130-03iST162..G198708-198908

SHADOW GRAY,TRIM2#

main62480-20130-03iST162..G198708-198908

SHADOW GRAY,SHADOW GRAY,TRIM2#

main62480-20130-03iST163..L198808-198908

main62480-20130-04iST162..S198708-198908

main62480-20130-04iST162..S198708-198908

main62480-20130-04iST162..G198708-198908

DEEP BLUE,TRIM8#

main62480-20130-04iST163..L198808-198908

main62480-20130-16iST162..G198708-198908

main62480-20130-16iST16#..F,X198708-198908

SABLE,TRIM4#

main62480-20130-16iST16#..F,X198708-198908

main62480-20130-16iST163..L198808-198908

62551ACOVER, REAR SEAT SIDE, RH

main62551-20070-01iST16#198708-198908

BLACK,TRIM2#

main62551-20070-04iST16#198708-198908

DEEP BLUE,TRIM8#

main62551-20070-16iST16#198708-198908

SABLE,TRIM4#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-06020-01iST16#198708-198908

BLACK,TRIM2#

sub90467-06020

main90467-06020-24iST16#198708-198908

DEEP BLUE,TRIM8#

sub90467-06020

main90467-06020-36iST16#198708-198908

SABLE,SABLE,TRIM4#

sub90467-06020

62552ACOVER, REAR SEAT SIDE, LH

main62552-20060-01iST16#198708-198908

BLACK,TRIM2#

main62552-20060-04iST16#198708-198908

DEEP BLUE,TRIM8#

main62552-20060-16iST16#198708-198908

SABLE,TRIM4#

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-20050iST16#198708-198908

main62562-20030iST16#198708-198908

62563PROTECTOR, ROCKER PANEL, INNER REAR RH

main62563-20050iST16#198708-198908

62564PROTECTOR, ROCKER PANEL, INNER REAR LH

main62564-20030iST16#198708-198908

67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-30020iST16#198708-198908

67913PLATE, FRONT DOOR SCUFF, RH

main67913-20130-01iST16#198708-198908

BLACK,TRIM2#

main67913-20130-04iST16#198708-198908

DEEP BLUE,TRIM8#

main67913-20130-16iST16#198708-198908

SABLE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67913-20130-01iST16#198708-198908

BLACK,TRIM2#

main67913-20130-04iST16#198708-198908

DEEP BLUE,TRIM8#

main67913-20130-16iST16#198708-198908

SABLE,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-20120-01iST16#198708-198908

BLACK,TRIM2#

main67917-20120-04iST16#198708-198908

DEEP BLUE,TRIM8#

main67917-20120-16iST16#198708-198908

SABLE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67917-20120-01iST16#198708-198908

BLACK,TRIM2#

main67917-20120-04iST16#198708-198908

DEEP BLUE,TRIM8#

main67917-20120-16iST16#198708-198908

SABLE,TRIM4#

9016840008

main90168-40008

9018904058

main90189-04058

9046305024

main90463-05024

9046705023

main90467-05023

9046710015

main90467-10015

9046804046

main90468-04046

9046805043

main90468-05043

9046805060

main90468-05060

9046806038

main90468-06038

9095901007

main90959-01007

9095901009

main90959-01009

9095901165

main90959-01165

9356054012

main93560-54012

9356055014

main93560-55014

9356814514

main93568-14514

9356855014

main93568-55014

46 parts on this diagram · 1 diagram in section
