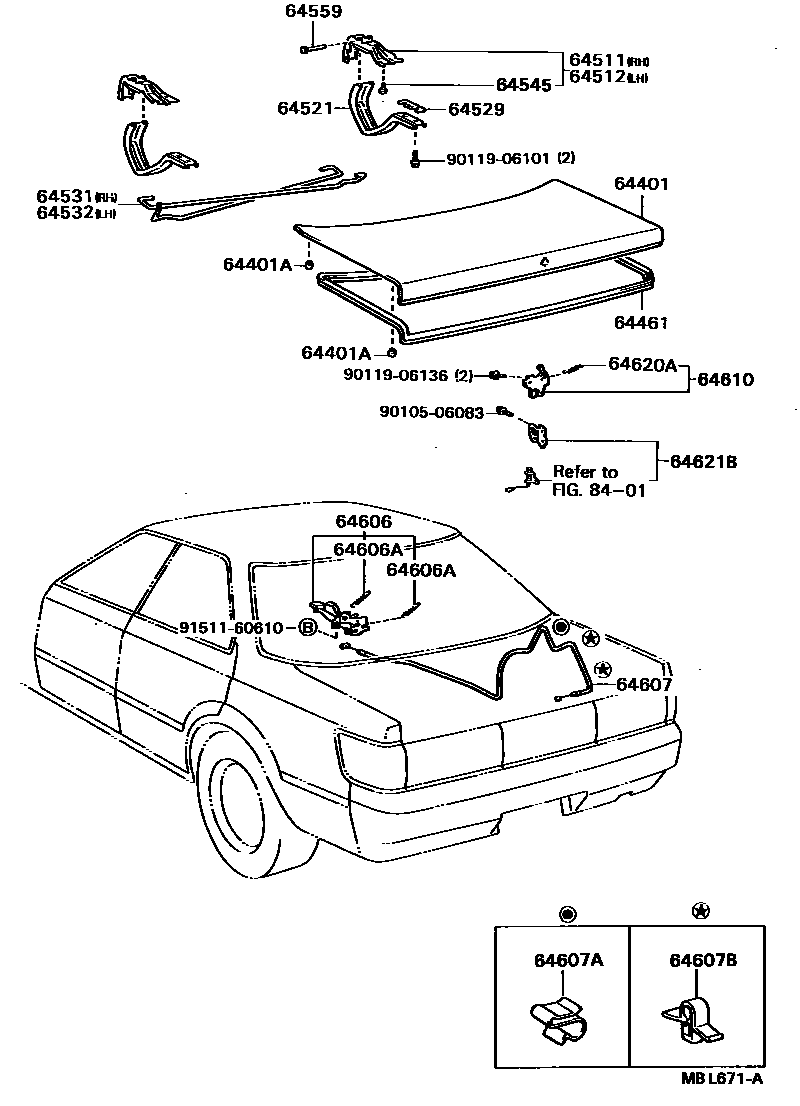

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-2B030iST16#198708-198908

main64401-2B040iST16#198708-198908

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076×2iST16#198708-198908

main90541-09043×2iST16#198708-198908

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20270iST16#198708-198908

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-20100iST16#198708-198908

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-20100iST16#198708-198908

64521ARM, LUGGAGE COMPARTMENT DOOR HINGE

main64521-20110×2iST16#198708-198908

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010iST16#198708-198908

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-20160iST16#198708-198802

main64531-20161iST16#198802-198908

main64531-20170iST16#198708-198802

main64531-20171iST16#198802-198908

main64531-20180iST16#198708-198908

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-20160iST16#198708-198802

main64532-20161iST16#198802-198908

main64532-20170iST16#198708-198802

main64532-20171iST16#198802-198908

main64532-20180iST16#198708-198908

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007×2iST16#198708-198908

64559PIN, LUGGAGE DOOR HINGE

main64559-22010×2iST16#198708-198908

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20070iST16#198708-198908

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004×2iST16#198708-198908

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20260iST16#198708-198908

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90463-05005iST16#198708-198908

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90959-01209×2iST16#198708-198908

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20090iST16#198708-198908

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iST16#198708-198908

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-20040iST16#..F,X; ST162..G198708-198908

G LIMITED

main64621-20050iST16#..G,L,S198708-198908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506083

main90105-06083

9011906101

main90119-06101

9011906136

main90119-06136

9151160610

main91511-60610

24 parts on this diagram · 1 diagram in section
