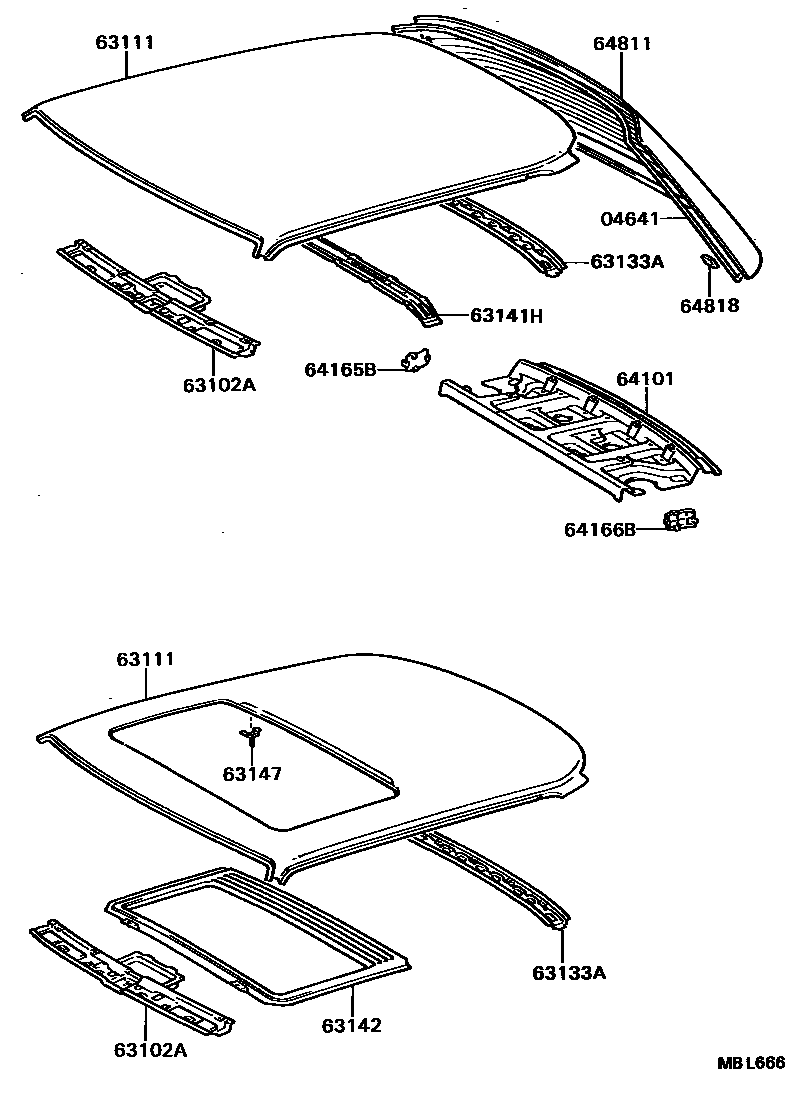

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iST16#198708-198908

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20050iST16#..X198708-198908

G LIMITED

main63102-20080iST16#..F,G,L,S198708-198908

63111PANEL, ROOF

main63111-20140iST16#198708-198908

main63111-20280iST16#..F,L,S,X198708-198908

63133AFRAME, BACK WINDOW, UPPER

main63133-20110iST16#198708-198908

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-20050iST16#198708-198908

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-20050iST16#..F,S,X198708-198908

63147BRACKET, ROOF PANEL REINFORCEMENT

main63147-20020iST162..G198708-198908

64101PANEL SUB-ASSY, UPPER BACK

main64101-20210iST16#198708-198908

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-20020iST16#198708-198908

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64165-20020iST16#198708-198908

64811GLASS, BACK WINDOW

main64811-20540iST160,163..L198708-198908

main64811-20610iST16#..F,G,S,X198708-198908

main64811-20610iST163..L198808-198908

main64811-20630iST16#..F,G,X198708-198908

64818SPACER, BACK WINDOW GLASS

main64818-20020iST16#198708-198808

12 parts on this diagram · 2 diagrams in section
