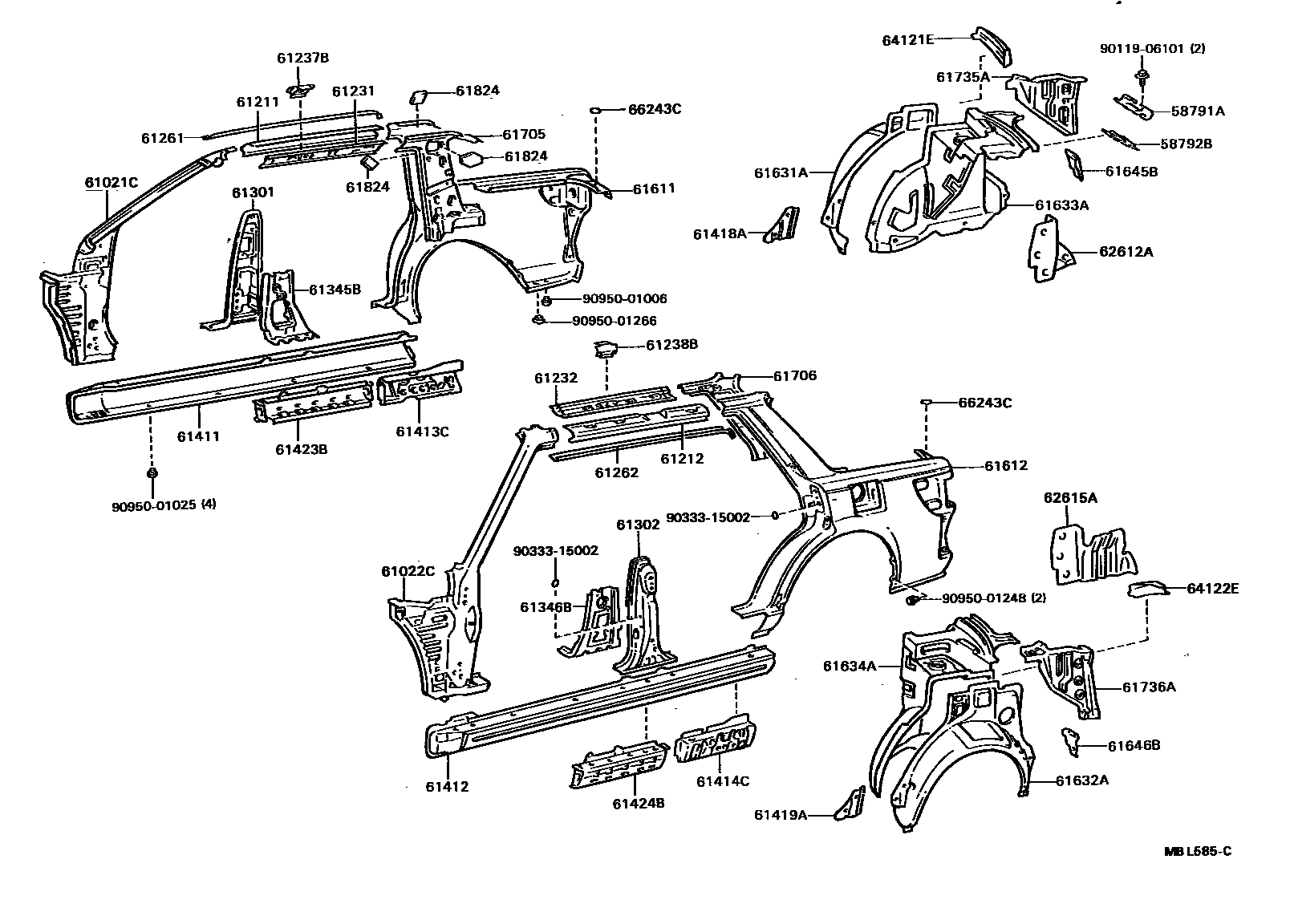

SIDE MEMBER
58791ACARRIER, JACK
58792BSUPPORT, JACK CARRIER
61021CPILLAR SUB-ASSY, FRONT BODY, RH
61022CPILLAR SUB-ASSY, FRONT BODY, LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61237BREINFORCEMENT, SEAT BELT ANCHOR TO ROOF SIDE RAIL, RH
61238BREINFORCEMENT, SEAT BELT ANCHOR TO ROOF SIDE RAIL, LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61302PILLAR SUB-ASSY, CENTER BODY, LH
61345BPILLAR, CENTER BODY, INNER LOWER RH
61346BPILLAR, CENTER BODY, INNER LOWER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH
61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH
61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61824PLATE, NOISE CONTROL, NO.1
62612APAD, QUARTER WHEEL HOUSE, NO.2
62615APAD, QUARTER WHEEL HOUSE, NO.3
64121EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH
64122EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH
66243CPROTECTOR, REAR BODY, NO.1
9011906101
main90119-06101
9033315002
main90333-15002
9095001006
main90950-01006
9095001025
main90950-01025
9095001248
main90950-01248
9095001266
main90950-01266
48 parts on this diagram · 1 diagram in section
