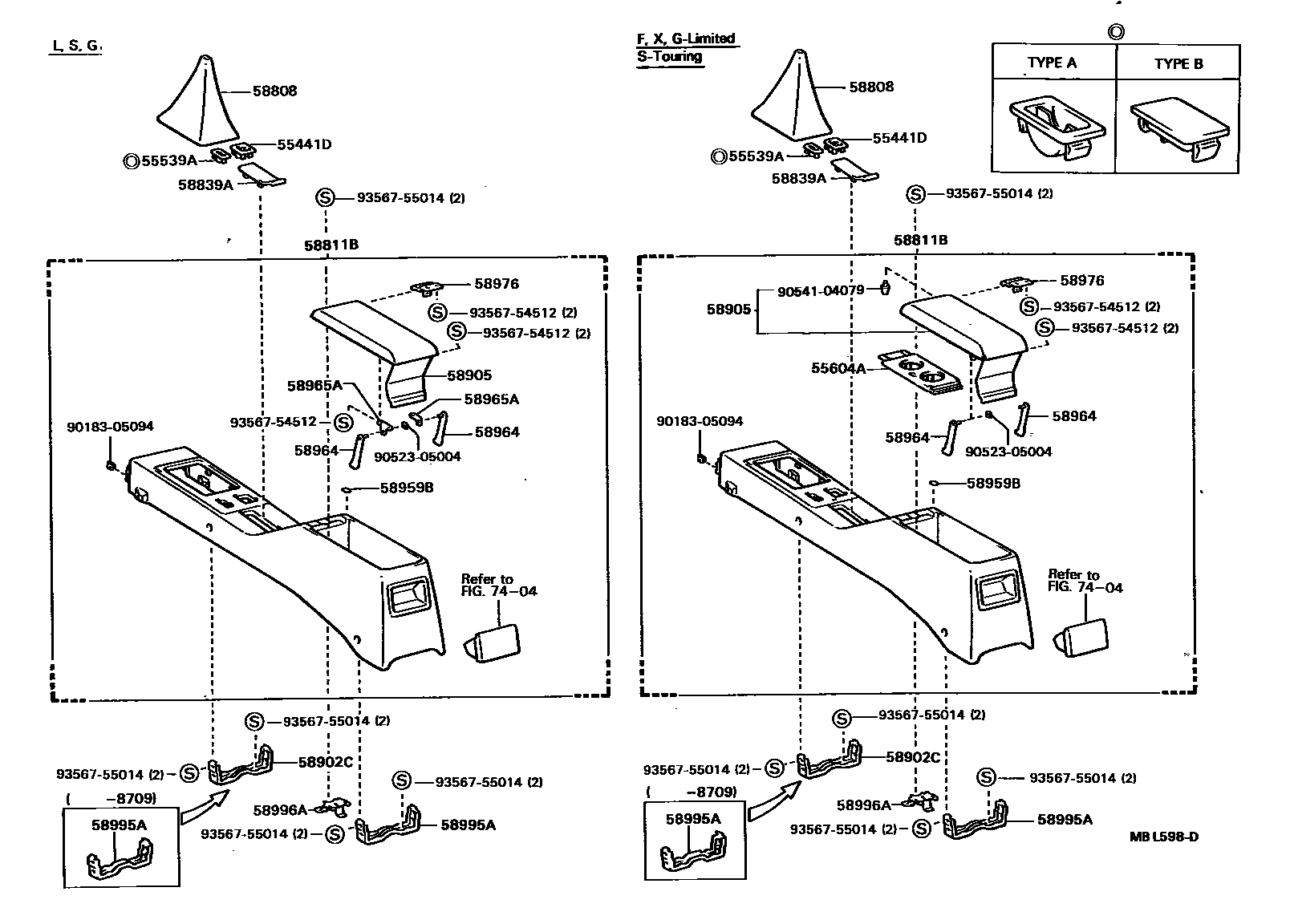

CONSOLE BOX & BRACKET

55441DBOX, INSTRUMENT PANEL COIN

main55441-20150-01iST16#198708-198908

BLACK,TRIM2#

main55441-20150-04iST16#198708-198908

DEEP BLUE,TRIM8#

main55441-20150-16iST16#198708-198908

SABLE,TRIM4#

55539ACOVER, SPARE SWITCH HOLE

main55539-20020-04iST163;ST162..5F198805-198908

main55539-20020-11iST162..5F..G;ST16#..F,L,S,X198708-198805

main55539-20020-36iST163;ST162..5F198805-198908

TYPE A,SABLE,SABLE,TRIM4#

main55539-20030-01iST16#198708-198908

main55539-20030-04iST16#198708-198908

main55539-20030-26iST16#198708-198908

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-20010iST16#..F,X; ST162..G198708-198908

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20050-01iST16#..5F198708-198908

BLACK,TRIM2#

main58808-20050-04iST16#..5F198708-198908

DEEP BLUE,TRIM8#

main58808-20050-16iST16#..5F198708-198908

SABLE,SABLE,TRIM4#

58811BBOX, CONSOLE

main58801-20140-01iST16#..G,L,S198708-198908

BLACK,TRIM2#

main58801-20140-04iST16#..G,L,S198708-198908

DEEP BLUE,TRIM8#

main58801-20140-06iST16#..G,L,S198708-198908

SABLE,SABLE,TRIM4#

main58801-20150-01iST16#..F,X; ST162..G198708-198908

BLACK,TRIM2#; G LIMITED,BLACK,TRIM2#

main58801-20150-04iST16#..F,X; ST162..G198708-198908

DEEP BLUE,TRIM8#; G LIMITED,DEEP BLUE,TRIM8#

main58801-20150-06iST16#..F,X; ST162..G198708-198908

G LIMITED,SABLE,TRIM4#; SABLE,TRIM4#

58839ACOVER, CONSOLE BOX HOLE

main58839-20020-01iST16#198708-198908

BLACK,TRIM2#

main58839-20020-04iST16#198708-198908

DEEP BLUE,TRIM8#

main58839-20020-16iST16#198708-198908

SABLE,TRIM4#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-20040iST16#198709-198908

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20070-01iST16#..F,X; ST162..G198708-198908

BLACK,TRIM2#; G LIMITED,BLACK,TRIM2#

main58905-20070-04iST16#..F,X; ST162..G198708-198908

DEEP BLUE,TRIM8#; G LIMITED,DEEP BLUE,TRIM8#

main58905-20070-06iST16#..F,X; ST162..G198708-198908

G LIMITED,SABLE,TRIM4#; SABLE,TRIM4#

main58951-20070-01iST16#..G,L,S198708-198908

BLACK,TRIM2#

main58951-20070-04iST16#..G,L,S198708-198908

DEEP BLUE,TRIM8#

main58951-20070-16iST16#..G,L,S198708-198908

SABLE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010×2iST16#198708-198908

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30030iST16#..G,L,S198708-198908

main58964-30040iST16#..F,X; ST162..G198708-198908

main58964-90K00iST16#198708-198908

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iST16#..G,L,S198708-198908

main58965-20020iST16#..G,L,S198708-198908

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iST16#198708-198908

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-20030×2iST16#198708-198709

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-20030iST16#198708-198908

7404ASH RECEPTACLE

→ Go to FIG 74-04

9018305094

main90183-05094

9052305004

main90523-05004

9054104079

main90541-04079

9356754512

main93567-54512

9356755014

main93567-55014

20 parts on this diagram · 1 diagram in section
