MAT & CARPET

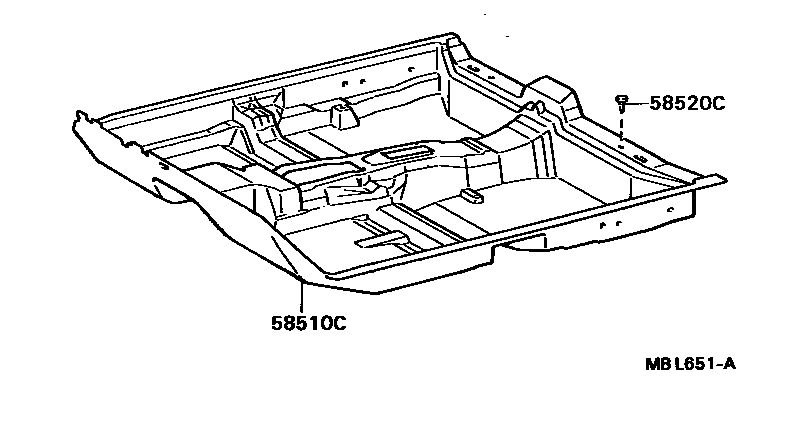

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-20631-01iST16#198708-198908

BLACK,TRIM2#

main58510-20631-04iST16#198708-198908

DEEP BLUE,TRIM8#

main58510-20631-06iST16#198708-198908

SABLE,TRIM4#

main58510-2B520-01iST162198808-198908

main58510-2B520-04iST162198808-198908

main58510-2B520-05iST162198808-198908

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-11×2iST16#198708-198808

BLACK,TRIM2#

main90467-06016-30×2iST163..L198808-198908

BLUE,TRIM8#

main90467-06016-45×2iST162..X;ST163..L198808-198908

DARK BEIGE,TRIM4#

main90467-06016-57×2iST16#198708-198808

SABLE,SABLE,TRIM4#

2 parts on this diagram · 1 diagram in section
