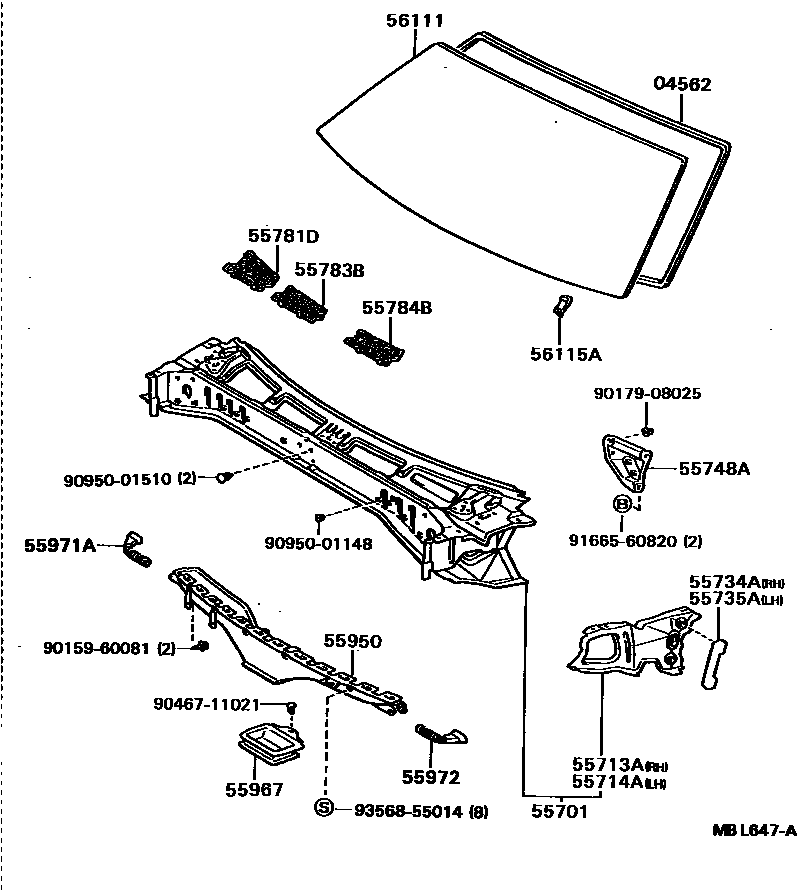

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iST16#198708-198908

55701PANEL SUB-ASSY, COWL

main55700-20560iST16#198708-198908

55713APANEL, COWL TOP SIDE, RH

main55713-20080iST16#198708-198908

55714APANEL, COWL TOP SIDE, LH

main55714-20080iST16#198708-198908

55734APLATE, WATER GUARD, RH

main55734-20080iST16#198708-198908

55735APLATE, WATER GUARD, LH

main55734-20080iST16#198708-198908

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-20080iST16#198708-198908

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-20130iST16#198708-198908

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-20090iST16#198708-198908

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-20060iST16#198708-198908

55950NOZZLE ASSY, DEFROSTER

main55950-20080iST16#198708-198908

55967NOZZLE, DEFROSTER, LOWER

main55967-20010iST16#198708-198908

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-20070iST16#198708-198908

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-20050iST16#198708-198908

56111GLASS, WINDSHIELD

main56111-20360iST16#..F,G,X198708-198808

main56111-20460iST16#..G,L,S198708-198908

main56111-20480iST16#..F,X198708-198908

main56111-20750iST162..X198808-198908

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-20020×2iST16#198708-198908

9015960081

main90159-60081

9017908025

main90179-08025

9046711021

main90467-11021

9095001148

main90950-01148

9095001510

main90950-01510

9166560820

main91665-60820

9356855014

main93568-55014

23 parts on this diagram · 1 diagram in section
