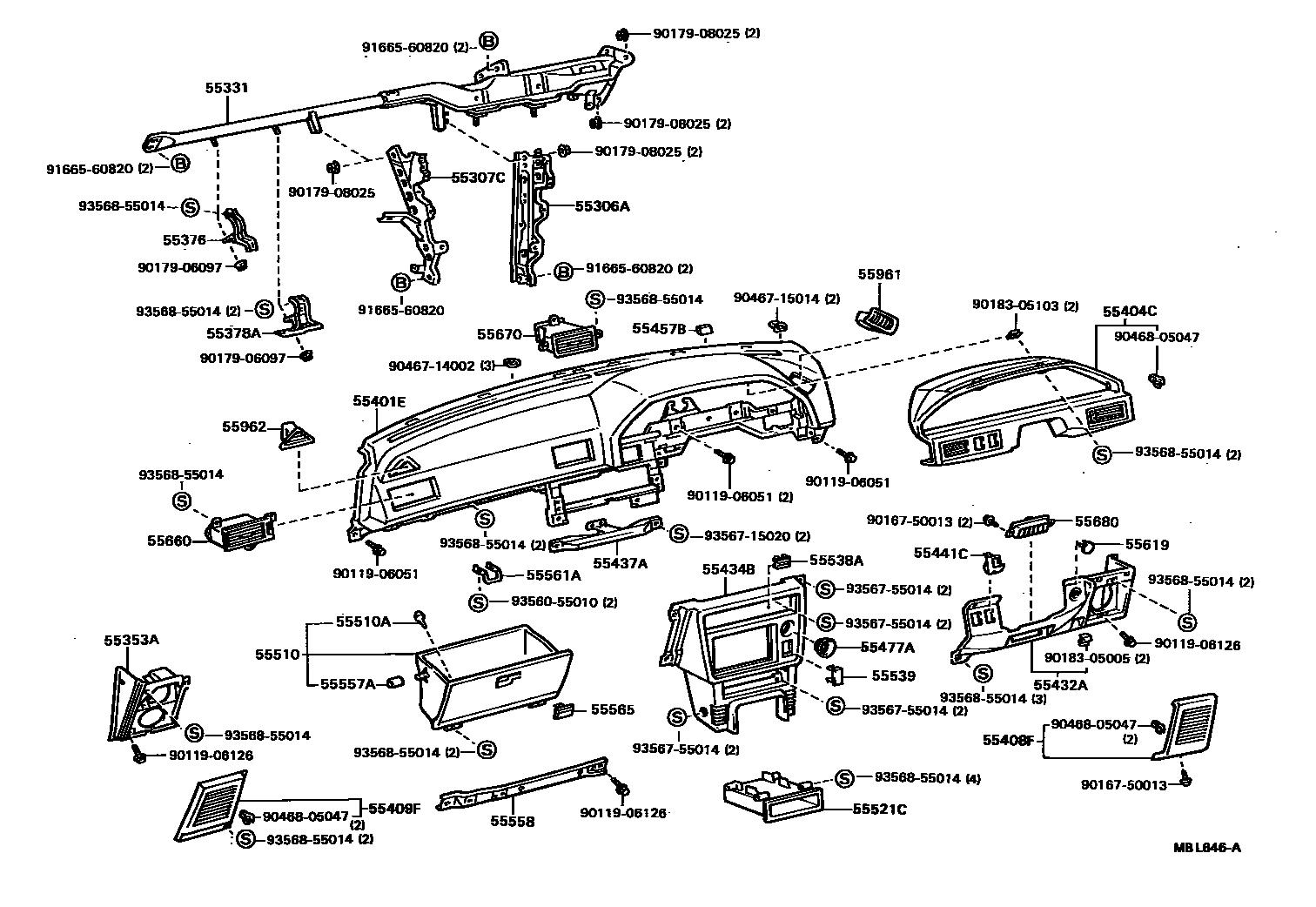

INSTRUMENT PANEL & GLOVE COMPARTMENT

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-20060iST16#198708-198908

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-20060iST16#198708-198908

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20070iST16#198708-198908

55353ABRACKET, SPEAKER MOUNTING, NO.1

main55353-20050-01iST16#198708-198908

BLACK,TRIM2#

main55353-20050-04iST16#198708-198908

DEEP BLUE,TRIM8#

main55353-20050-16iST16#198708-198908

SABLE,TRIM4#

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-20030iST16#198708-198908

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-20080iST16#198708-198908

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-20420-01iST16#198708-198908

BLACK,TRIM2#

main55401-20420-04iST16#198708-198908

DEEP BLUE,TRIM8#

main55401-20420-16iST16#198708-198908

SABLE,TRIM4#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-20181-01iST16#198708-198908

BLACK,TRIM2#

main55404-20181-04iST16#198708-198908

DEEP BLUE,TRIM8#

main55404-20181-16iST16#198708-198908

SABLE,TRIM4#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-20090-01iST16#198708-198908

BLACK,TRIM2#

main55472-20090-04iST16#198708-198908

DEEP BLUE,TRIM8#

main55472-20090-16iST16#198708-198908

SABLE,TRIM4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-20080-01iST16#198708-198908

BLACK,TRIM2#

main55473-20080-04iST16#198708-198908

DEEP BLUE,TRIM8#

main55473-20080-16iST16#198708-198908

SABLE,TRIM4#

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-20170-01iST16#198708-198908

BLACK,TRIM2#

main55432-20170-04iST16#198708-198908

DEEP BLUE,TRIM8#

main55432-20170-16iST16#198708-198908

SABLE,TRIM4#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-20050-01iST16#198708-198908

BLACK,TRIM2#

main55434-20050-04iST16#198708-198908

DEEP BLUE,TRIM8#

main55434-20050-16iST16#198708-198908

SABLE,TRIM4#

55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

main55437-20040iST16#198708-198908

55441CBOX, INSTRUMENT PANEL COIN

main55441-20140-11iST16#198708-198908

BLACK,TRIM2#

main55441-20140-24iST16#198708-198908

DEEP BLUE,TRIM8#

main55441-20140-26iST16#198708-198908

SABLE,SABLE,TRIM4#

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55355-20060×2iST16#198901-198908

main55457-22030×5iST16#198708-198901

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-20060iST16#198708-198908

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-20110-01iST16#198708-198805

BLACK,TRIM2#

main55550-20110-04iST16#198708-198805

DEEP BLUE,TRIM8#

main55550-20110-16iST16#198708-198805

SABLE,TRIM4#

main55550-20111-01iST16#198805-198908

BLACK,TRIM2#

main55550-20111-04iST16#198805-198908

DEEP BLUE,TRIM8#

main55550-20111-06iST16#198805-198908

SABLE,SABLE,TRIM4#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×3iST16#198708-198908

55521CCOVER, STEREO OPENING

main55521-16010iST16#..F,G,L,S198708-198908

55538ACOVER, COOLER SWITCH HOLE

main55538-20050iST160..F,L198708-198805

55539COVER, SPARE SWITCH HOLE

main55539-32010-11iST16#198708-198908

BLACK,TRIM2#,4#,8#,CENTER FINISH PANEL

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010×2iST16#198708-198908

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-20060iST16#198708-198908

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-20050iST16#198708-198908

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-20040-01iST16#198708-198908

NEW BLACK,TRIM2#

main55565-20040-04iST16#198708-198908

DEEP BLUE,TRIM8#

main55565-20040-16iST16#198708-198908

SABLE,SABLE,TRIM4#

55619COVER, SWITCH HOLE

main55619-14010-11iST16#198708-198908

BLACK,TRIM2#

main55619-14010-24iST16#198708-198908

DEEP BLUE,TRIM8#

main55619-14010-26iST162;ST163..L198808-198908

SABLE,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20061-01iST16#198708-198908

BLACK,TRIM2#

main55660-20061-04iST16#198708-198908

DEEP BLUE,TRIM8#

main55660-20061-16iST16#198708-198908

SABLE,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-20051-01iST16#198708-198908

BLACK,TRIM2#

main55670-20051-04iST16#198708-198908

DEEP BLUE,TRIM8#

main55670-20051-16iST16#198708-198908

SABLE,TRIM4#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-32010iST16#198708-198903

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-20090-01iST16#198708-198908

BLACK,TRIM2#

main55961-20090-04iST16#198708-198908

DEEP BLUE,TRIM8#

main55961-20090-16iST16#198708-198908

SABLE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-20090-01iST16#198708-198908

BLACK,TRIM2#

main55962-20090-04iST16#198708-198908

DEEP BLUE,TRIM8#

main55962-20090-16iST16#198708-198908

SABLE,TRIM4#

9011906051

main90119-06051

9011906126

main90119-06126

9016750013

main90167-50013

9017906097

main90179-06097

9017908025

main90179-08025

9018305005

main90183-05005

9018305103

main90183-05103

9046714002

main90467-14002

9046715014

main90467-15014

9046805047

main90468-05047

9166560820

main91665-60820

9356055010

main93560-55010

9356715020

main93567-15020

9356755014

main93567-55014

9356855014

main93568-55014

46 parts on this diagram · 1 diagram in section
