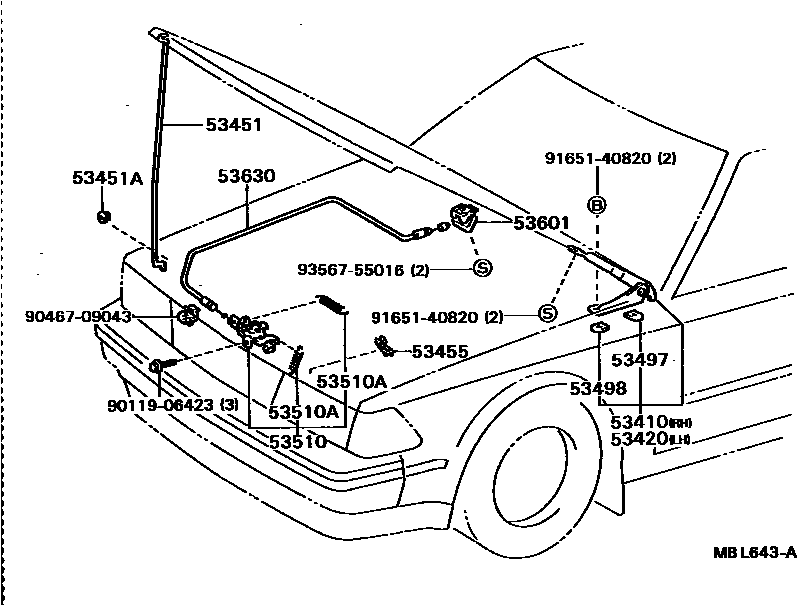

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-20080iST16#198708-198808

main53410-20081iST16#198808-198908

53420HINGE ASSY, HOOD, LH

main53420-20070iST16#198708-198808

main53420-20071iST16#198808-198908

53451ROD, HOOD SUPPORT

main53451-20040iST16#198708-198908

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15011iST16#198708-198908

53455CLAMP, HOOD SUPPORT ROD

main53455-20010iST16#198708-198908

53497PAD, HOOD HINGE, NO.1

main53497-32030iST16#198708-198808

main53497-32031iST16#198808-198908

53498PAD, HOOD HINGE, NO.2

main53498-12010iST16#198708-198808

main53498-12011iST16#198808-198908

53510LOCK ASSY, HOOD

main53510-20140iST16#198708-198908

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iST16#198708-198908

main90506-20008iST16#198708-198908

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-12030-11iST16#198708-198908

NEW BLACK,TRIM2#

main53601-20060-01iST16#198708-198908

BLACK,TRIM2#

main53601-20060-24iST16#198708-198908

DEEP BLUE,TRIM8#

main53601-20060-36iST16#198708-198908

BROWN,TRIM4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-20150iST16#198708-198908

9011906423

main90119-06423

9046709043

main90467-09043

9165140820

main91651-40820

9356755016

main93567-55016

15 parts on this diagram · 1 diagram in section
