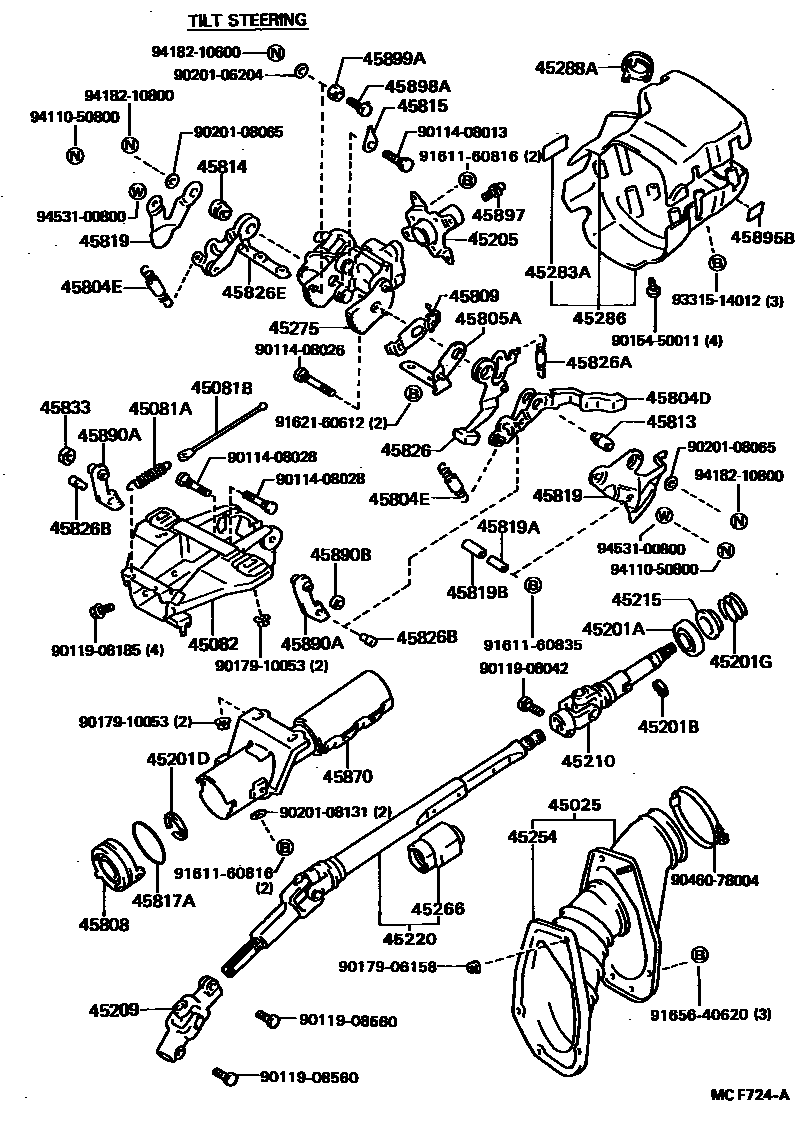

STEERING COLUMN & SHAFT

0001 1 0002 1

45025COVER, STEERING INTERMEDIATE SHAFT

main45025-20150iST16#198708-198908

45081ASPRING, TENSION(FOR TILT STEERING)

main90506-29010×2iST16#..F,G,L,S198708-198908

main90506-32003×2iST16#..X; ST162..G198708-198908

45081BCORD(FOR TILT STEERING)

main90945-02052×2iST16#..X; ST162..G198708-198908

main90945-02086×2iST16#..X; ST162..G198708-198908

main90945-02087×2iST16#..F,G,L,S198708-198908

main90945-02090×2iST16#..F,G,L,S198708-198908

45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE

main45082-20050iST16#..F,G,L,S198708-198908

main45082-20060iST16#..X; ST162..G198708-198908

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-28001iST16#..F,G,L,S198708-198908

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17002iST162..G198708-198809

main90520-17042iST16#..F,G,L,S198708-198908

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iST16#198708-198908

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-45011iST16#..F,G,L,S198708-198908

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-20200iST16#..F,G,L,S198708-198809

main45205-20201iST16#..F,G,L,S198809-198908

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-32020iST16#198708-198908

45210SHAFT ASSY, STEERING MAIN

main45210-14150iST16#..X; ST162..G198708-198809

main45210-14151iST16#..X; ST162..G198809-198908

main45210-20200iST16#..F,G,L,S198708-198908

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-22011iST16#..F,G,L,S198708-198908

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-20030iST16#..F,G,L,S198708-198908

main45220-20060iST16#..X; ST162..G198708-198908

main45220-20130iST162..X198805-198908

45254SHIELD, STEERING COLUMN HOLE

main45254-20100iST16#198708-198908

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-20010iST16#198708-198908

45275BRACKET, STEERING COLUMN, UPPER

main45280-20290iST16#..G,L,S198708-198908

main45280-20340iST162..G,S198708-198808

main45280-20351iST16#..X; ST162..G198708-198908

main45280-20352iST16#..X; ST162..G198908-198908

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iST16#198708-198908

45286COVER, STEERING COLUMN

main45287-20903-01iST16#..F,G,L,S198708-198908

BLACK,TRIM2#

main45287-20903-04iST16#..F,G,L,S198708-198908

DEEP BLUE,TRIM8#

main45287-20903-16iST16#..F,G,L,S198708-198908

BROWN,TRIM4#

main45287-20907-01iST16#..X; ST162..G198708-198908

main45287-20907-04iST16#..X; ST162..G198708-198908

main45287-20907-16iST16#..X; ST162..G198708-198908

45288ASPACER, COLUMN COVER

main45288-30010iST16#..F,G,L,S198708-198908

45804DLEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL)

main45804-20030iST16#..F,G,L,S198708-198908

main45804-20080iST16#..X; ST162..G198708-198908

45804ESPRING, TENSION(FOR STEERING TILT LEVER)

main90507-13001×2iST16#..F,G,L,S198708-198908

main90507-13002×2iST16#..X; ST162..G198708-198908

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-20010iST16#198708-198907

main45805-20011iST16#198907-198908

45808STOPPER SUB-ASSY, STEERING SHAFT THRUST

main45808-20030iST16#198708-198908

main45808-32010iST162..G198708-198908

45809COVER SUB-ASSY, ADJUSTER MEMORY

main45809-20050iST16#..F,G,L,S198708-198908

main45809-20060iST16#..X; ST162..G198708-198908

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-20020iST16#198708-198908

main45813-20030iST16#198708-198908

main45813-20040iST16#198708-198908

main45813-20050iST16#198708-198908

main45813-20060iST16#198708-198908

45814COLLAR, TILT STEERING SUPPORT, NO.2

main45814-20010iST16#198708-198908

main45814-20020iST16#198708-198908

main45814-20030iST16#198708-198908

main45814-20040iST16#198708-198908

main45814-20050iST16#198708-198908

45815SHIM, TILT STEERING SUPPORT

main45815-20010iST16#198708-198908

main45815-20020iST16#198708-198908

main45815-20030iST16#198708-198908

main45815-20040iST16#198708-198908

main45815-20050iST16#198708-198908

45817STOPPER, STEERING SHAFT THRUST

main45817-14010iST16#..X; ST162..G198708-198908

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main90301-54002iST16#198708-198908

45819RETAINER, TILT LEVER

main45819-20010iST16#..F,G,L,S198708-198908

main45819-20020iST16#198708-198908

main45819-20030iST16#..X; ST162..G198708-198908

45819ACOLLAR(FOR TILT LEVER RETAINER)

main90387-08046iST16#198708-198908

45819BCUSHION(FOR TILT LEVER RETAINER)

main90540-11007iST16#198708-198908

45826LEVER, STEERING TILT

main45826-20050iST16#..F,G,L,S198708-198908

main45826-20070iST16#..X; ST162..G198708-198908

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-09005iST16#..X; ST162..G198708-198908

main90507-11006iST16#..F,G,L,S198708-198908

45826BPIN(FOR STEERING TILT LEVER)

main90241-06039×2iST16#198708-198908

45826ELEVER, STEERING TILT(FOR TILT ADJUST)

main45804-20040iST16#..X; ST162..G198708-198907

main45804-20041iST16#..X; ST162..G198907-198908

main45804-20070iST16#..F,G,L,S198708-198908

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-20020iST16#198708-198908

45870TUBE ASSY, STEERING COLUMN

main45870-20180iST16#..F,G,L,S198708-198908

main45870-20190iST16#..X; ST162..G198708-198908

main45870-20210iST162..G198708-198908

45890APAWL ASSY, TILT STEERING

main45890-20070iST16#198708-198908

main45890-20080iST16#198708-198908

45890BSPACER(FOR TILT STEERING PAWL)

main90560-13008iST16#198708-198908

45895BPLATE, TILT LEVER INSTRUCTION

main45895-20060iST16#..F,G,L,S198708-198908

main45895-32010iST16#..X; ST162..G198708-198908

45897BOLT, STEERING LOCK SET

main45897-12020iST16#..F,G,L,S198708-198908

45898ABOLT, RETURN SPRING SET

main45898-22010iST16#198708-198908

45899ACOVER, TILT STEERING SUPPORT STOPPER

main45899-22020iST16#198708-198908

9011408013

main90114-08013

9011408026

main90114-08026

9011408028

main90114-08028

9011908042

main90119-08042

9011908185

main90119-08185

9011908560

main90119-08560

9015450011

main90154-50011

9017906158

main90179-06158

9017910053

main90179-10053

9020106204

main90201-06204

9020108065

main90201-08065

9020108131

main90201-08131

9046078004

main90460-78004

9161160816

main91611-60816

9161160835

main91611-60835

9162160612

main91621-60612

9165640620

main91656-40620

9331514012

main93315-14012

9411050800

main94110-50800

9418210600

main94182-10600

9418210800

main94182-10800

9453100800

main94531-00800

66 parts on this diagram · 2 diagrams in section
