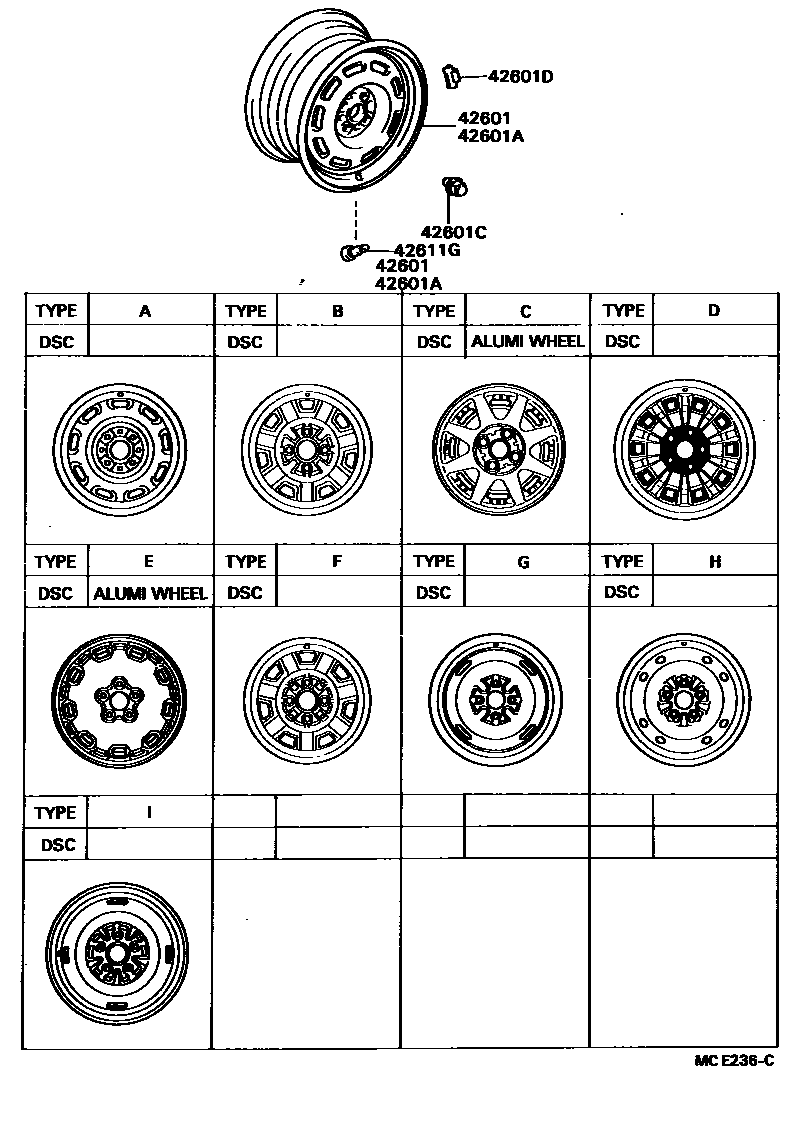

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-20300-03iST160,163..F198708-198908

sub42611-20300

main42611-20330-03iST163..X198708-198908

sub42611-20330

main42611-20330-03iST163..L198808-198908

sub42611-20330

main42611-20350iST163198708-198808

main42611-20350iST163198808-198908

main42611-20360-01iST162198708-198908

sub42611-20360

main42611-20360-01iST162..S198801-198908

sub42611-20360

main42611-20410-03iST160,163..L198708-198908

sub42611-20410

main42611-20470iST162..S,X198805-198908

main42611-20470iST162..G198708-198908

main42611-20470iST162..S198801-198908

main42611-20640iST162..X198808-198908

42601AWHEEL, DISC (FOR SPARE)

main42611-16200iST163198708-198908

main42611-20380iST162..G198708-198712

sub42611-20610

main42611-20610iST162..S198801-198908

main42611-20610iST162..G198712-198908

42601CNUT, HUB (FOR AXLE)

main90942-01021iST16#..F,L,S,X198708-198908

main90942-01021iST162..S198801-198908

main90942-01058iST162..S,X198805-198908

main90942-01058iST162..G198708-198908

main90942-01060iST163198708-198908

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iST16#198708-198908

main90942-03020iST16#198708-198908

main90942-03022iST16#198708-198908

main90942-03025iST16#198708-198908

main90942-03027iST16#198708-198908

main90942-03029iST16#198708-198908

main90942-03031iST16#198708-198908

main90942-03041iST16#198708-198908

main90942-03098iST16#198708-198908

main90942-03099iST16#198708-198908

main90942-03100iST16#198708-198908

main90942-03101iST16#198708-198908

main90942-03102iST16#198708-198908

main90942-03108iST16#198708-198908

main90942-03109iST16#198708-198908

main90942-03146iST16#..F,G,S,X198708-198805

main90942-03146iST16#198805-198908

main90942-03147iST16#198805-198908

main90942-03147iST16#..F,G,S,X198708-198805

main90942-03148iST16#198805-198908

main90942-03148iST16#..F,G,S,X198708-198805

main90942-03149iST16#198805-198908

main90942-03149iST16#..F,G,S,X198708-198805

main90942-03150iST16#..F,G,S,X198708-198805

main90942-03150iST16#198805-198908

main90942-03151iST16#198805-198908

main90942-03151iST16#..F,G,S,X198708-198805

main90942-03152iST16#..F,G,S,X198708-198805

main90942-03152iST16#198805-198908

main90942-03153iST16#..F,G,S,X198708-198805

main90942-03153iST16#198805-198908

main90942-03154iST16#198805-198908

main90942-03154iST16#..F,G,S,X198708-198805

main90942-03155iST16#198805-198908

main90942-03155iST16#..F,G,S,X198708-198805

main90942-03156iST16#198805-198908

main90942-03156iST16#..F,G,S,X198708-198805

main90942-03157iST16#198805-198908

main90942-03157iST16#..F,G,S,X198708-198805

main90942-03158iST16#198805-198908

main90942-03158iST16#..F,G,S,X198708-198805

main90942-03159iST16#198805-198908

main90942-03159iST16#..F,G,S,X198708-198805

main90942-03160iST16#198805-198908

main90942-03160iST16#..F,G,S,X198708-198805

main90942-03161iST16#198708-198908

main90942-03167iST16#198805-198908

main90942-03167iST16#..F,G,S,X198708-198805

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iST16#198708-198908

5 parts on this diagram · 2 diagrams in section
