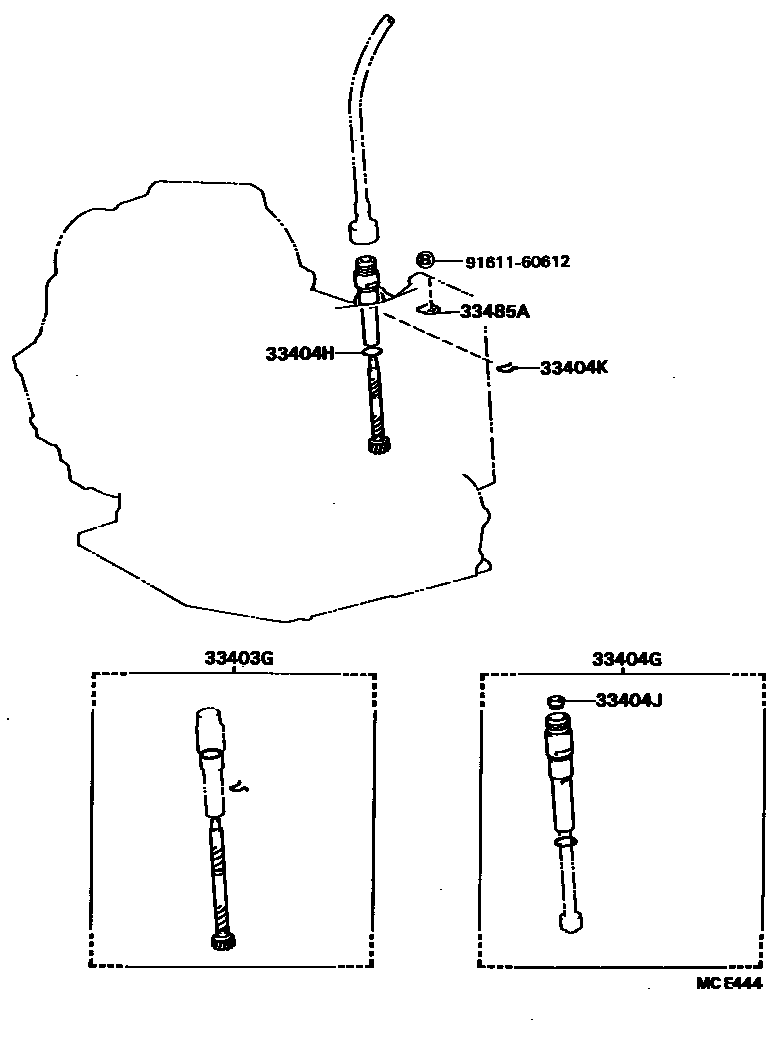

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39096iST16#..4FC..(F,L,S,X)198708-198908

main33403-39106iST162..4FC..G198708-198908

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-32010iST16#..4FC198708-198908

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iST16#..4FC198708-198908

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iST16#..4FC198708-198908

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iST16#..4FC198708-198908

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-14010iST16#..4FC198708-198908

9161160612

main91611-60612

7 parts on this diagram · 1 diagram in section
