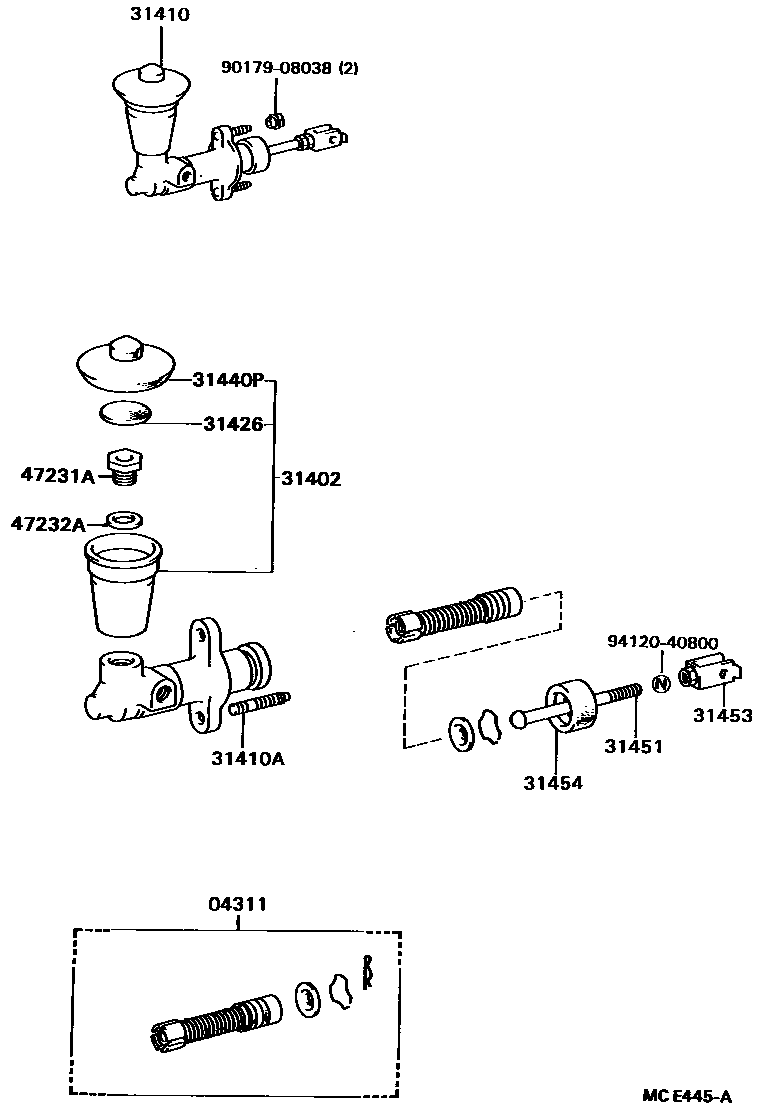

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-32023iST16#..5F198708-198908

sub04311-32030

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iST16#..5F198708-198908

31410CYLINDER ASSY, CLUTCH MASTER

main31410-20193iST16#..5F198708-198710

PLANT NO.A41,A42

sub31410-20194

main31410-20194iST16#..5F198710-198908

PLANT NO.A41,A42

sub31410-20411

main31410-20281iST16#..5F198708-198710

PLANT NO.A51-A54

sub31410-20282

main31410-20282iST16#..5F198710-198908

PLANT NO.A51-A54

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iST16#..5F198708-198908

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iST16#..5F198708-198908

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iST16#..5F198708-198908

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-32010iST16#..5F198708-198908

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-35010iST16#..5F198708-198908

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iST16#..5F198708-198908

47231ABOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iST16#..5F198708-198908

47232AWASHER, CLUTCH MASTER CYLINDER RESERVOIR SET BOLT

main47232-30010iST16#..5F198708-198908

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
