STARTER

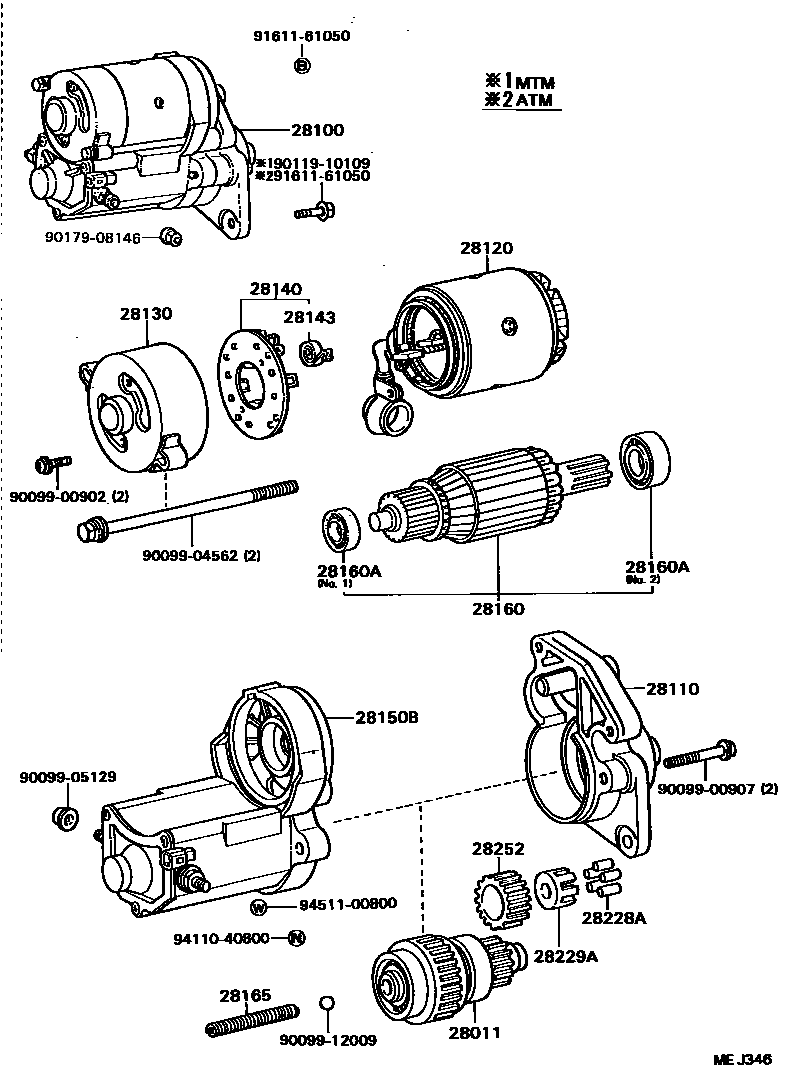

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i198708-198908

main28011-74010i198708-198805

main28011-74011i198805-198908

28100STARTER ASSY

main28100-63020i198708-198805

main28100-63050i198708-198908

main28100-74010i198708-198805

main28100-74011i198805-198908

28110HOUSING ASSY, STARTER DRIVE

main28110-63020i198708-198805

main28110-63050i198708-198908

main28110-74010i198708-198908

28120YOKE ASSY, STARTER

main28120-26071i198708-198908

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i198708-198908

main28130-63020i198708-198805

main28130-74010i198708-198908

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i198708-198908

main28140-74010i198708-198908

28143SPRING, STARTER BRUSH

main90099-17112×4i198708-198908

28150BSWITCH ASSY, MAGNETIC

main28150-63021i198708-198805

main28150-63050i198708-198908

main28150-74010i198708-198908

28160ARMATURE ASSY, STARTER

main28160-26070i198708-198908

28160ABEARING, STARTER ARMATURE

main28253-45020i198708-198908

main90099-10113i198708-198908

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i198708-198908

main28165-74010i198708-198908

28228AROLLER, STARTER CLUTCH

main28228-26040×5i198708-198908

28229ARETAINER, STARTER IDLE GEAR

main28229-26040i198708-198908

28252GEAR, STARTER IDLE

main28254-45020i198708-198908

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9011910109

main90119-10109

9017908146

main90179-08146

9161161050

main91611-61050

9411040800

main94110-40800

9451100800

main94511-00800

24 parts on this diagram · 3 diagrams in section
