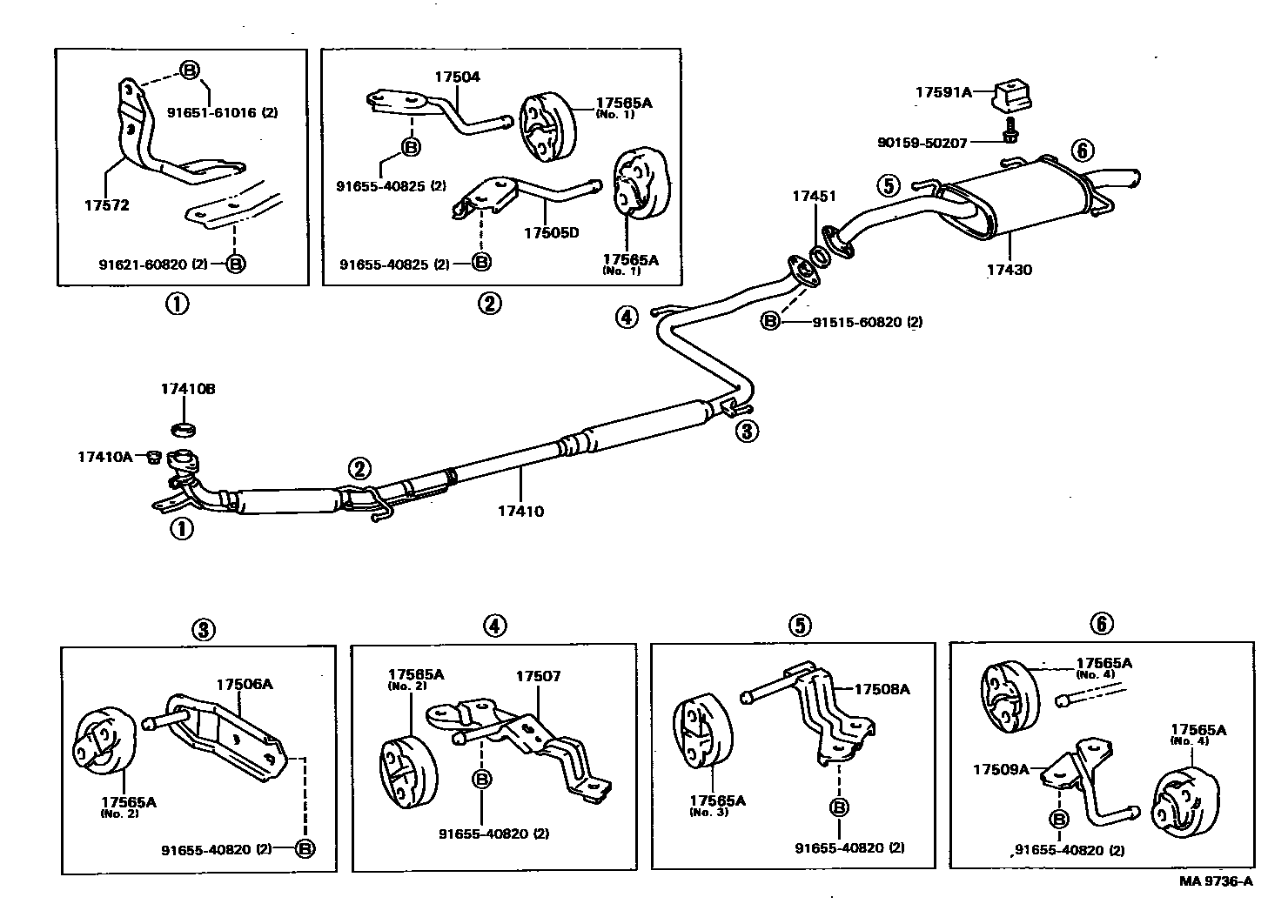

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-63110i1SILU..ST160198708-198805

main17410-74320i3SGELU..ST162198708-198908

main17410-74360i3SFE..ST162198708-198908

main17410-74530i4SFI..ST163198805-198908

main17410-74540i3SFE..ST162..X198805-198908

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×2i1SILU..ST160198708-198805

17410BGASKET, EXHAUST PIPE

main90917-06004i1SILU..ST160198708-198805

main90917-06005i3SFE,4SFI..ST162,163198708-198908

17430PIPE ASSY, EXHAUST, TAIL

main17430-63100i1SILU..ST160198708-198805

main17430-74100i3SGELU..ST162198708-198908

main17430-74360i3SFE..ST162198708-198805

main17430-74530i3SFE,4SFI..ST16#198805-198908

17451GASKET, EXHAUST PIPE

main90917-06004i1SILU..ST160198708-198805

main90917-06012i3SFE,4SFI..ST162,163198708-198908

main90917-06031i3SGELU..ST162198708-198908

main90917-06032i3SGELU..ST162198708-198908

17504BRACKET SUB-ASSY, CATALYTIC CONVERTER

main17504-74040i1SILU,3S#,4SFI..ST16#198708-198908

17505DBRACKET SUB-ASSY, CONVERTER SUPPORT, LH

main17505-74020i1SILU,3S#,4SFI..ST16#198708-198908

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-74010i1SILU,3S#,4SFI..ST16#198708-198908

NO.2

main17506-74020i3SGELU..ST162198908-198908

NO.1

main17506-74030i3SGELU..ST162198708-198908

NO.1

17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT

main17507-74010i1SILU,3S#,4SFI..ST16#198708-198908

17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT

main17508-74010i1SILU,3S#,4SFI..ST16#198708-198908

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-74010i1SILU,3S#,4SFI..ST16#198708-198908

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-16080×2i1SILU,3S#,4SFI..ST16#..5F198708-198908

main17565-63020i1SILU,3S#,4SFI..ST16#..4FC198708-198908

main17565-63030×2i1SILU,3S#,4SFI..ST16#..4FC; 1SILU,3S#,4SFI..ST16#..5F198708-198908

main17565-63060×2i1SILU,3S#,4SFI..ST16#..4FC; 1SILU,3S#,4SFI..ST16#..5F198708-198908

main17565-63071×2i1SILU,3S#,4SFI..ST16#..5F198708-198908

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17571-63040i1SILU..ST160198708-198805

main17571-74090i3SFE,4SFI..ST162,163198708-198908

17591ASTOPPER, EXHAUST PIPE SUPPORT

main17591-74010i1SILU,3S#,4SFI..ST16#198708-198908

9015950207

main90159-50207

9151560820

main91515-60820

9162160820

main91621-60820

9165161016

main91651-61016

9165540820

main91655-40820

9165540825

main91655-40825

20 parts on this diagram · 3 diagrams in section
