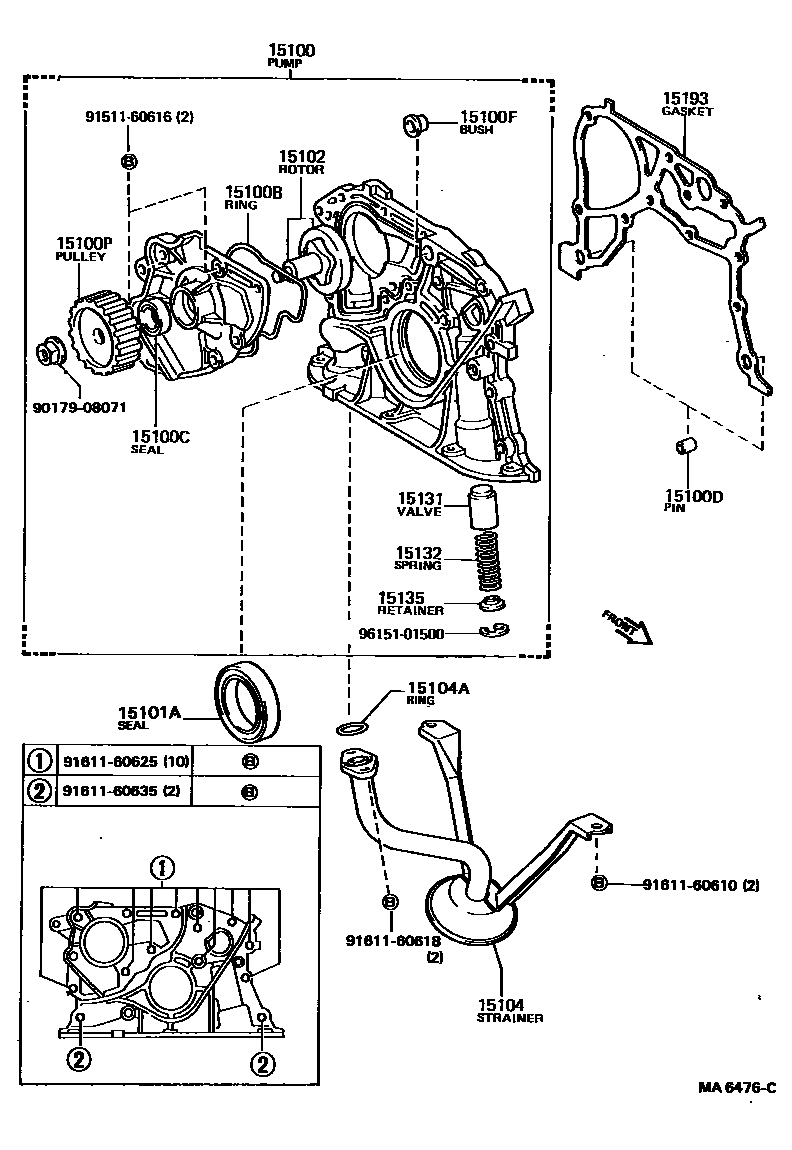

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-63010i1SILU..ST160198708-198805

main15100-74010i3SFE,4SFI..ST162,163198708-198908

main15100-88360i3SGELU..ST162198708-198908

15100BRING, O(FOR OIL PUMP)

main15188-63010i1SILU,3S#,4SFI..ST16#198708-198908

15100CSEAL(FOR OIL PUMP)

main15165-70010i1SILU,3S#,4SFI..ST16#198708-198908

15100DPIN(FOR OIL PUMP SET)

main90253-09001×2i1SILU,3S#,4SFI..ST16#198708-198908

15100FBUSH (FOR OIL PUMP)

main90029-38300i1SILU,3S#,4SFI..ST16#198708-198908

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-63010i1SILU..ST160198708-198805

main13524-74020i3SFE,4SFI..ST162,163198708-198908

main13524-88360i3SGELU..ST162198708-198908

15101ASEAL(FOR CRANKSHAFT)

main90311-42003i1SILU,3S#,4SFI..ST16#198708-198908

15102ROTOR SET, OIL PUMP

main15102-63010i1SILU,3S#,4SFI..ST16#198708-198908

15104STRAINER SUB-ASSY, OIL

main15104-63021i1SILU..ST160198708-198805

main15104-88360i3SFE,4SFI..ST162,163198708-198908

main15104-88361i3SGELU..ST162198708-198903

main15104-88380i3SGELU..ST162198903-198908

15104ARING, O(FOR OIL STRAINER)

main96721-19020i1SILU..ST160198708-198805

15131VALVE, OIL PUMP RELIEF

main15131-24010i1SILU,3S#,4SFI..ST16#198708-198908

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i1SILU,3S#,4SFI..ST16#198708-198908

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i1SILU,3S#,4SFI..ST16#198708-198908

15193GASKET, OIL PUMP

main15197-63020i1SILU,3S#,4SFI..ST16#198708-198907

main15197-63021i3S#,4SFI..ST16#198907-198908

9017908071

main90179-08071

9151160616

main91511-60616

9161160610

main91611-60610

9161160618

main91611-60618

9161160625

main91611-60625

9161160635

main91611-60635

9615101500

main96151-01500

21 parts on this diagram · 3 diagrams in section
