SHORT BLOCK ASSEMBLY

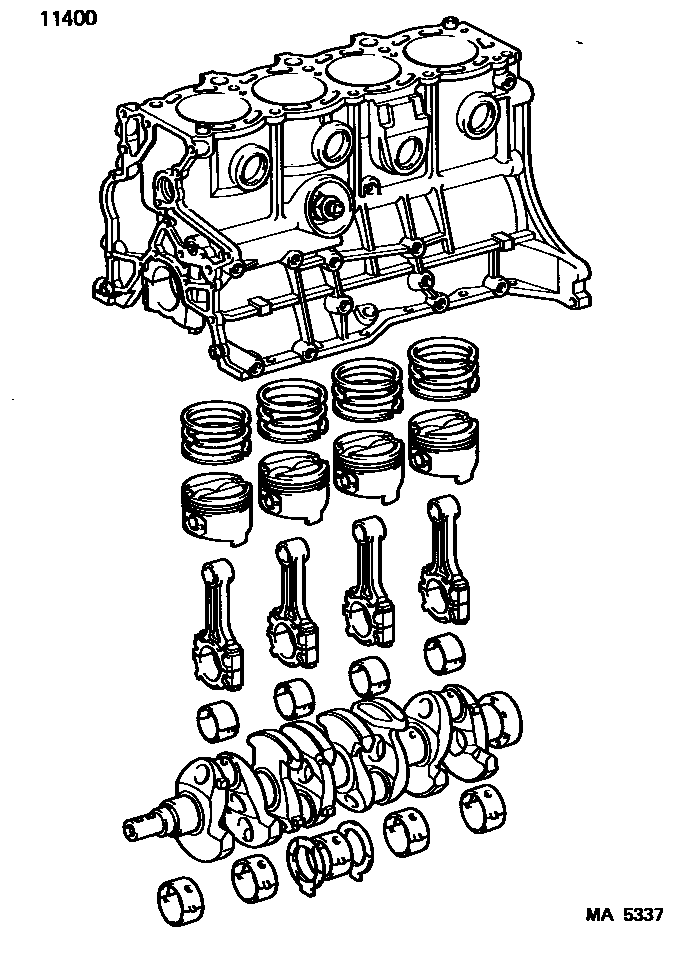

Parts diagram

11400BLOCK ASSY, SHORT

main11400-63012i198708-198908

main11400-74050i198708-198905

main11400-74052i198905-198906

main11400-74054i198906-198908

main11400-74110i198805-198905

main11400-74111i198905-198908

main11400-88364i198906-198907

main11400-88370i198708-198906

main11400-88373i198907-198908

1 parts on this diagram · 1 diagram in section
