STANDARD TOOL

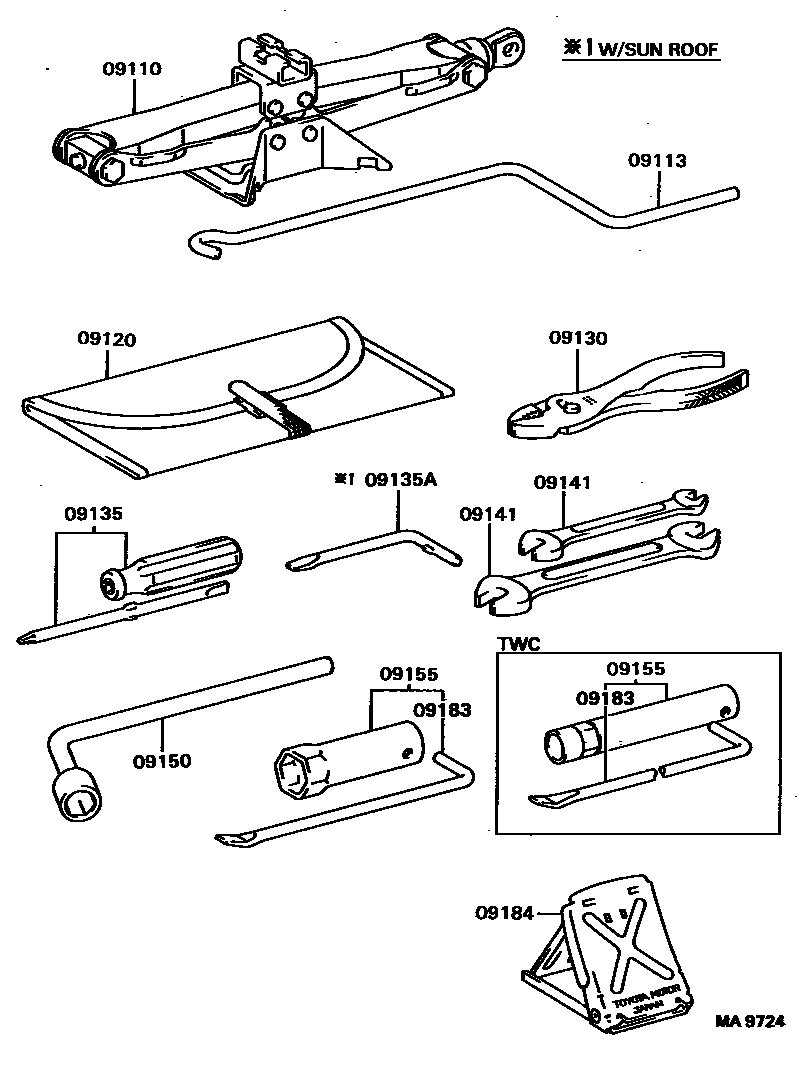

Parts diagram

09110JACK ASSY

main09111-20060i198708-198908

09113HANDLE, JACK

main09113-20030i198708-198908

09120BAG, TOOL

main09120-10030i198708-198908

09130PLIERS

main99913-11500i198708-198908

09135DRIVER, SCREW

main99915-10700i198708-198908

09135ABIT, SCREW DRIVER

main09135-00012i198708-198908

09141SPANNER

main99914-10810i198708-198908

main99914-11214i198708-198908

09150WRENCH, HUB NUT BOX

main09150-26010i198708-198908

09155WRENCH, SPARK PLUG

main09155-32010i198708-198908

main09155-41020i198708-198805

main09155-74020i198708-198908

09183WRENCH, WHEEL CAP

main09183-00010i198708-198908

09184STOPPER, WHEEL

main09184-00010i198708-198908

11 parts on this diagram · 1 diagram in section
