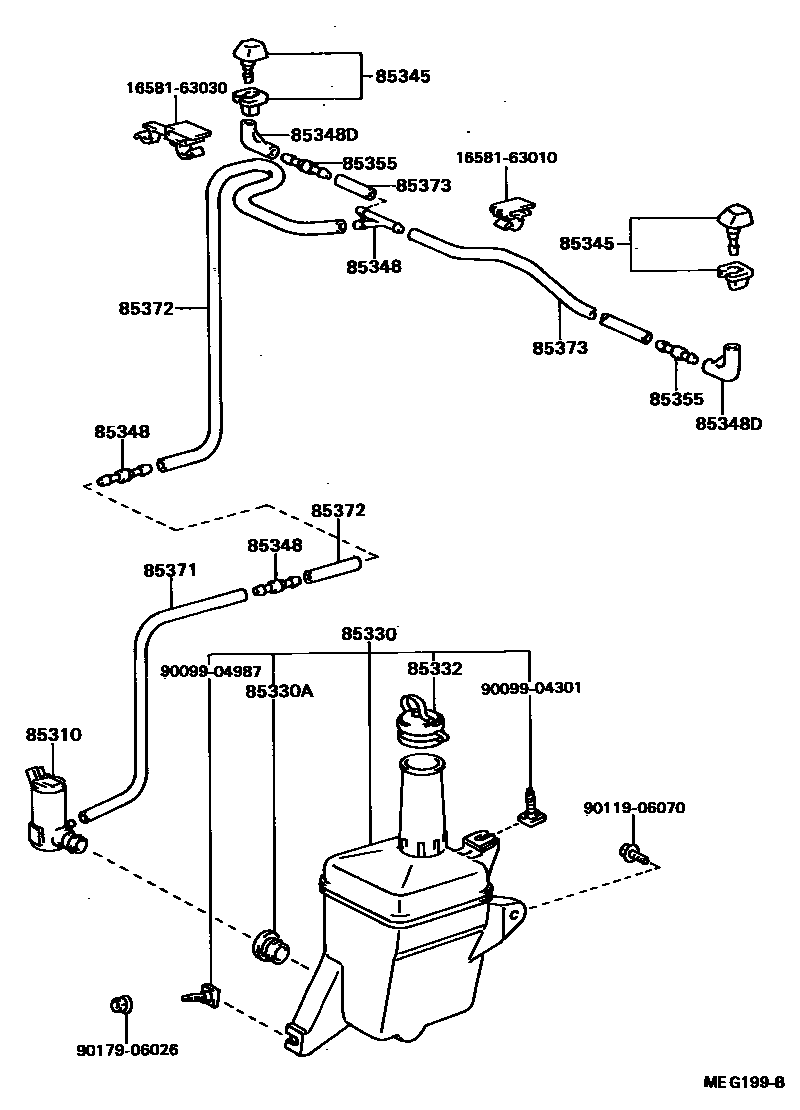

WINDSHIELD WASHER

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iST16#198508-198708

85330JAR ASSY, WINDSHIELD WASHER

main85331-20340iST16#198508-198708

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iST16#198508-198708

85332CAP, WINDSHIELD WASHER JAR

main85332-20431iST16#198508-198708

85345NOZZLE, WINDSHIELD WASHER

main85035-20170iST16#198508-198708

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iST16#198508-198708

3WAY

main85349-89122iST16#198508-198708

2WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iST16#198705-198708

main85355-20070iST16#198508-198705

sub85355-14481

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250iST16#198508-198708

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iST16#198508-198708

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299iST16#198508-198708

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iST16#198508-198708

1658163010CLAMP, HOSE(FOR WATER HOSE)

main16581-63010

1658163030CLAMP, HOSE(FOR WATER HOSE)

main16581-63030

9009904301

main90099-04301

9009904987

main90099-04987

9011906070

main90119-06070

9017906026

main90179-06026

17 parts on this diagram · 1 diagram in section
