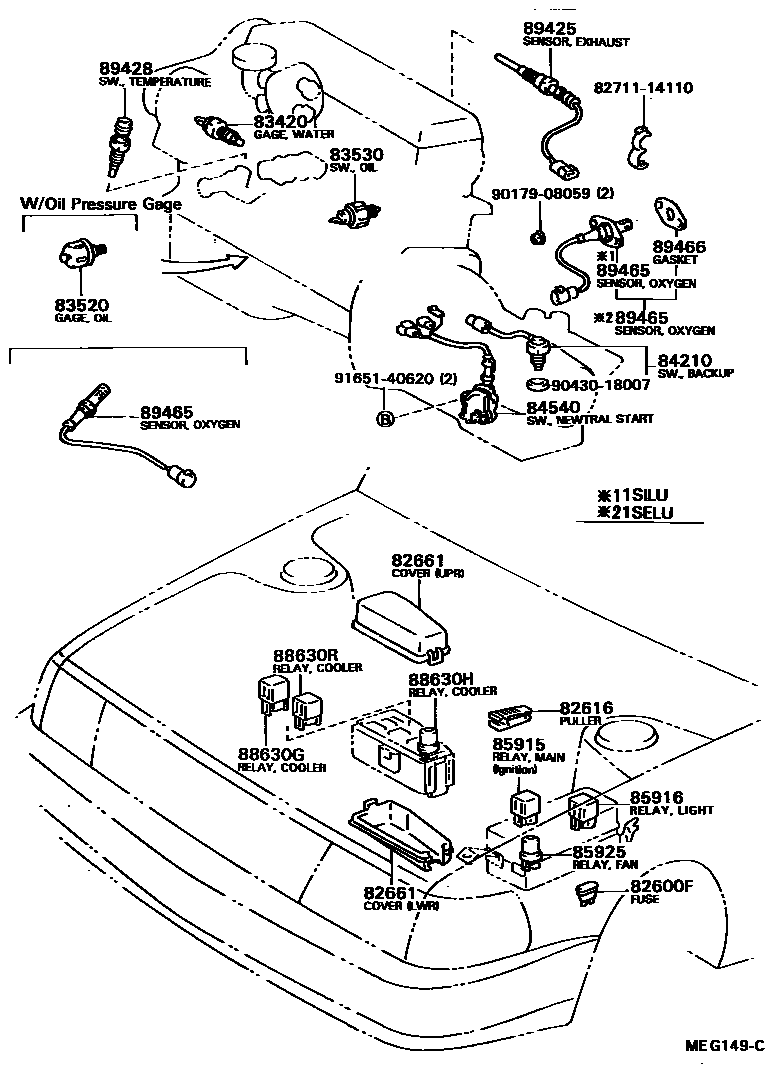

SWITCH & RELAY & COMPUTER
82600FFUSE, FUSE BLOCK
82616PULLER, FUSE
82661COVER, RELAY BLOCK, NO.1
UPR
LWR
83420GAGE ASSY, WATER TEMPERATURE SENDER
83520GAGE ASSY,OIL PRESSURE SENDER
W/*DS
W/*DS
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210SWITCH ASSY, BACK-UP LAMP
84540SWITCH ASSY, NEUTRAL START
85915RELAY, MAIN
CORNERING MAIN
IGNITION MAIN
85916RELAY, LIGHT CONTROL
TAIL,MARUKO
TAIL,DENSO
HEAD
85925RELAY, RADIATOR FAN
88630GRELAY ASSY, COOLER
88630HRELAY ASSY, COOLER
88630RRELAY ASSY, COOLER, NO.3
89425SENSOR, EXHAUST GAS TEMPERATURE
89428SWITCH, TEMPERATURE DETECT, NO.2
89465SENSOR, OXYGEN
89466GASKET, OXYGEN SENSOR
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14110
9017908059
main90179-08059
9043018007
main90430-18007
9165140620
main91651-40620
22 parts on this diagram · 6 diagrams in section
