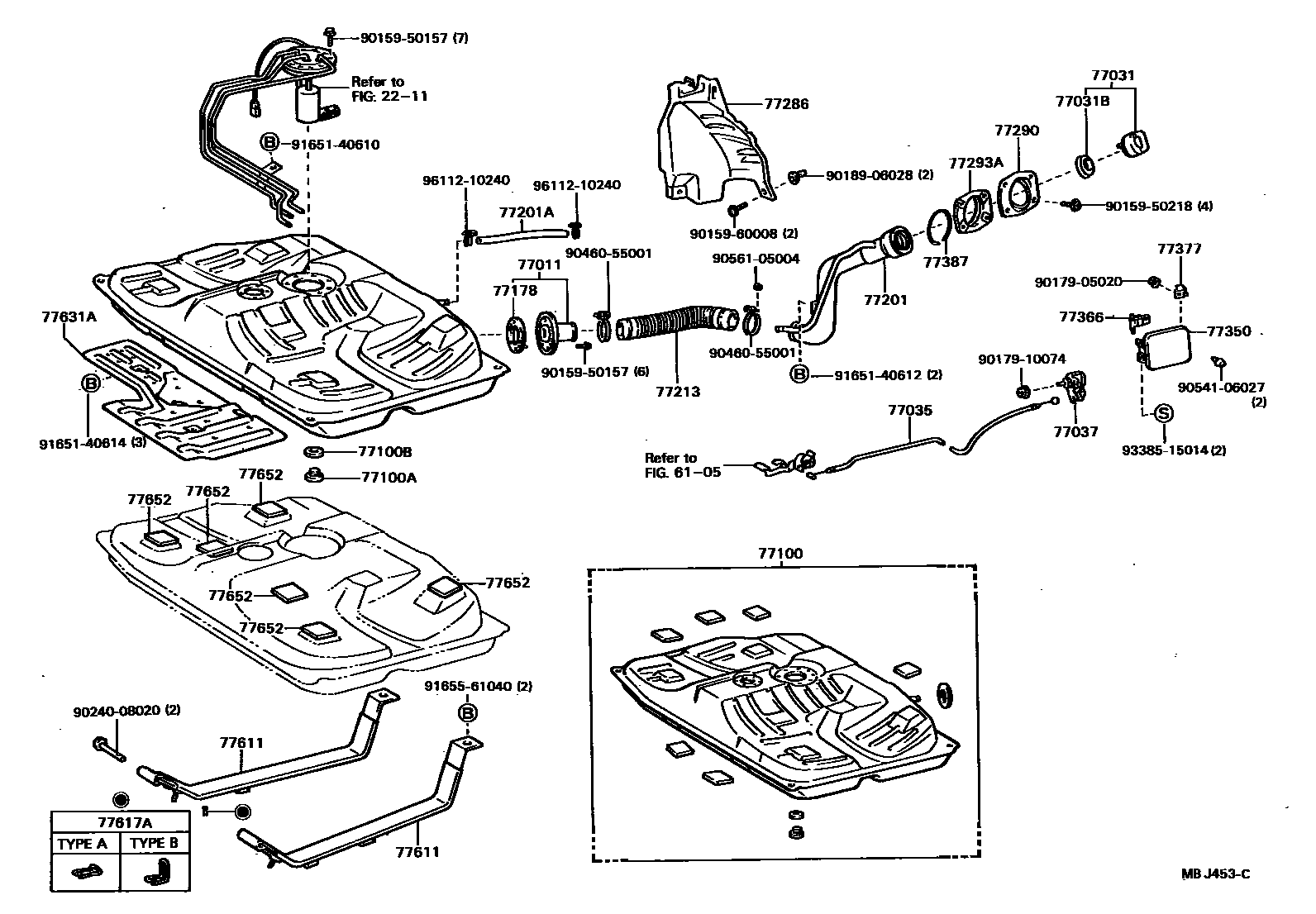

FUEL TANK & TUBE

0001 1 0002 1

2211

6105

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-20010iST16#198508-198609

sub77011-20020

main77011-20020iST16#198609-198708

77031CAP ASSY, FUEL TANK

main77310-12100iST16#198508-198708

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iST16#198508-198708

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-20110iST16#198508-198708

sub77035-32060

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-90K00iST16#198508-198708

77100TANK ASSY, FUEL

main77001-29205iST16#198508-198708

sub77001-29255

77100APLUG(FOR FUEL TANK)

main90341-20004iST16#198508-198708

77100BGASKET(FOR FUEL TANK)

main90430-20007iST16#198508-198708

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20010iST16#198508-198708

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20160iST16#198508-198708

sub77201-20210

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22912iST16#198508-198604

sub90445-22024

main95311-13024iST16#198604-198708

77213HOSE, FUEL TANK SUB INLET

main77213-20080iST16#198508-198708

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-20090iST16#198508-198708

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20020iST16#198508-198708

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20010iST16#198508-198708

77350LID ASSY, FUEL FILLER OPENING

main77350-20070iST16#198508-198708

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-20020iST16#198601-198708

main77360-24010iST16#198508-198601

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iST16#198508-198708

77387RING, FUEL INLET BOX

main77391-16011iST16#198508-198605

main77391-32010iST16#198605-198708

77611BAND, FUEL TANK

main77601-20060iST16#198508-198610

RH

sub77601-20080

main77601-20080iST16#198610-198708

RH

main77601-20080iST16#198508-198610

RH,COLD SPEC

main77602-20090iST16#198508-198610

LH

sub77602-20110

main77602-20110iST16#198610-198708

LH

main77602-20110iST16#198508-198610

LH,COLD SPEC

77617AUNION, AUXILIARY FUEL BAND

main77617-12010iST16#198508-198708

TYPE B

main90468-14004iST16#198508-198708

TYPE A

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-20040iST16#198508-198708

COLD SPEC

77652CUSHION, FUEL TANK, NO.1

main77651-20050iST16#198508-198708

9015950157

main90159-50157

9015950218

main90159-50218

9015960008

main90159-60008

9017905020

main90179-05020

9017910074

main90179-10074

9018906028

main90189-06028

9024008020

main90240-08020

9046055001

main90460-55001

9054106027

main90541-06027

9056105004

main90561-05004

9165140610

main91651-40610

9165140612

main91651-40612

9165140614

main91651-40614

9165561040

main91655-61040

9338515014

main93385-15014

9611210240

main96112-10240
