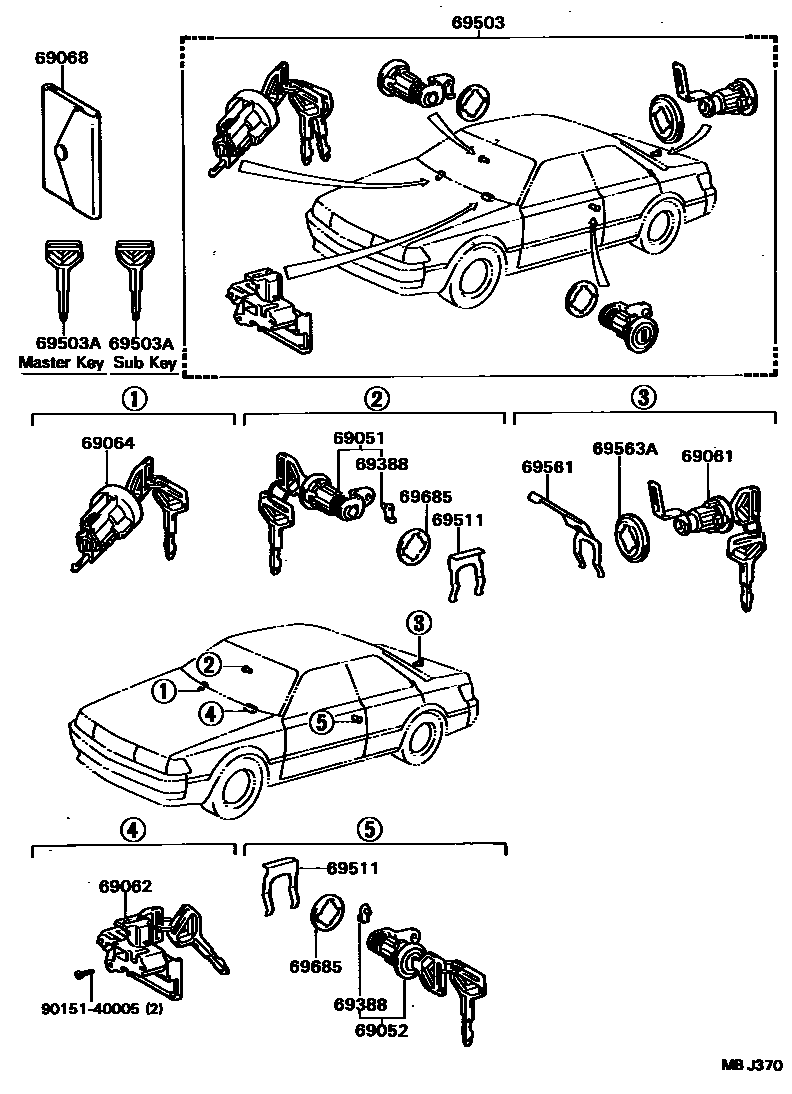

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-20110iST16#198508-198708

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-20120iST16#198508-198708

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-20160iST16#198508-198708

sub69055-20210

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-20060iST16#198508-198708

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20110iST16#..G,L,S198508-198708

W/O *PW

sub69057-20120

main69057-20120iST16#..F,G,X198508-198708

W/*PW

sub69057-32121

69068COVER SUB-ASSY, KEY

main69555-20010iST16#198508-198708

69388SNAP, ROD(FOR DOOR LOCK)

main69759-30040iST16#198508-198708

RH

main69759-30050iST16#198508-198708

LH

69503CYLINDER SET, LOCK

main69005-20190iST16#..F,G,S,X198508-198708

W/*PW

main69005-20200iST16#..G,L,S198508-198708

W/O *PW

69503AKEY, BLANK

main90999-00085iST16#198508-198708

main90999-00094iST16#198508-198708

main90999-00106iST16#198508-198708

sub90999-00212

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iST16#198508-198708

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-20060iST16#198508-198708

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-32010iST16#198508-198708

69685PAD, LOCK CYLINDER

main69513-32010iST16#198508-198708

9015140005

main90151-40005

14 parts on this diagram · 1 diagram in section
