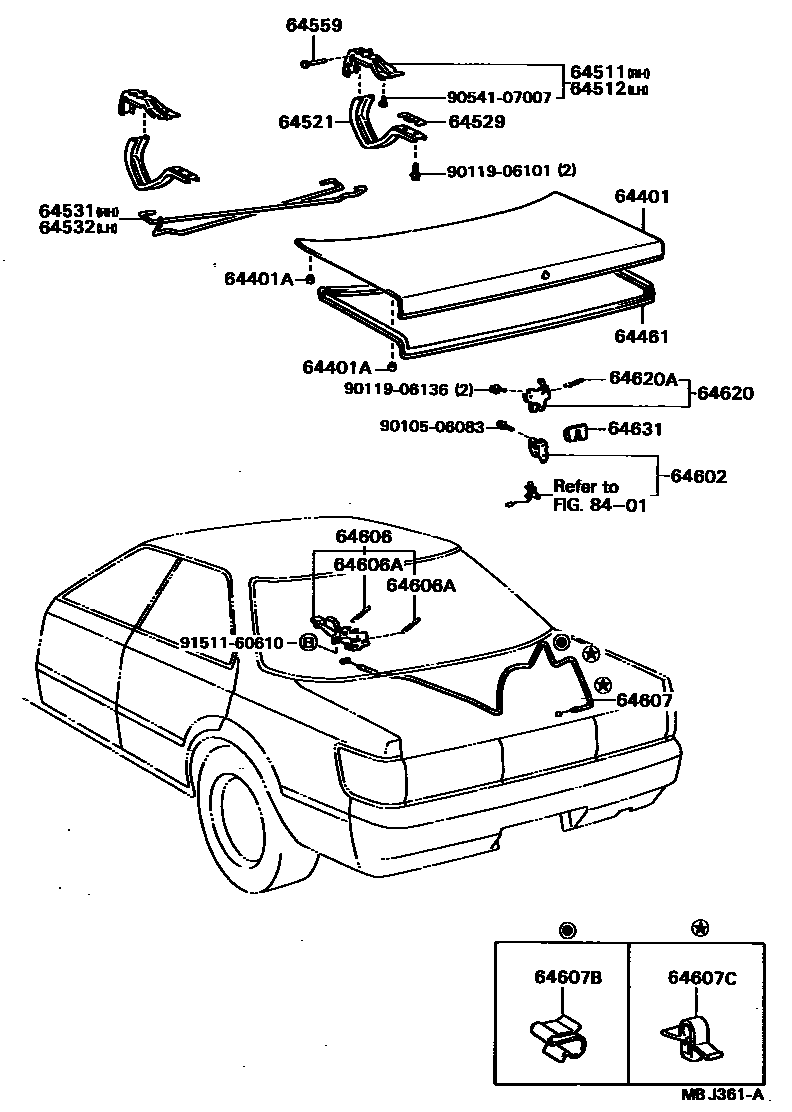

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-2B030i198508-198708

W/O SPOILER

main64401-2B040i198508-198708

W/SPOILER

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076i198508-198708

main90541-09043i198508-198708

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20210i198508-198606

main64461-20270i198606-198708

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-20100i198508-198708

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-20100i198508-198708

64521ARM, LUGGAGE COMPARTMENT DOOR HINGE

main64521-20110i198508-198708

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010i198508-198708

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-20160i198508-198708

W/O SPOILER

main64531-20170i198508-198708

W/SPOILER

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-20160i198508-198708

W/O SPOILER

main64532-20170i198508-198708

W/SPOILER

64559PIN, LUGGAGE DOOR HINGE

main64559-22010i198508-198708

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-20040i198508-198708

G-LIMITED

main64621-20050i198508-198708

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20070i198508-198708

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004i198508-198708

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20260i198508-198708

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90463-05005i198508-198708

64607CCLAMP, NO.3(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90959-01209i198508-198708

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20090i198508-198708

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001i198508-198708

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12010i198508-198708

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506083

main90105-06083

9011906101

main90119-06101

9011906136

main90119-06136

9054107007

main90541-07007

9151160610

main91511-60610

25 parts on this diagram · 1 diagram in section
