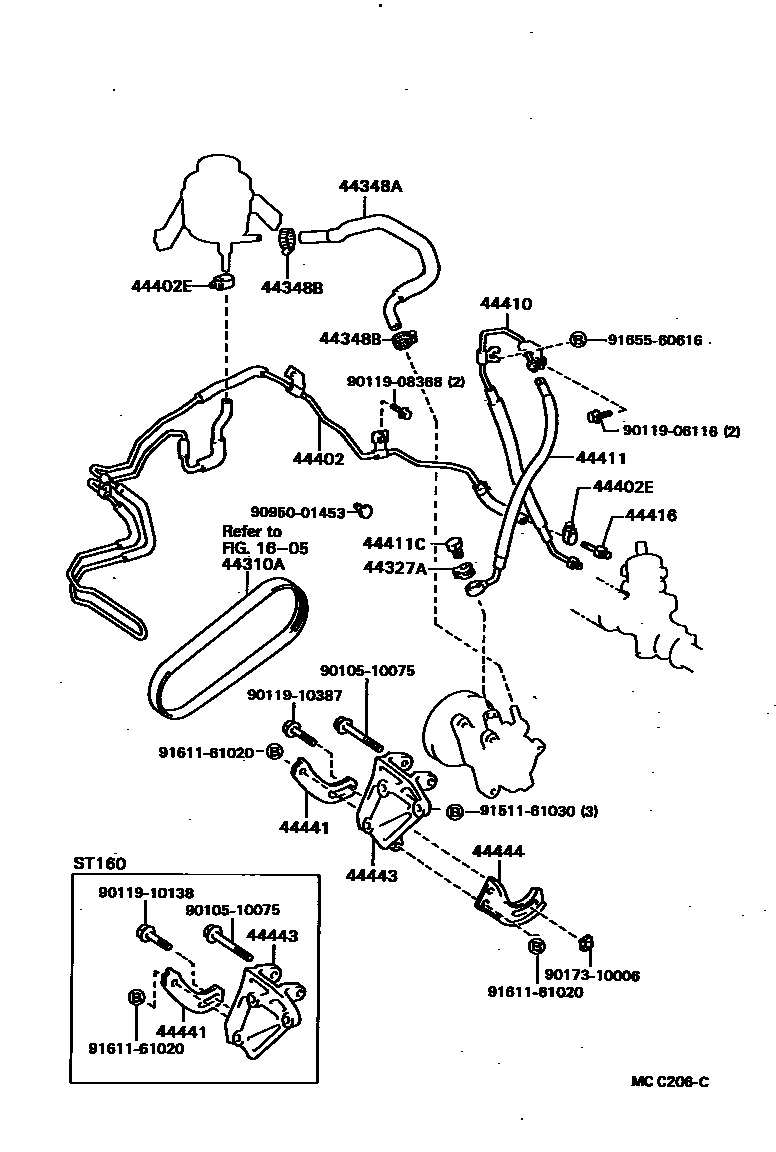

POWER STEERING TUBE

1605V-BELT

→ Go to FIG 16-05

44310ABELT, V(FOR VANE PUMP)

main99363-50760iST16#198508-198708

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iST16#198508-198708

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-20100iST16#..F,G,L198508-198708

main44348-20120iST160..S,X198508-198708

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001×2iST16#198508-198704

main90467-21005×2iST16#198704-198708

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-20100iST16#198508-198708

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001iST16#198508-198605

GEAR SIDE

main90467-16008iST16#198508-198605

RESERVOIR SIDE

44410TUBE ASSY, PRESSURE FEED

main44410-20250iST16#198508-198708

44411HOSE, PRESSURE FEED

main44411-20160iST16#..F,G,L198508-198708

main44411-20180iST160..S,X198508-198708

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iST16#198508-198708

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20110iST16#198508-198708

44441BRACKET, PUMP, FRONT

main44441-32010iST16#198508-198708

44443BRACKET, PUMP

main44443-20050iST162198508-198708

main44443-20060iST160198508-198708

44444STAY, PUMP, REAR

main44444-20030iST162198508-198708

9010510075

main90105-10075

9011906116

main90119-06116

9011908368

main90119-08368

9011910138

main90119-10138

9011910387

main90119-10387

9017310006

main90173-10006

9095001453

main90950-01453

9151161030

main91511-61030

9161161020

main91611-61020

9165560616

main91655-60616

24 parts on this diagram · 1 diagram in section
