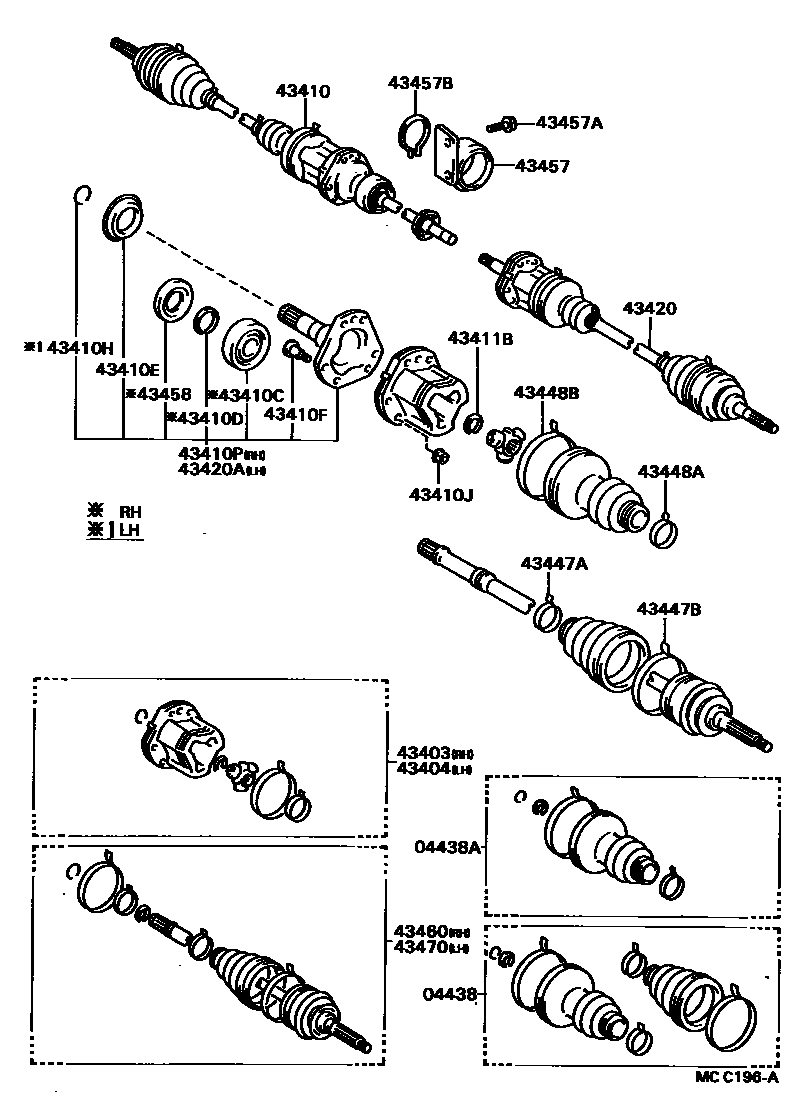

FRONT DRIVE SHAFT

0001 1 0002 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-12030iST160198508-198708

sub04438-12031

main04438-20010iST162198508-198708

sub04438-32050

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-32011iST160198508-198708

sub04438-12050

main04438-32040iST162198508-198708

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-39016iST160198508-198708

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-39016iST160198508-198708

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-20040iST160198508-198708

sub43410-20041

sub43525-20030

sub90179-22020

main43410-20060iST162..4FC198508-198708

sub43410-20061

main43410-20070iST162..5F198508-198708

sub43410-20071

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90369-36001iST16#198508-198708

sub90363-36001

43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)

main90520-33008iST16#198508-198708

43410ECOVER, DUST (FOR FRONT DRIVE SHAFT)

main41336-20011iST16#198508-198708

RH

sub41336-20050

main41336-32020iST16#198508-198708

43410FBOLT, SERRATION (FOR FRONT DRIVE SHAFT)

main90114-08006iST160198508-198708

43410HRING, HOLE SNAP (FOR FRONT DRIVE SHAFT)

main90521-27005iST16#198508-198708

43410JNUT (FOR FRONT DRIVE SHAFT)

main90179-08053iST160198508-198708

43410PSHAFT SUB-ASSY, FRONT DRIVE, RH

main43049-32020iST160198508-198708

sub43049-20050

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22005iST160198508-198708

main90520-25034iST162198508-198708

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-20020iST160198508-198708

sub43420-20021

sub43525-20030

sub90179-22020

main43420-20040iST162..4FC198508-198708

sub43420-20041

main43420-20050iST162..5F198508-198708

sub43420-20051

43420ASHAFT ASSY, FRONT DRIVE, LH

main41309-32010iST160198508-198708

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-14010iST160198508-198708

main90949-01108iST162198508-198708

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01076iST160198508-198708

sub42345-12160

main90949-01107iST162198508-198708

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14010iST160198508-198708

main90949-01108iST162198508-198708

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14020iST160198508-198708

main42346-22010iST162198508-198708

43457BRACKET, DRIVE SHAFT BEARING

main43457-20021iST16#198508-198708

sub43457-20022

sub90119-10461

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10051iST16#198508-198708

sub91512-81022

main90119-10461iST16#198608-198708

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iST16#198508-198708

43458COVER, FRONT DRIVE SHAFT DUST

main43458-20011iST16#198508-198708

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-29055iST160198508-198708

sub43470-29056

sub43525-20030

sub90179-22020

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-29055iST160198508-198708

sub43470-29056

sub43525-20030

sub90179-22020

25 parts on this diagram · 2 diagrams in section
