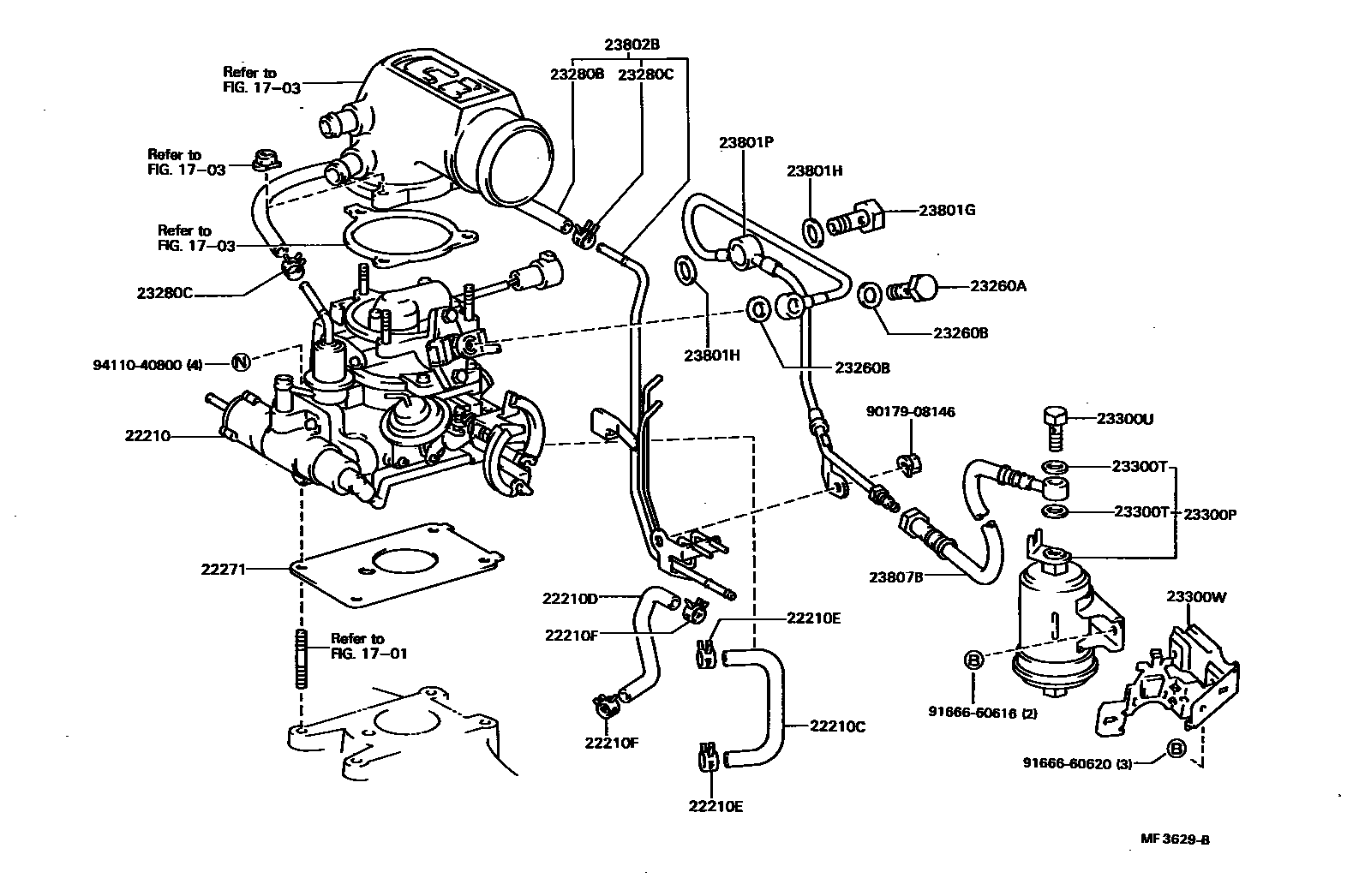

FUEL INJECTION SYSTEM
1701MANIFOLD
1703AIR CLEANER
22210BODY ASSY, THROTTLE
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22271GASKET, THROTTLE BODY
23260INJECTOR ASSY, COLD START FUEL
23280REGULATOR ASSY, FUEL PRESSURE
23280BHOSE, FUEL PRESSURE REGULATOR RETURN
23280CCLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23300WBRACKET, FUEL FILTER
23801GBOLT, UNION(FOR FUEL PIPE)
*54
*53
23801HGASKET(FOR FUEL PIPE)
*54
*53
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
*53
*54
23807BHOSE, FUEL DELIVERY PIPE
*53
*54
9017908146
main90179-08146
9166660616
main91666-60616
9166660620
main91666-60620
9411040800
main94110-40800
28 parts on this diagram · 5 diagrams in section
