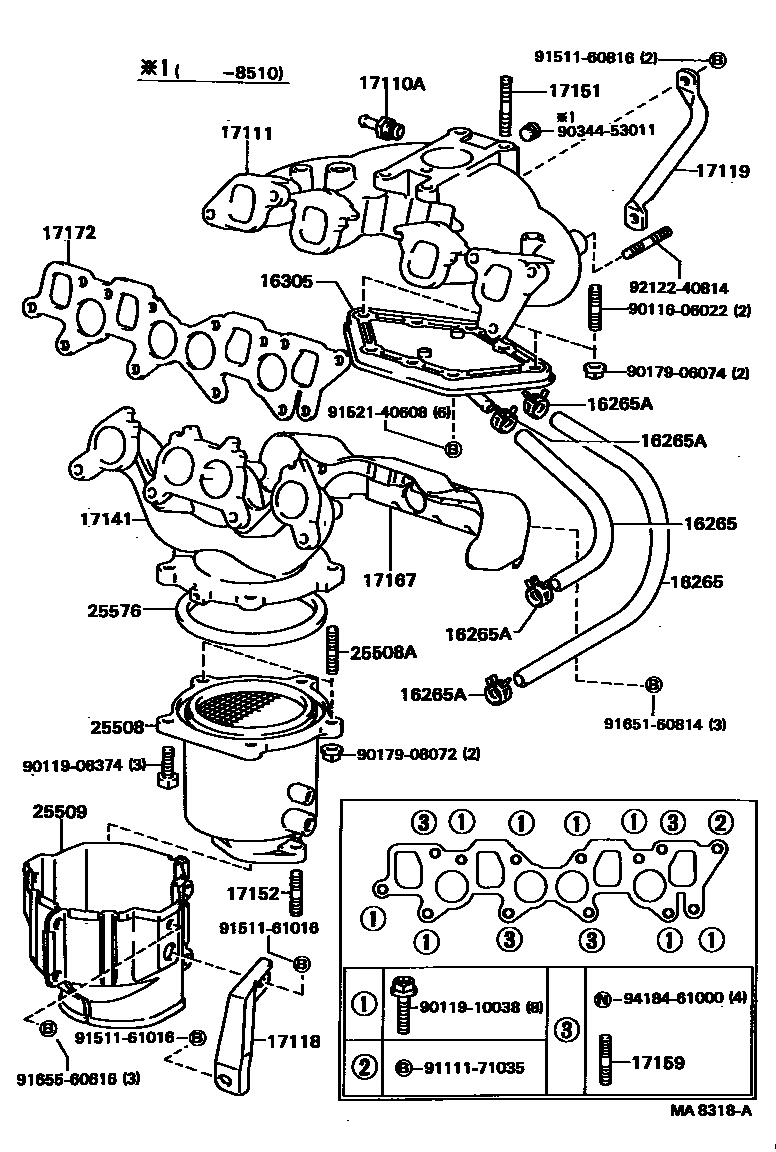

MANIFOLD
16265HOSE, INTAKE MANIFOLD WATER
16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
16305OUTLET SUB-ASSY, WATER BY-PASS
17110AUNION, VACUUM HOSE
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
L=32,S=12&12
L=44,S=12&12
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD SIDE
EXHAUST MANIFOLD SIDE
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
*54
17172GASKET, MANIFOLD TO CYLINDER HEAD
25508CONVERTER SUB-ASSY, MANIFOLD
25508ABOLT, STUD(FOR MANIFOLD CONVERTER)
25509INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25576GASKET, MANIFOLD CONVERTER
9011606022
main90116-06022
9011908374
main90119-08374
9011910038
main90119-10038
9017906074
main90179-06074
9017908072
main90179-08072
9034453011
main90344-53011
9111171035
main91111-71035
9151160816
main91511-60816
9151161016
main91511-61016
9152140608
main91521-40608
9165160814
main91651-60814
9165560616
main91655-60616
9212240814
main92122-40814
9418461000
main94184-61000
31 parts on this diagram · 3 diagrams in section
