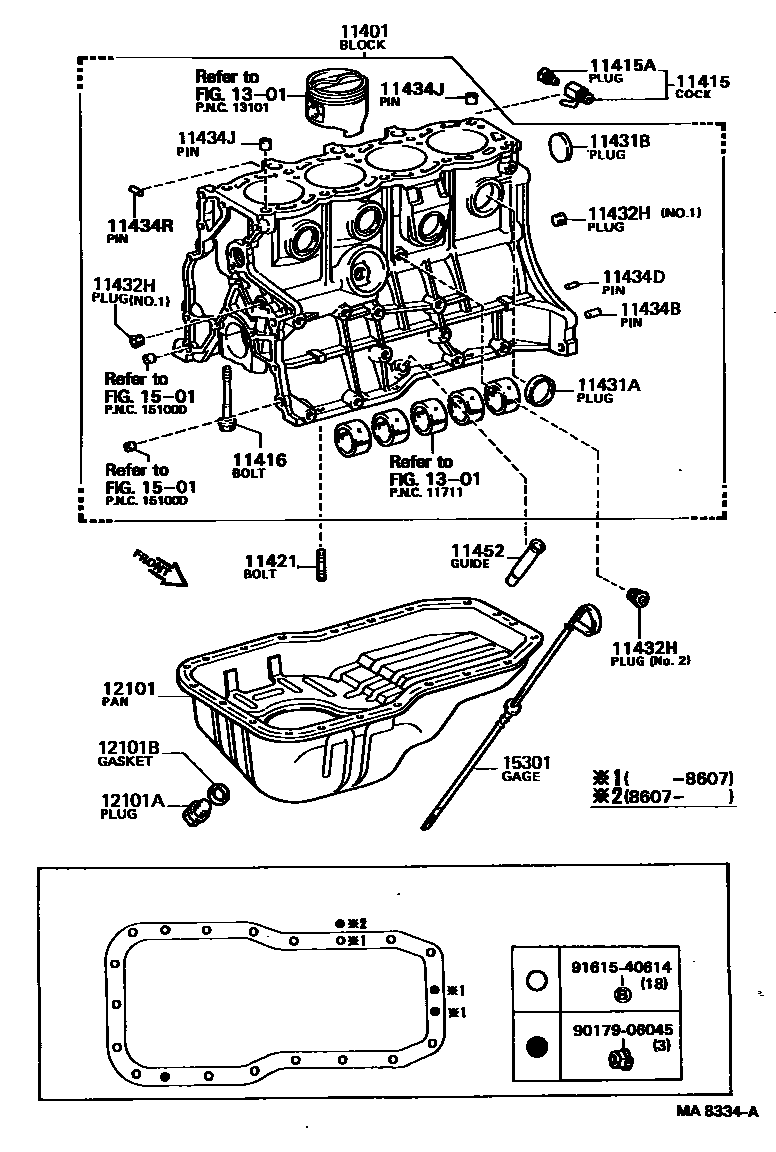

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
*54
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
*53
*54
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*10-1.25PX67-18
11421BOLT, STUD(FOR OIL PAN)
*54
*53
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
OD=35
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
OD=40
11432HPLUG, W/HEAD TAPER SCREW, NO.5
NO.2
NO.1
*53
*54
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434RPIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
11452GUIDE, OIL LEVEL GAGE
12101APLUG(FOR OIL PAN DRAIN)
sub90033-41020
12101BGASKET(FOR OIL PAN DRAIN PLUG)
sub90430-18023
1301
1501
9017906045
main90179-06045
9161540614
main91615-40614
21 parts on this diagram · 2 diagrams in section
