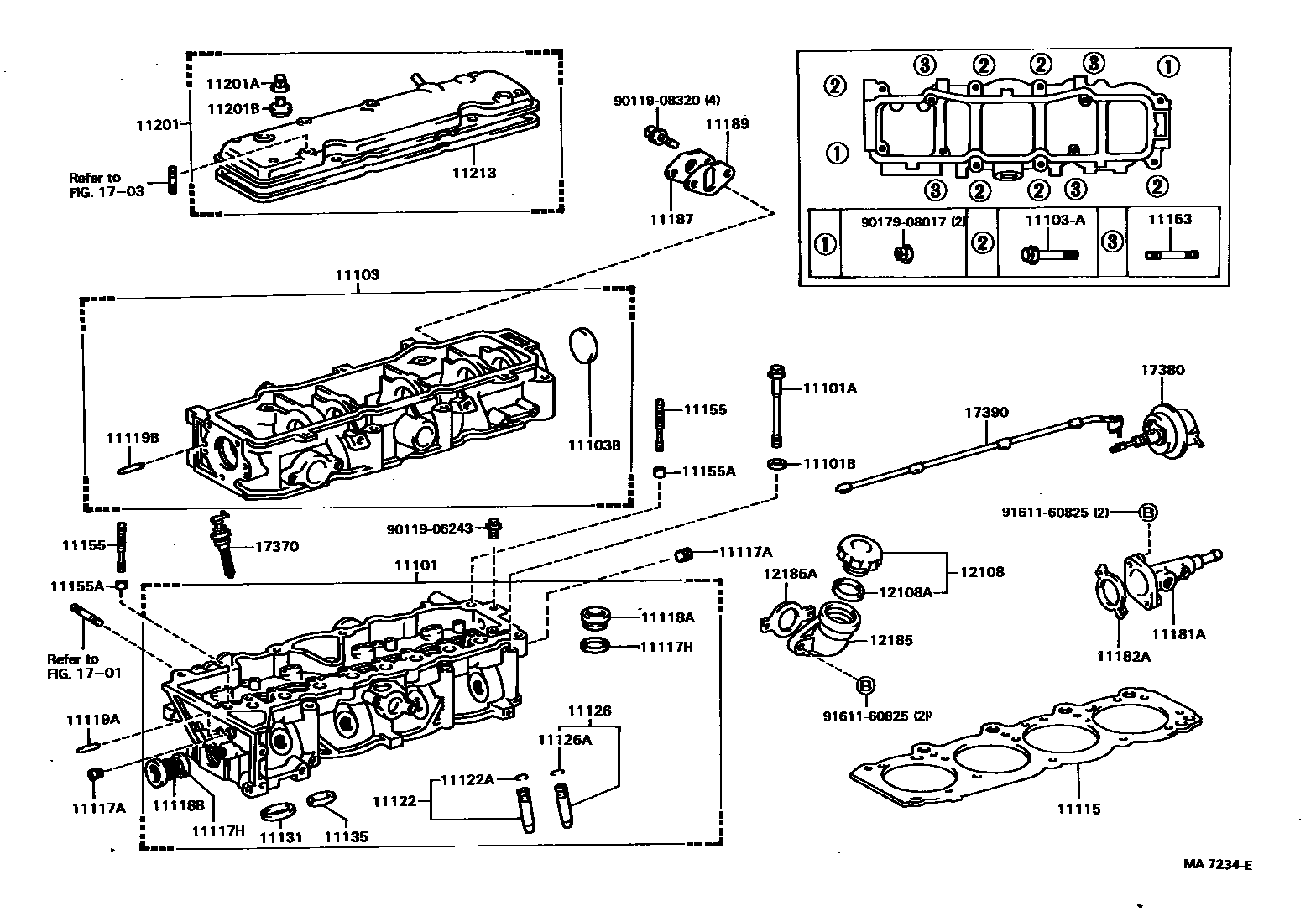

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
*54
*53
11103HOUSING SUB-ASSY, CAMSHAFT
11103ABOLT(FOR CAMSHAFT HOUSING SET)
11103BPLUG, TIGHT, NO.1(FOR CAM HOUSING)
11117HGASKET(FOR WATER HOLE)
PNC 11118A
PNC 11118B
11118APLUG, STRAIGHT, NO.1
NO.1,*53
*54
NO.2,*53
11118BPLUG, STRAIGHT, NO.2
11119APIN, STRAIGHT, NO.1
11119BPIN, STRAIGHT, NO.2
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
11153BOLT, STUD(FOR CAMSHAFT HOUSING TO CYLINDER HEAD COVER)
11155BOLT, STUD(FOR HEAD TO CAMSHAFT HOUSING)
11155APIN, RING W/HEAD
11181ACOVER, CYLINDER HEAD, REAR
11182AGASKET, CYLINDER HEAD REAR COVER
sub16341-63011
11187COVER, CAMSHAFT HOUSING, REAR
11189GASKET, CAMSHAFT HOUSING REAR COVER
sub11117-63011
11201COVER SUB-ASSY, CYLINDER HEAD
LH,*54
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
12108AGASKET(FOR OIL FILLER CAP)
12185HOUSING, OIL FILLER CAP
12185AGASKET, OIL FILLER CAP HOUSING
sub16341-63011
1701
1703
17370VALVE ASSY, SWIRL CONTROL
17380ACTUATOR ASSY, SWIRL CONTROL
sub17380-63010
17390LINK ASSY, SWIRL CONTROL
9011906243
main90119-06243
9011908320
main90119-08320
9017908017
main90179-08017
9161160825
main91611-60825
43 parts on this diagram · 3 diagrams in section
