STANDARD TOOL

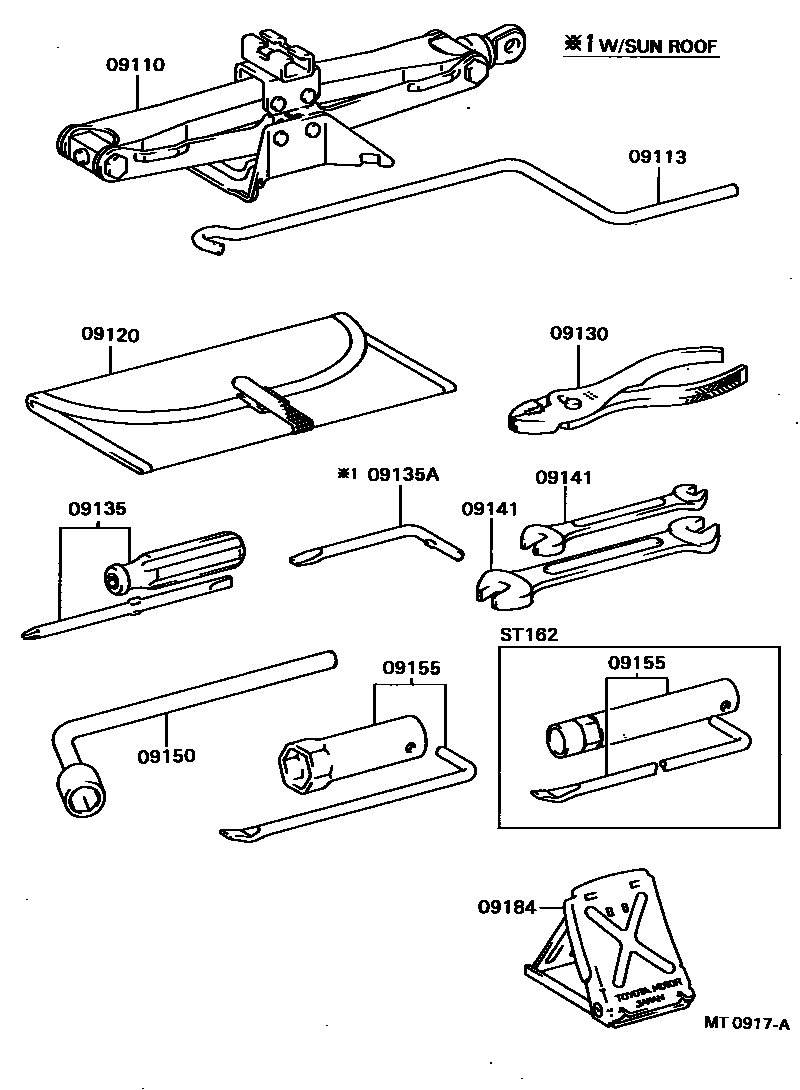

Parts diagram

09110JACK ASSY

main09111-20060i198508-198708

09113HANDLE, JACK

main09113-20030i198508-198708

09120BAG, TOOL

main09120-10030i198508-198708

09130PLIERS

main99913-11500i198508-198708

09135DRIVER, SCREW

main99915-10700i198508-198708

09135ABIT, SCREW DRIVER

main09135-00012i198508-198708

W/SUN ROOF

09141SPANNER

main99914-10810i198508-198708

main99914-11214i198508-198708

09150WRENCH, HUB NUT BOX

main09150-26010i198508-198708

09155WRENCH, SPARK PLUG

main09155-32010i198508-198708

main09155-41020i198508-198708

09184STOPPER, WHEEL

main09184-00010i198508-198708

10 parts on this diagram · 1 diagram in section
