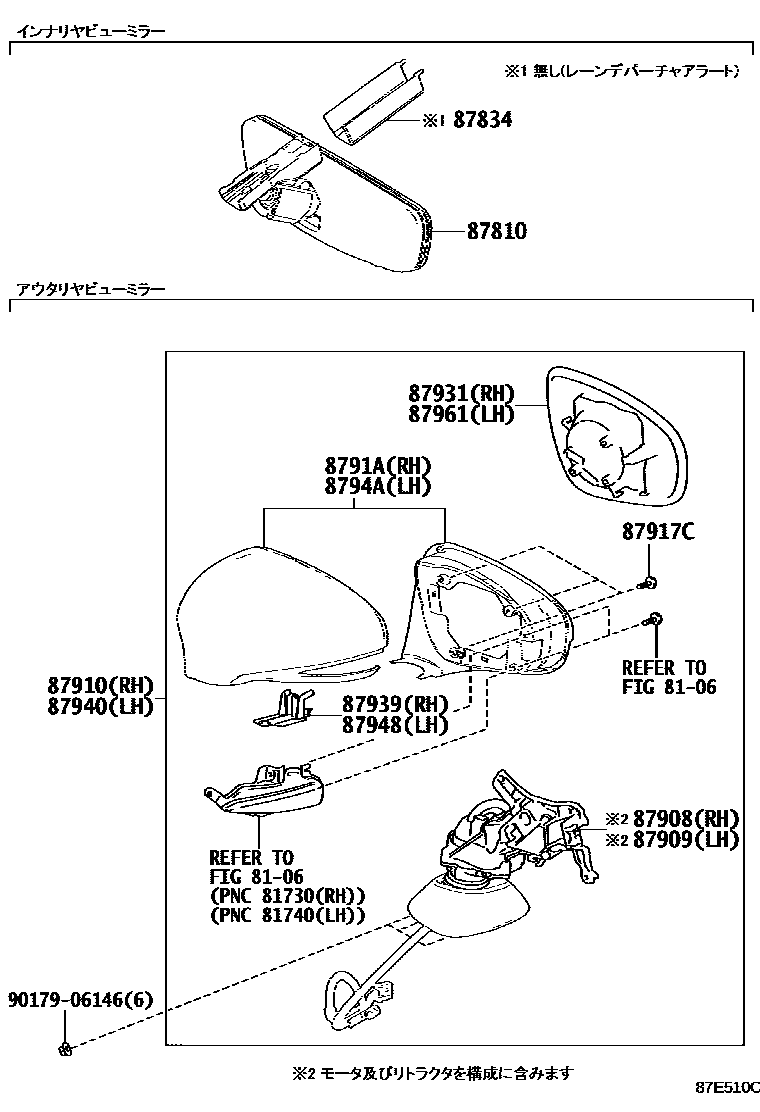

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87908ACTUATOR ASSY, OUTER MIRROR, RH
MARCURY GRAY MC.MATT,1K7
GRAPHITE BLACK GF.,083 ,223
87909ACTUATOR ASSY, OUTER MIRROR, LH
MARCURY GRAY MC.MATT,1K7
WHITE NOVA GF.,083
SONIC CHROME,1L1
TITANIUM CARBIDE GRAY,1L8
GRAPHITE BLACK GF.,083 ,223
RADIANT RED CONTRAST LAYE,3T5
NAPLES YELLOW CONTRAST LA,5C1
HEAT BLUE CONTRAST LAYERI,8X1
87910MIRROR ASSY, OUTER REAR VIEW, RH
WHITE NOVA GF.,083 ,223
GRAPHITE BLACK GF.,083 ,1L1 ,1L2 ,1L8 ,223 ,3T5 ,8X1
NAPLES YELLOW CONTRAST LA,5C1
GRAPHITE BLACK GF.,083 ,1L1 ,1L2 ,1L8 ,223 ,3T5 ,8X1
87917CSCREW, OUTER MIRROR
8791ACOVER, OUTER MIRROR, RH NO.2
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
MARCURY GRAY MC.MATT,1K7
RADIANT RED CONTRAST LAYE,3T5
NAPLES YELLOW,5C1
HEAT BLUE CONTRAST LAYERI,8X1
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
SONIC SILVER,1J2
BLACK,212
RED,3T5
ORANGE,4W7
NAPLES YELLOW,5C1
BLUE,8X1
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
WHITE NOVA GF.,083 ,223
SONIC CHROME,1L1
GRAPHITE BLACK GF.,083 ,1L1 ,1L2 ,1L8 ,223 ,3T5 ,8X1
RADIANT RED CONTRAST LAYE,3T5
NAPLES YELLOW CONTRAST LA,5C1
HEAT BLUE CONTRAST LAYERI,8X1
GRAPHITE BLACK GF.,083 ,1L1 ,1L2 ,1L8 ,223 ,3T5 ,8X1
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
MARCURY GRAY MC.MATT,1K7
SONIC CHROME,1L1
TITANIUM CARBIDE GRAY,1L8
RADIANT RED CONTRAST LAYE,3T5
NAPLES YELLOW,5C1
HEAT BLUE CONTRAST LAYERI,8X1
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
SONIC SILVER,1J2
BLACK,212
RED,3T5
ORANGE,4W7
NAPLES YELLOW,5C1
BLUE,8X1
87961MIRROR OUTER, LH
9017906146
main90179-06146
15 parts on this diagram · 2 diagrams in section
