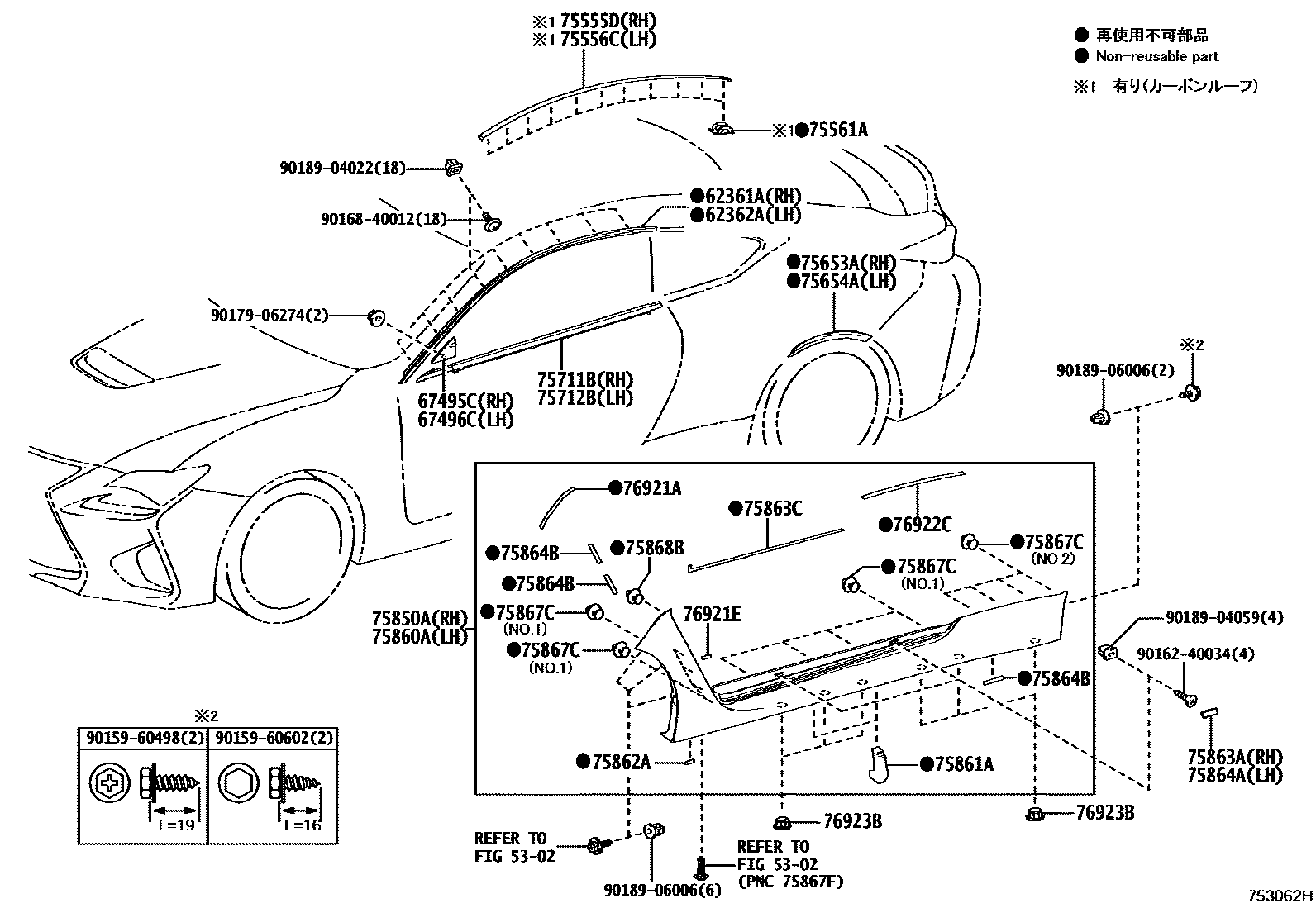

SIDE MOULDING
5302
62361ARETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH
62362ARETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75653AMOULDING, QUARTER, OUTSIDE REAR RH
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
MARCURY GRAY MC.MATT,1K7
BLACK,212
GRAPHITE BLACK GF.,223
RED,3T5
ORANGE,4W7
NAPLES YELLOW,5C1
BLUE,8X1
75654AMOULDING, QUARTER, OUTSIDE REAR LH
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
MARCURY GRAY MC.MATT,1K7
BLACK,212
GRAPHITE BLACK GF.,223
RED,3T5
ORANGE,4W7
NAPLES YELLOW,5C1
BLUE,8X1
75711BMOULDING, FRONT DOOR BELT, RH
75712BMOULDING, FRONT DOOR BELT, LH
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
MARCURY GRAY MC.MATT,1K7
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED,3T5
ORANGE,4W7
NAPLES YELLOW,5C1
BLUE,8X1
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
SONIC CHROME,1L1
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
NAPLES YELLOW CONTRAST LA,5C1
HEAT BLUE CONTRAST LAYERI,8X1
WHITE NOVA GF.,083
SONIC CHROME,1L1
TITANIUM CARBIDE GRAY,1L8
SONIC IRIDIUM,1L2
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
HEAT BLUE CONTRAST LAYERI,8X1
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
MARCURY GRAY MC.MATT,1K7
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED,3T5
ORANGE,4W7
NAPLES YELLOW,5C1
BLUE,8X1
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
SONIC CHROME,1L1
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
NAPLES YELLOW CONTRAST LA,5C1
HEAT BLUE CONTRAST LAYERI,8X1
WHITE NOVA GF.,083
SONIC CHROME,1L1
TITANIUM CARBIDE GRAY,1L8
SONIC IRIDIUM,1L2
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
HEAT BLUE CONTRAST LAYERI,8X1
75861APROTECTOR, ROCKER PANEL MOULDING, NO.1
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
75863ACOVER, ROCKER PANEL MOULDING END, REAR RH
75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3
75864ACOVER, ROCKER PANEL MOULDING END, REAR LH
75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4
75867CCLIP, ROCKER PANEL MOULDING
75868BCLIP, ROCKER PANEL MOULDING, NO.2
76922CPROTECTOR, SIDE MUDGUARD, NO.2
76923BRETAINER, SIDE MUDGUARD
9015960498
main90159-60498
9015960602
main90159-60602
9016240034
main90162-40034
9016840012
main90168-40012
9017906274
main90179-06274
9018904022
main90189-04022
9018904059
main90189-04059
9018906006
main90189-06006
34 parts on this diagram · 5 diagrams in section
