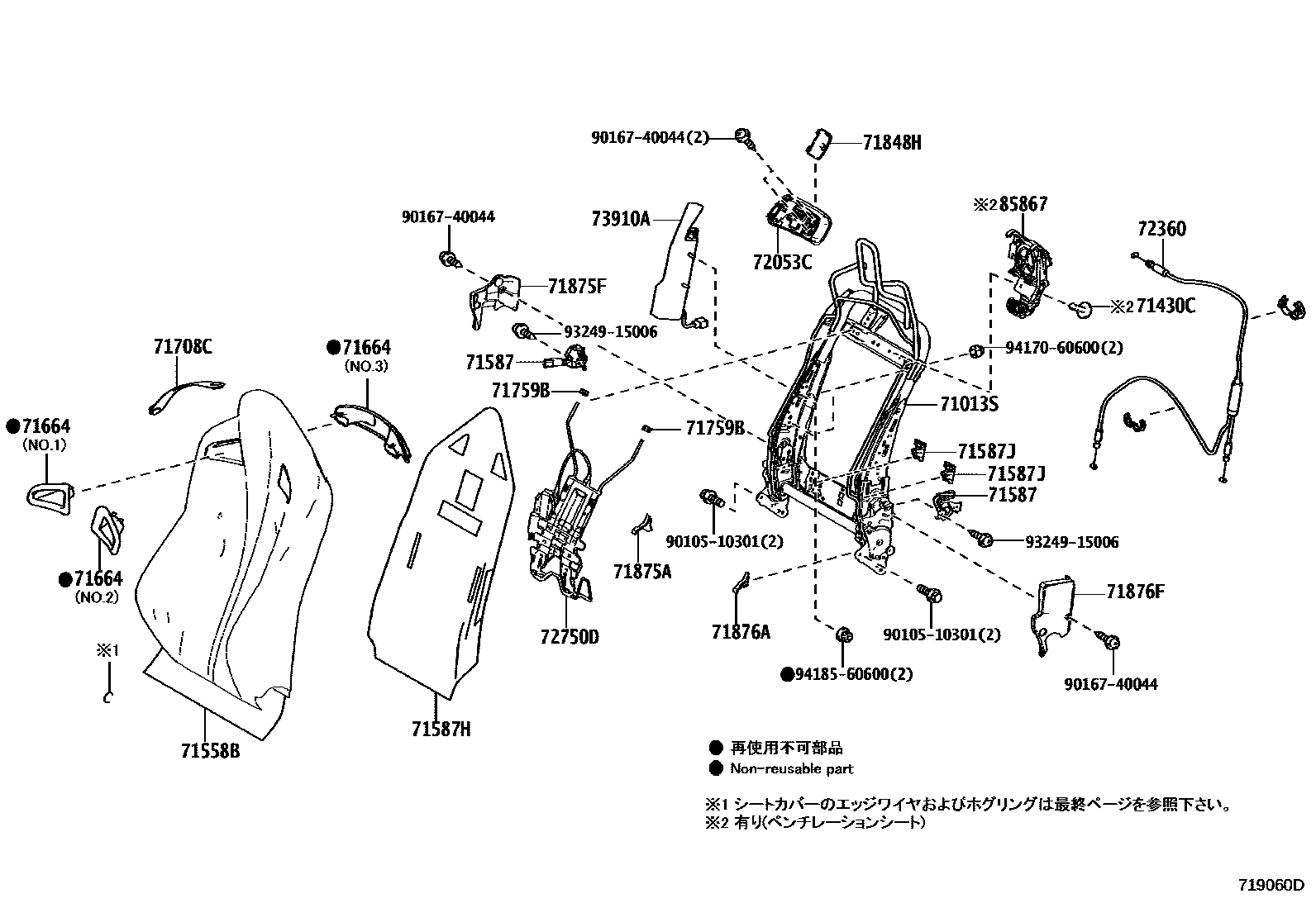

FRONT SEAT & SEAT TRACK

0001 1������(�������) 0002 1������(��������) 0003 1�������(�������) 0004 1�������(��������) 0005 1�������������� & �������

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-24140iUSC10201409-201704

main71013-24141iUSC10201705-201902

main71013-24160iUSC10201903

71430CCLIP

main90467-08186-C0×2supersedes 90467-08188iUSC10201409-201610

71558BPAD, FRONT SEATBACK W/COVER, RH

main71401-24161-42iUSC10201903-202501

BLACK/WHITE/ECRU,TRIM0#

main71401-24161-43iUSC10201903-202501

BLACK/RED/RED,TRIM3#

main71401-24161-44iUSC10201903-202501

BLACK/BLACK/ECRU,TRIM2#

main71401-24230-C0iUSC10202501

BLACK,TRIM3#

main71401-24160-22iUSC10201409-201805

main71401-24160-23supersedes 71401-24180-C4iUSC10201409-201805

main71401-24160-24iUSC10201805-201902

main71401-24160-25supersedes 71401-24180-C5iUSC10201805-201902

main71401-24160-A3iUSC10201409-201805

main71401-24160-A4iUSC10201805-201902

main71401-24160-D2iUSC10201409-201805

main71401-24160-D3iUSC10201805-201902

main71401-24160-J0iUSC10201805-201902

main71401-24260-C0iUSC10202111-202501

main71401-24260-D2iUSC10201903-202111

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-24050iUSC10201409-201902

main71587-24060iUSC10201903

71587HPROTECTOR, FRONT SEATBACK EDGE

main71587-30060×2iUSC10201409-201902

71587JPROTECTOR, FRONT SEATBACK EDGE

main71587-52030×4iUSC10201409-201902

71664GUIDE, SEAT BELT

main73187-24060-B0×2iUSC10201409-201902

main73187-24070-B0×2iUSC10201903

main73187-24080-B0×2iUSC10201409-201902

71708CSTRAP SUB-ASSY, SEAT COVER, RH

main71788-24010-C2iUSC10201409-201902

main71788-24010-C4iUSC10201903-202501

BLACK,TRIM0#,2#,3#

main71788-24010-A1iUSC10201409-201902

main71788-24010-D1supersedes 71788-24010-D3iUSC10201409-201902

71759BHOOK, FRONT SEATBACK

main71759-47011×4iUSC10201903

71848HCAP, RECLINING REMOTE CONTROL, RH

main71848-24020-C0iUSC10201409-201902

BLACK,TRIM0#,2#,3#,4#,8#

main71848-24020-D0iUSC10202501

RED,TRIM3#

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-24090-C0×2iUSC10201409-201902

BLACK,TRIM0#,2#,3#,4#,8#

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-24100iUSC10201409-201902

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-24040-C0×2iUSC10201409-201902

BLACK,TRIM0#,2#,3#,4#,8#

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71876-24050iUSC10201409-201902

72053CLEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH

main72053-24020-C0iUSC10202111-202501

BLACK,TRIM0#,2#,3#,8#

main72053-24020-D0iUSC10202501

RED,TRIM3#

72360CABLE ASSY, RECLINING ADJUSTER EQUALIZING

main72360-24010×2iUSC10201409-201902

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-76010iUSC10201409-201902

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-24040iUSC10201409-201410

main73910-53030iUSC10201411-201902

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-53020

main85867-53030

9010510301

main90105-10301

9016740044

main90167-40044

9324915006

main93249-15006

9417060600

main94170-60600

9418560600

main94185-60600

24 parts on this diagram · 5 diagrams in section
